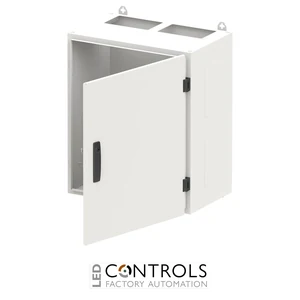

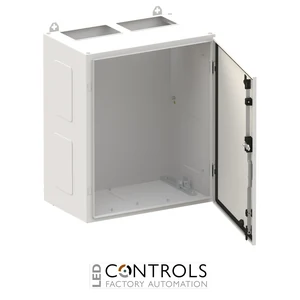

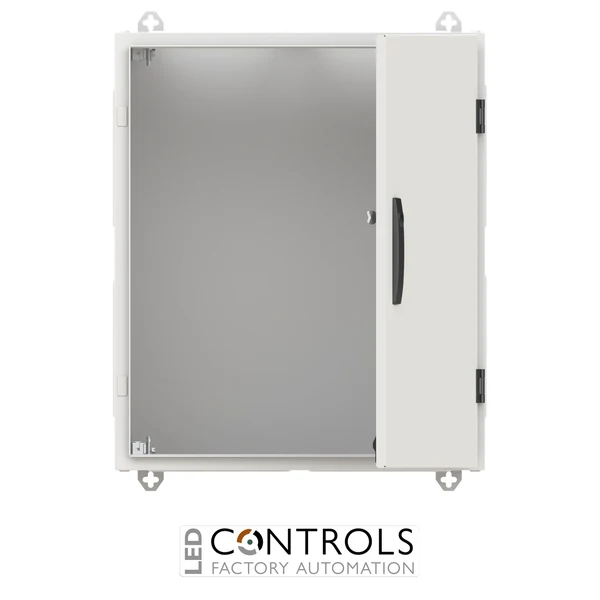

Why Choose the ABB TW204G TwinLine IP55 Wall-Mounting Enclosure?
The ABB TW204G is a robust IP55 wall-mounting electrical enclosure designed for indoor low-voltage distribution and switchgear applications. As part of the ABB TwinLine-W enclosure series, it provides a flexible platform for constructing professional sub-distribution assemblies using compatible ABB installation systems and components.
The TW204G features durable sheet-steel construction with a powder-coated RAL 7035 finish, Class I earthed protection and an IK08 impact resistance rating. Its single-leaf sheet-steel door opens through 180° and can be hinged on either the right or left, while the standard 3 mm double-bit locking system provides practical access control.
With external dimensions of 650 mm high × 550 mm wide × 350 mm deep, the TW204G provides 4 grid units, two panel widths and 96 space units. Its 350 mm-deep TwinLine-W format provides useful installation space for compatible ABB metering fields, distribution fields, combination sets, CombiLine modules and mounting plates.
Key Advantages
- Robust IP55 wall-mounting enclosure for indoor electrical distribution applications.
- 650 × 550 × 350 mm external dimensions with 299 mm installation depth.
- Durable sheet-steel construction with RAL 7035 powder-coated finish.
- Class I earthed construction for professional low-voltage assemblies.
- IK08 impact resistance for dependable mechanical protection.
- 96 space units provide flexible capacity for compatible distribution equipment.
Key Features
- ABB TwinLine-W wall-mounting enclosure series.
- IP55 degree of protection.
- 650 mm height, 550 mm width and 350 mm depth.
- 299 mm installation depth.
- 4 grid units and two panel widths.
- 96 space units for compatible distribution equipment.
- Single-leaf sheet-steel door with 180° opening angle.
- Door hinging configurable on the right or left.
- Standard 3 mm double-bit lock with rod locking mechanism.
- Prepared for compatible ABB EDF and WR mounting-frame configurations.
Flexible Protection for Low-Voltage Distribution Equipment
Wall-mounted electrical enclosures provide the protected mechanical structure required for assembling low-voltage distribution equipment. The ABB TW204G combines IP55 environmental protection, IK08 mechanical resistance and a 350 mm cabinet depth, making it suitable for commercial and industrial sub-distribution systems requiring useful internal installation space in a compact wall-mounted format.
The TwinLine-W system supports flexible electrical distribution configurations. The TW204G is prepared for compatible metering and distribution fields, combination sets, CombiLine modules and mounting plates using suitable ABB EDF or WR mounting-frame arrangements, providing a versatile platform for panel builders and electrical contractors.
Typical Applications
- Commercial low-voltage sub-distribution systems.
- Industrial electrical distribution installations.
- Building-services distribution boards.
- Metering and distribution assemblies.
- ABB CombiLine-based switchgear configurations.
- Panel building and indoor electrical control installations.
