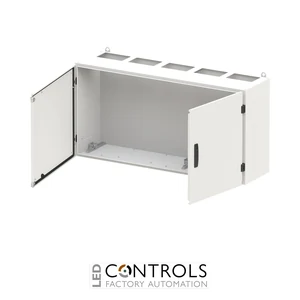

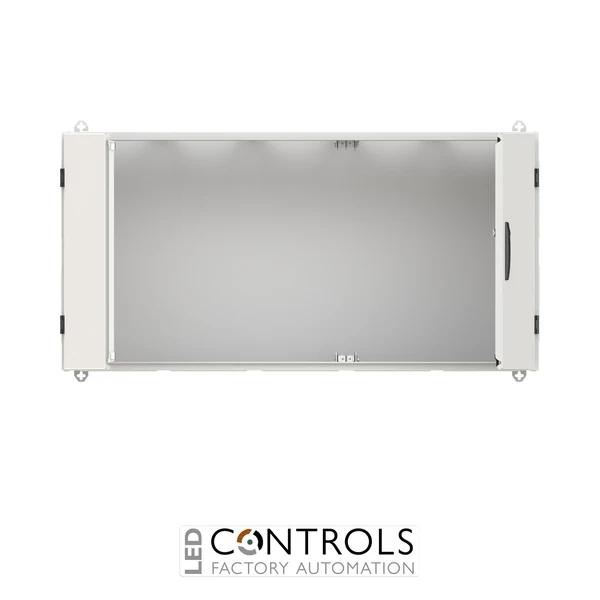

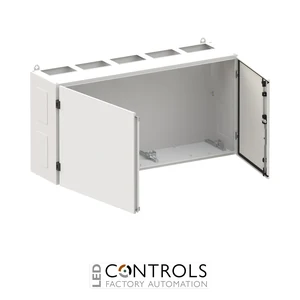

Why Choose the ABB TW504G IP55 TwinLine Wall-Mounted Enclosure?
The ABB TW504G is a robust IP55 TwinLine wall-mounted sub-distribution enclosure designed to house electrical distribution, protection and control equipment in professional low-voltage installations. As part of the ABB TwinLine-W enclosure range, it combines a wide cabinet format with increased depth for structured commercial and industrial electrical assemblies.
This enclosure is supplied with doors and provides Protection Class I construction together with an IP55 protection rating. The TwinLine-W system is designed to accommodate EDF and WR mounting frames and mounting plates, providing a flexible platform for configuring electrical distribution equipment.
The TW504G measures 1300 mm wide × 650 mm high × 350 mm deep and provides 240 space units across five field widths. ABB order code 2CPX010144R9999 identifies this specific TwinLine-W enclosure within the DESUJ Sub Distribution product group.
Key Advantages
- Robust IP55 wall-mounted enclosure for sub-distribution applications.
- Wide 1300 mm × 650 mm cabinet format for substantial electrical assemblies.
- 350 mm enclosure depth provides generous installation space.
- 240 space units support extensive modular equipment layouts.
- Protection Class I construction for professional electrical installations.
- Part of ABB’s flexible TwinLine-W sub-distribution enclosure system.
Key Features
- ABB TwinLine-W TW504G enclosure.
- IP55 protection rating.
- 650 mm enclosure height.
- 1300 mm enclosure width.
- 350 mm enclosure depth.
- 240 space units.
- Five field widths for structured equipment installation.
- Wall-mounted enclosure supplied with doors.
- Designed for EDF and WR mounting frames and mounting plates.
- External mounting brackets and internal mounting rails form part of the TwinLine-W enclosure system.
Reliable Housing for Electrical Distribution Systems
Wall-mounted sub-distribution enclosures such as the ABB TW504G provide a protected and structured installation space for electrical switching, protection and distribution equipment. Its IP55 construction helps protect installed components against dust and water ingress, while the 350 mm cabinet depth provides useful space for larger or more complex electrical assemblies.
The ABB TwinLine-W system supports professional panel construction using EDF and WR mounting frames and mounting plates. The TW504G’s five-field-width format and 240 space units make it particularly suitable for substantial wall-mounted distribution systems where installation capacity, accessibility and dependable enclosure protection are important.
Typical Applications
- Commercial and industrial sub-distribution boards.
- Low-voltage electrical distribution assemblies.
- Building services electrical systems.
- Industrial control and protection installations.
- Modular switchgear and protective-device installations.
- Infrastructure and facility electrical distribution systems.
