Why Choose the ABB TW106G IP55 TwinLine Wall-Mounted Enclosure?
The ABB TW106G is a robust IP55 TwinLine-W wall-mounted sub-distribution enclosure designed to house electrical distribution, metering, protection and control equipment. Its narrow 300 mm cabinet width makes it particularly suitable for installations where wall space is limited while the 350 mm depth provides useful internal capacity for professional low-voltage assemblies.

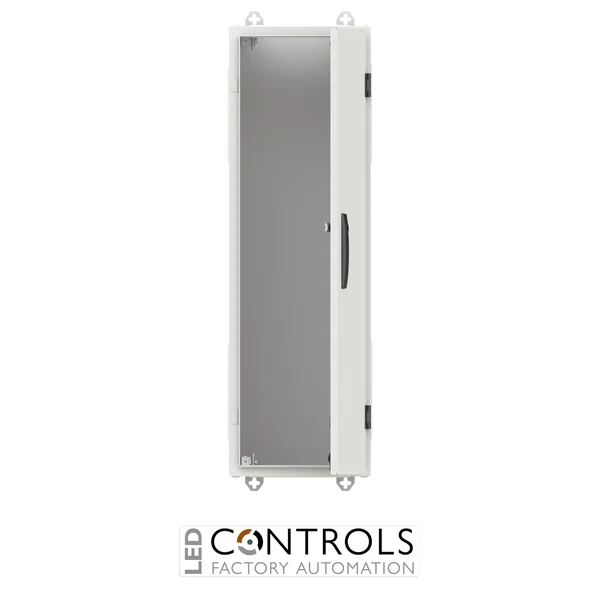

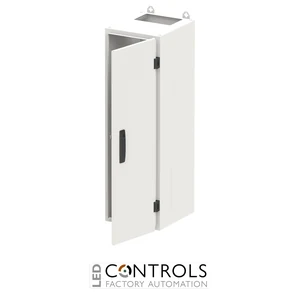

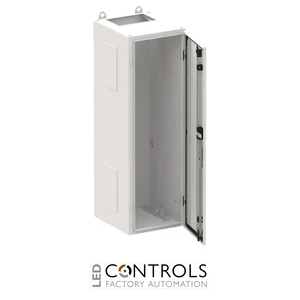

Manufactured from sheet steel with a powder-coated RAL 7035 finish, the TW106G features a single sheet-steel door that can be hinged on the right or left and opened through 180°. The enclosure provides IP55 ingress protection, IK08 impact resistance and Class I earthed protection, supporting dependable indoor electrical installations.
The TW106G measures 300 mm wide × 950 mm high × 350 mm deep and provides 72 space units in a single field width. ABB order code 2CPX010145R9999 identifies this specific TwinLine-W enclosure within the DESUJ Sub Distribution product group.
Key Advantages
- Robust IP55 wall-mounted enclosure for sub-distribution applications.
- Narrow 300 mm cabinet width for installations with restricted wall space.
- 350 mm enclosure depth provides practical internal installation capacity.
- 72 space units for structured modular electrical equipment.
- IK08 impact resistance and Class I earthed protection for dependable installations.
- Part of ABB’s flexible TwinLine-W sub-distribution enclosure system.
Key Features
- ABB TwinLine-W TW106G wall-mounted enclosure.
- IP55 protection rating.
- IK08 impact resistance.
- Class I earthed protection.
- 950 mm enclosure height.
- 300 mm enclosure width.
- 350 mm enclosure depth.
- 72 space units with one field width and six grid units.
- Sheet-steel enclosure with RAL 7035 powder-coated finish.
- Single sheet-steel door with selectable right- or left-hand hinging.
- 180° door opening angle for convenient installation access.
- Prepared for metering fields, distribution fields, Combi-Sets, CombiLine modules and mounting plates.
Reliable Housing for Electrical Distribution Systems
Wall-mounted sub-distribution enclosures such as the ABB TW106G provide a protected installation space for low-voltage switching, metering, protection and distribution equipment. Its IP55 enclosure protection, IK08 impact resistance and Class I earthed construction help safeguard installed components while supporting reliable indoor electrical installations.
The ABB TwinLine-W system provides a flexible platform for structured distribution assemblies. The TW106G is prepared for installation with metering fields, distribution fields, Combi-Sets, CombiLine modules or mounting plates on EDF/WR mounting frames, making the enclosure adaptable to a variety of professional distribution configurations.
Typical Applications
- Commercial and industrial sub-distribution boards.
- Low-voltage electrical distribution assemblies.
- Metering and distribution installations.
- Building services electrical systems.
- Industrial control and protection installations.
- Compact wall-mounted CombiLine distribution systems.
