Why Choose the ABB TW306G TwinLine-W Wall-Mounted Cabinet?

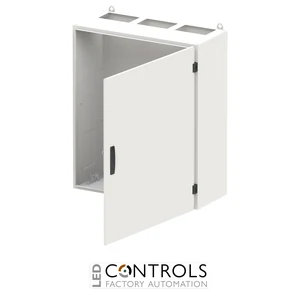

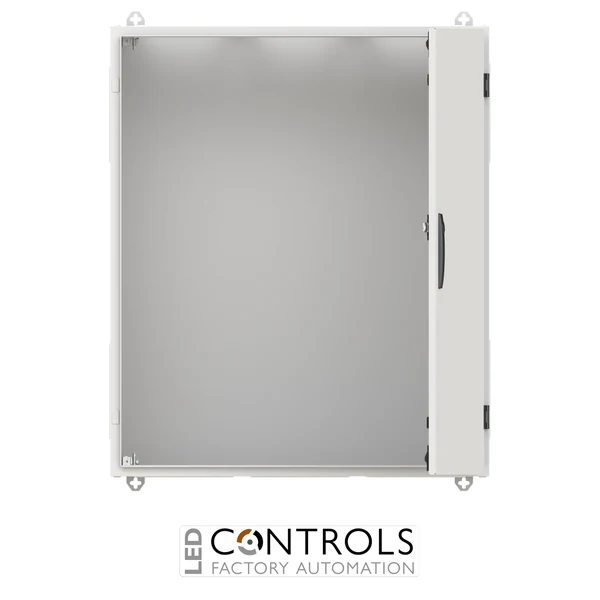

The ABB TW306G, order code 2CPX010147R9999, is a robust TwinLine-W wall-mounted sub-distribution cabinet designed for indoor low-voltage electrical distribution installations. Part of ABB’s TwinLine enclosure range, this empty sheet-steel cabinet provides a flexible platform for configuring distribution, metering and control assemblies in commercial and industrial applications.
The TW306G combines durable sheet-steel construction with IP55 environmental protection and IK08 mechanical impact resistance. Its Class I earthed construction, powder-coated finish and single-leaf steel door provide dependable protection for installed electrical equipment, while the modular internal arrangement supports flexible configuration using ABB distribution components.
With external dimensions of 950 mm high × 800 mm wide × 350 mm deep, the TW306G provides three field widths, six raster units and 216 space units. The enclosure is designed for surface-mounted indoor installation and is prepared for ABB meter fields, distribution fields, combination sets, CombiLine modules and mounting plates.
Key Advantages
- Robust TwinLine-W wall-mounted distribution cabinet for commercial and industrial installations.
- IP55 protection against dust and water ingress.
- IK08 impact resistance for dependable mechanical protection.
- Generous 950 mm × 800 mm × 350 mm enclosure with three field widths.
- 216 space units provide substantial capacity for modular electrical distribution equipment.
- Flexible configuration for meter fields, distribution fields, CombiLine modules and mounting plates.

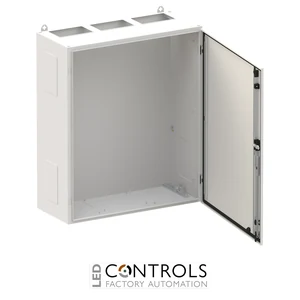

- Reversible single-leaf door with a wide 180° opening angle for convenient installation and maintenance access.
Key Features
- ABB TwinLine-W series wall-mounted empty cabinet.
- IP55 protection rating for indoor electrical installations.
- IK08 mechanical impact protection.
- Class I earthed construction.
- Sheet-steel enclosure, rear panel and door.
- RAL 7035 powder-coated finish.
- Single-leaf door with standard 3 mm double-bit lock.
- 180° door opening angle with left- or right-hand hinging.
- Top flange opening with prepared bottom and side flange openings for flexible cable entry.
- Supplied with external mounting brackets and mounting rails for installation.
- Prepared for ABB meter fields, distribution fields, combination sets, CombiLine modules and mounting plates.
Flexible Wall-Mounted Enclosure for Electrical Distribution
ABB TwinLine cabinets provide a modular enclosure platform for professional low-voltage electrical distribution systems. The TW306G offers substantial internal space for protective devices, metering equipment, distribution components and associated wiring, while its sheet-steel construction helps protect installed equipment from environmental and mechanical influences.
The enclosure is prepared for installation with ABB meter and distribution fields, combination sets, CombiLine modules or mounting plates using compatible EDF or WR mounting structures. Cable entry provisions at the top, bottom and sides support flexible routing, making the TW306G suitable for integration into a wide variety of commercial building and industrial electrical systems.
Typical Applications
- Commercial building electrical distribution systems.
- Industrial low-voltage distribution installations.
- Wall-mounted sub-distribution boards.
- Metering and electrical distribution assemblies.
- Control and automation equipment enclosures.
- ABB CombiLine modular distribution systems.
