Why Choose the ABB TW506G IP55 Wall-Mounting Cabinet?
The ABB TW506G is a robust and spacious IP55 wall-mounting electrical enclosure designed for low-voltage sub-distribution and professional electrical installation applications. As part of the ABB TwinLine N 55 cabinet range, it provides a configurable enclosure platform for meter and distributor fields, combination sets, CombiLine modules and mounting plates.
Manufactured from sheet steel with a powder-coated RAL 7035 grey finish, the TW506G combines durable construction with a high level of ingress protection. Its double-door design provides convenient access to the installation area, while the IP55 protection rating helps protect installed electrical equipment against dust and water ingress in demanding indoor environments.

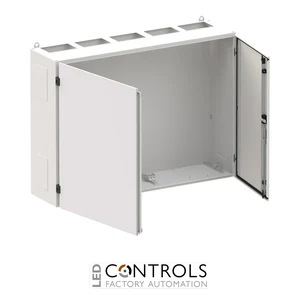

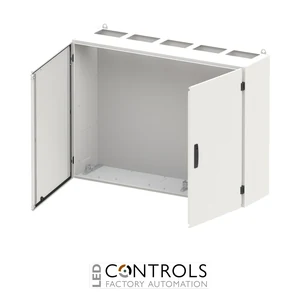

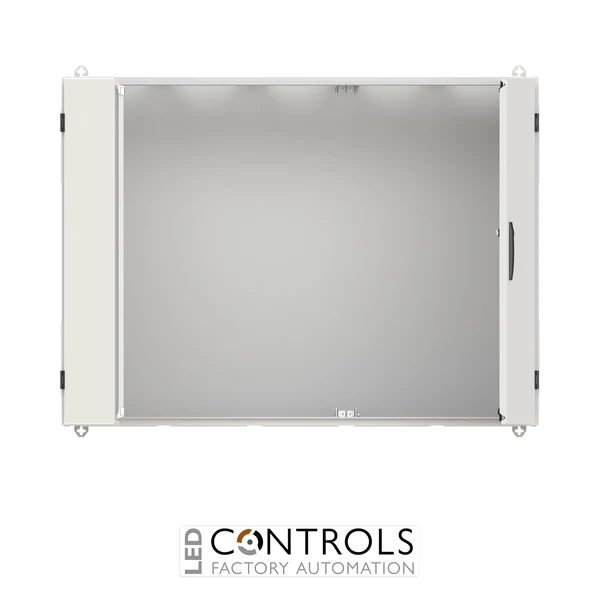

With external dimensions of 1300 mm wide × 950 mm high × 350 mm deep, the TW506G provides five field widths and capacity for up to 360 modular units. The enclosure is prepared for expansion with ABB meter and distributor fields, combination sets, CombiLine modules or mounting plates on EDF/WR mounting frameworks, making it highly versatile for substantial electrical distribution assemblies.
Key Advantages
- Robust IP55 wall-mounting cabinet for electrical sub-distribution.
- Large 1300 mm × 950 mm × 350 mm enclosure for substantial distribution assemblies.
- Five field widths provide flexible configuration of electrical equipment.
- Capacity for up to 360 modular units.
- Durable sheet-steel construction with RAL 7035 powder-coated finish.
- Double-door design with 180° opening angle provides convenient installation and maintenance access.
- Compatible with ABB CombiLine modules, meter fields, distributor fields and mounting plates.
Key Features
- ABB TwinLine N 55 wall-mounting cabinet.
- IP55 ingress protection.
- IK08 impact resistance.
- 1300 mm width.
- 950 mm height.
- 350 mm depth.
- Five field widths for configurable electrical distribution equipment.
- 360 modular-unit capacity.
- Sheet-steel enclosure and doors with RAL 7035 powder-coated finish.
- Double doors with 180° opening angle and left/right door hinging.
- Standard 3 mm double-bit locking system.
- Prepared for ABB CombiLine modules and distribution-system components.
Flexible Protection for Electrical Sub-Distribution
Electrical distribution cabinets such as the ABB TW506G provide a protected and organised installation space for low-voltage distribution equipment. Its sheet-steel construction, IP55 ingress protection and IK08 impact resistance help provide dependable mechanical and environmental protection for electrical components installed within commercial and industrial distribution systems.
The TwinLine N 55 system is designed for flexible expansion and configuration. The TW506G can accommodate ABB meter and distributor fields, combination sets and CombiLine modules, as well as mounting plates using the appropriate EDF or WR mounting framework, enabling panel builders and electrical installers to configure the enclosure for a wide variety of sub-distribution requirements.
Typical Applications
- Commercial and industrial electrical sub-distribution systems.
- Low-voltage distribution assemblies.
- Building electrical installations.
- Meter and distributor field installations.
- ABB CombiLine modular distribution systems.
- Electrical plant rooms and technical service areas.
- Panel building and electrical control installations.
