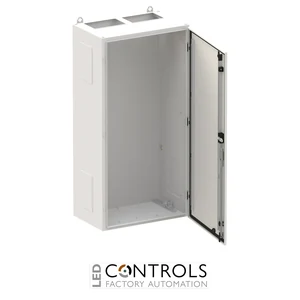

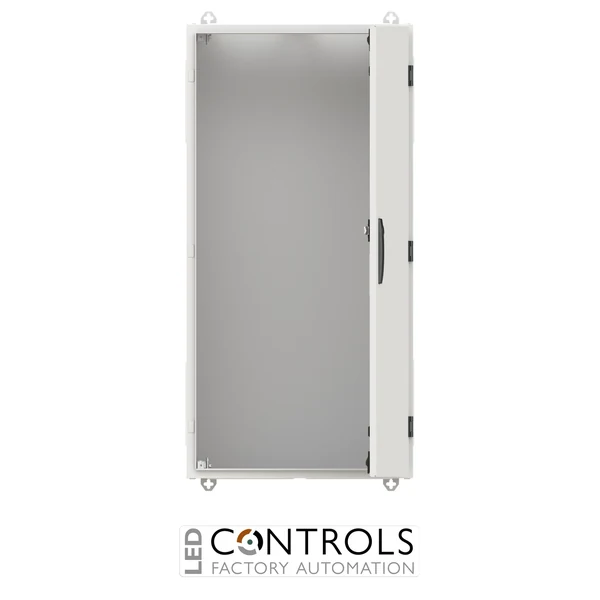

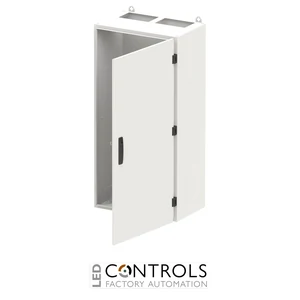

Why Choose the ABB TW207G TwinLine IP55 Wall-Mounted Enclosure?
The ABB TW207G is a robust TwinLine-W wall-mounted distribution enclosure designed for low-voltage electrical distribution, metering and control installations. As part of ABB’s TwinLine N 55 enclosure system, this empty cabinet provides a durable and flexible housing for compatible distribution equipment, meter fields, combination sets, CombiLine modules and mounting plates.
Designed for indoor surface-mounted installation, the TW207G combines IP55 ingress protection with IK08 impact resistance. Its powder-coated construction, RAL 7035 finish and Class I earthed design provide dependable protection for electrical equipment in commercial, infrastructure and industrial environments.
With external dimensions of 1100 mm high × 550 mm wide × 350 mm deep, the TW207G provides 168 modular space units arranged across seven rows. Its single-door design can be hinged on the right or left and opens through 180°, providing convenient access for installation, inspection and maintenance.
Key Advantages
- Robust ABB TwinLine-W wall-mounted enclosure for low-voltage distribution applications.
- IP55 protection helps protect installed electrical equipment against dust and water ingress.
- IK08 impact resistance provides additional mechanical protection.
- Practical 1100 × 550 × 350 mm enclosure dimensions for substantial distribution assemblies.
- Provides 168 modular space units arranged over seven rows.
- Reversible single door with a 180° opening angle supports convenient installation and maintenance access.
Key Features
- ABB TwinLine-W / TwinLine N 55 series empty wall-mounted enclosure.
- IP55 degree of protection.
- IK08 impact-resistance rating.
- Protection Class I earthed construction.
- RAL 7035 grey finish.
- Powder-coated enclosure surface.
- Single door with right- or left-hand hinging.
- 180° door opening angle.
- Standard 3 mm double-bit lock with rod locking mechanism.
- 299 mm installation depth and 347 mm internal depth.
- Two flange openings and provision for cable entry.
- Prepared for compatible ABB CombiLine modules and modular distribution equipment.
Reliable Protection for Electrical Distribution Systems
Wall-mounted electrical enclosures provide a protected installation environment for distribution, metering and control equipment. The ABB TW207G combines a robust cabinet construction with IP55 ingress protection and IK08 impact resistance to help safeguard internal electrical components throughout normal service.
The TwinLine N 55 system supports flexible modular distribution configurations. The TW207G is prepared for compatible ABB distribution and metering equipment, combination sets and CombiLine modules, providing installers with a versatile enclosure platform for professional low-voltage distribution assemblies.
Typical Applications
- Low-voltage electrical distribution systems.
- Commercial and industrial distribution boards.
- Metering and sub-distribution installations.
- Building services electrical systems.
- Control and automation panel assemblies.
- ABB CombiLine modular distribution installations.
