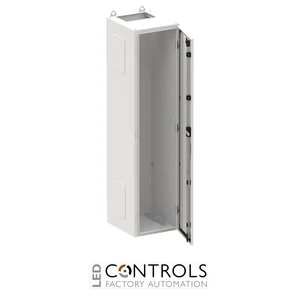

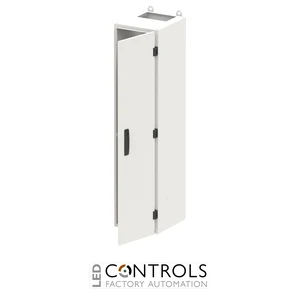

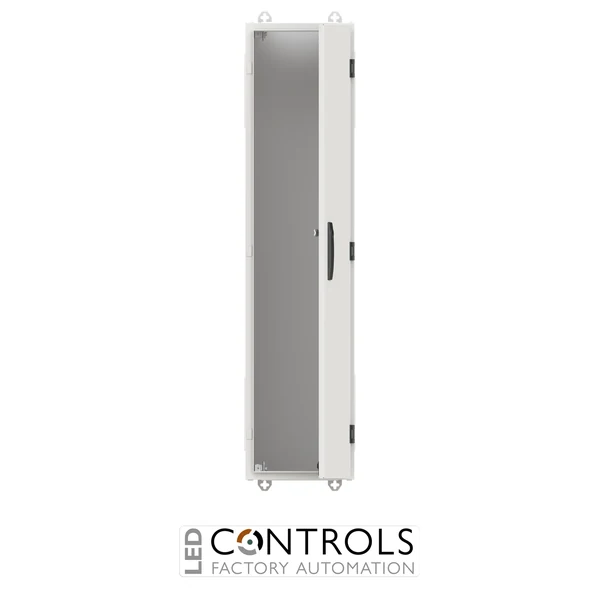

Why Choose the ABB TW108G TwinLine IP55 Wall-Mounting Enclosure?
The ABB TW108G is a robust IP55 wall-mounting electrical enclosure designed for indoor low-voltage distribution and switchgear applications. Part of the ABB TwinLine-W enclosure range, it combines a narrow 300 mm cabinet width with a substantial 1250 mm height and 350 mm depth, providing a practical platform for professional sub-distribution assemblies.
Manufactured from sheet steel with a RAL 7035 powder-coated finish, the TW108G provides Class I protection and IK08 impact resistance. Its single opaque door and surface-mounted construction make it suitable for indoor installations where durable mechanical protection and convenient access to electrical equipment are required.
With external dimensions of 1250 mm high × 300 mm wide × 350 mm deep, the TW108G provides 8 grid units, one panel width and 96 space units. The TwinLine-W system is designed to accommodate compatible distribution panels, combination sets, CombiLine modules and mounting arrangements for flexible low-voltage distribution configurations.
Key Advantages
- IP55 protection for dependable indoor electrical distribution installations.
- Space-efficient 300 mm width with a tall 1250 mm enclosure format.
- Generous 350 mm cabinet depth with 299 mm installation depth.
- 96 space units across eight grid units for modular distribution equipment.
- Class I protection and IK08 mechanical impact resistance.
- Compatible with the flexible ABB TwinLine-W distribution enclosure system.
Key Features
- ABB TwinLine-W wall-mounting enclosure.
- IP55 degree of protection.
- 1250 mm height, 300 mm width and 350 mm depth.
- 299 mm installation depth.
- 8 grid units and one panel width.
- 96 space units with 12 modular spaces per row.
- Single opaque door with locking provision.
- Sheet-steel enclosure with RAL 7035 powder-coated finish.
- IK08 impact resistance.
- Supplied as an empty enclosure for configuration with compatible ABB equipment.
Space-Efficient Protection for Low-Voltage Distribution
The ABB TW108G provides a tall, narrow enclosure format for electrical installations where available wall width is limited but substantial vertical distribution capacity is required. Its IP55 protection, Class I construction and IK08 impact resistance provide a durable housing for compatible low-voltage equipment in indoor commercial, industrial and building-services applications.
As part of the TwinLine-W system, the enclosure supports flexible internal configurations using compatible ABB distribution panels, combination sets and CombiLine modules. Its 350 mm overall depth and 299 mm installation depth provide useful space for assembling and wiring professional sub-distribution systems.
Typical Applications
- Commercial low-voltage sub-distribution systems.
- Industrial electrical distribution installations.
- Building-services distribution boards.
- Metering and distribution assemblies.
- ABB CombiLine-based electrical configurations.
- Panel building and indoor electrical installations.
