Why Choose the ABB TW308G IP55 TwinLine Wall-Mounted Enclosure?
The ABB TW308G is a robust IP55 TwinLine wall-mounted sub-distribution enclosure designed to house electrical distribution, metering, protection and control equipment in professional low-voltage installations. Its three-field-width format provides substantial modular capacity while retaining a practical wall-mounted configuration for commercial and industrial electrical systems.

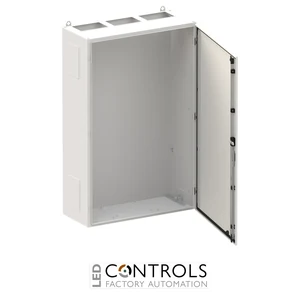

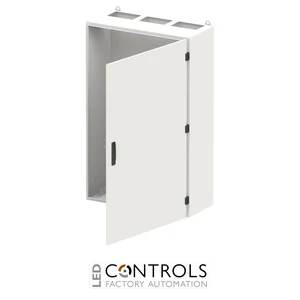

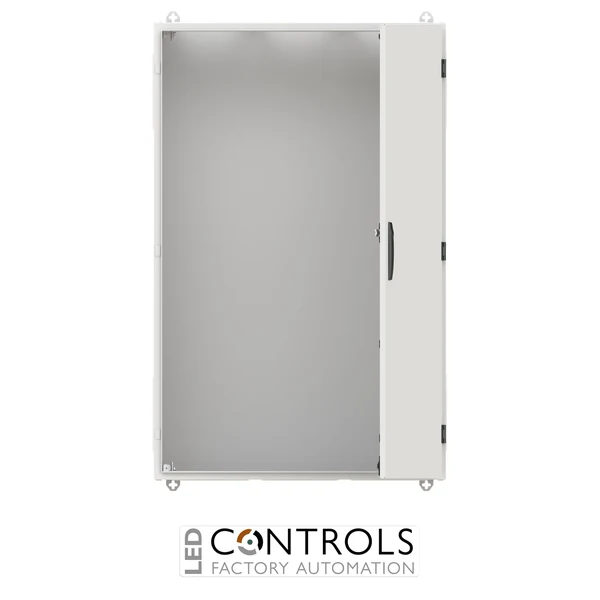

Manufactured from sheet steel with a powder-coated RAL 7035 finish, the TW308G features a single-leaf sheet-steel door with selectable right- or left-hand hinging. The enclosure provides Class I earthed protection, IP55 ingress protection and IK08 impact resistance, supporting dependable indoor electrical installations.
The TW308G measures 800 mm wide × 1250 mm high × 350 mm deep and provides 288 space units across three field widths and eight grid units. ABB order code 2CPX010157R9999 identifies this specific TwinLine enclosure within the DESUJ Sub Distribution product group.
Key Advantages
- Robust IP55 wall-mounted enclosure for sub-distribution applications.
- 288 space units provide substantial capacity for modular electrical equipment.
- 350 mm enclosure depth provides generous internal installation space.
- IK08 impact resistance and Class I earthed protection support dependable electrical installations.
- Single-leaf door with 180° opening angle provides convenient installation and maintenance access.
- Flexible TwinLine platform suitable for metering, distribution, CombiLine and mounting-plate configurations.
Key Features
- ABB TwinLine TW308G wall-mounted enclosure.
- IP55 protection rating.
- IK08 impact resistance.
- Class I earthed protection.
- 1250 mm enclosure height.
- 800 mm enclosure width.
- 350 mm enclosure depth.
- 288 space units with three field widths and eight grid units.
- Sheet-steel enclosure, rear wall and single-leaf door.
- RAL 7035 powder-coated finish.
- Door hinge configurable on the right or left.
- 180° door opening angle with standard 3 mm double-bit locking mechanism.
- Prepared for metering fields, distribution fields, Combi-Sets, CombiLine modules and mounting plates.
Reliable Housing for Electrical Distribution Systems
Wall-mounted sub-distribution enclosures such as the ABB TW308G provide a protected and structured installation space for low-voltage switching, metering, protection and distribution equipment. Its IP55 enclosure protection, IK08 impact resistance and Class I earthed construction help safeguard installed components while supporting reliable indoor electrical installations.
The ABB TwinLine system provides a flexible platform for structured distribution assemblies. The TW308G is prepared for metering and distribution fields, Combi-Sets, CombiLine modules and mounting plates on EDF/WR mounting frames, while dedicated flange openings at the top, bottom and sides support practical cable entry.
Typical Applications
- Commercial and industrial sub-distribution boards.
- Low-voltage electrical distribution assemblies.
- Metering and distribution installations.
- Building services electrical systems.
- Industrial control and protection installations.
- Wall-mounted CombiLine distribution systems.
