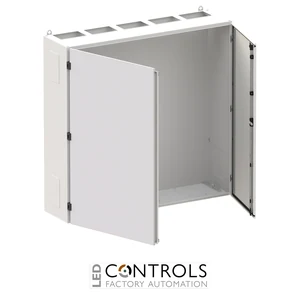

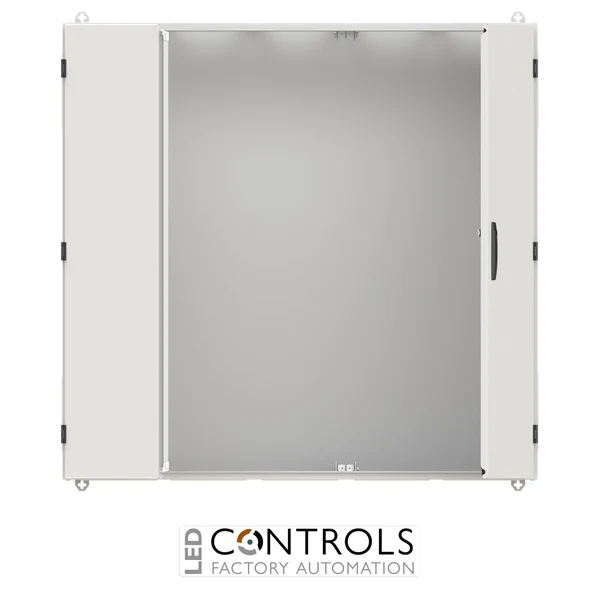

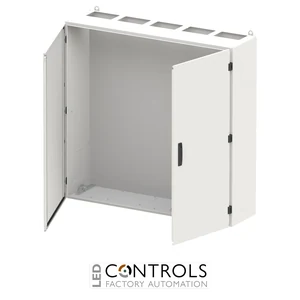

Why Choose the ABB TW508G TwinLine IP55 Wall-Mounted Enclosure?
The ABB TW508G is a robust TwinLine N 55 wall-mounted distribution enclosure designed for low-voltage electrical distribution, metering and control installations. As part of ABB’s modular TwinLine enclosure system, it provides a spacious housing for compatible distribution fields, meter fields, combination sets, CombiLine modules and other electrical installation equipment.
Designed for professional surface-mounted installations, the TW508G combines a substantial enclosure format with IP55 protection. Its TwinLine construction provides a flexible platform for assembling low-voltage distribution systems while helping protect installed equipment against environmental influences encountered in normal service.
With external dimensions of 1250 mm high × 1300 mm wide × 350 mm deep, the TW508G provides 480 space units across a five-field-wide configuration. This large-capacity format makes it particularly suitable for distribution assemblies requiring extensive modular installation space while retaining the convenience of a wall-mounted cabinet.
Key Advantages
- Robust ABB TwinLine N 55 wall-mounted enclosure for professional electrical distribution systems.
- IP55 protection for dependable enclosure of installed electrical equipment.
- Large 1250 × 1300 × 350 mm external dimensions.
- Provides 480 space units for extensive modular distribution assemblies.
- Five-field-wide configuration supports flexible equipment layouts.
- Compatible with the modular ABB TwinLine distribution system for versatile panel construction.
Key Features
- ABB TwinLine N 55 series wall-mounted enclosure.
- IP55 degree of protection.
- 350 mm enclosure depth for installations requiring additional internal depth.
- 480 space units for modular electrical equipment.
- Five field widths for large distribution configurations.
- Eight-row configuration within the TwinLine modular system.
- Suitable for compatible meter and distribution fields.
- Supports compatible combination sets and ABB CombiLine modules.
- Designed as a modular enclosure platform for low-voltage sub-distribution assemblies.
Reliable Protection for Electrical Distribution Systems
Electrical distribution enclosures provide a structured and protected installation environment for switching, protection, metering and control equipment. The ABB TW508G combines a large wall-mounted cabinet format with IP55 enclosure protection, helping create a dependable platform for professional low-voltage distribution assemblies.
The TwinLine N 55 system is designed around flexible modular panel construction. The TW508G can be expanded with compatible meter and distribution fields, combination sets or CombiLine modules, enabling panel builders and electrical installers to configure the internal arrangement around the requirements of the application.
Typical Applications
- Low-voltage electrical distribution systems.
- Commercial and industrial distribution boards.
- Metering and sub-distribution installations.
- Building services electrical systems.
- Large modular wall-mounted distribution assemblies.
- ABB CombiLine and TwinLine panel-building applications.
