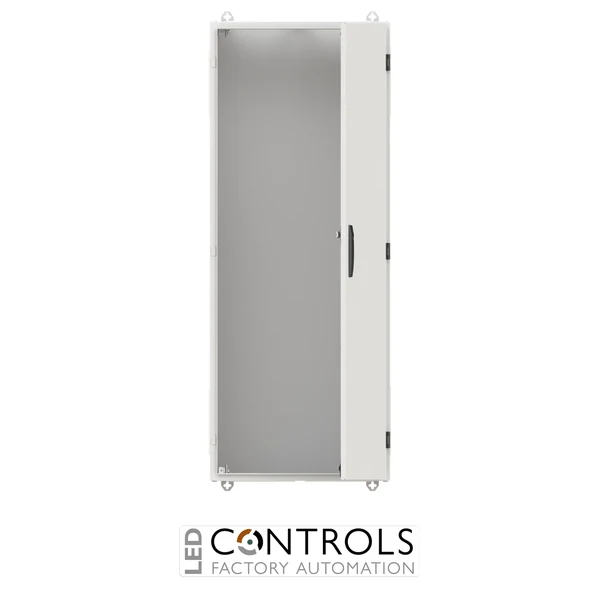

Why Choose the ABB TW209G TwinLine Wall-Mounting Enclosure?
The ABB TW209G is a robust TwinLine wall-mounting electrical enclosure designed for professional sub-distribution and low-voltage electrical installations. As part of the ABB TwinLine enclosure system, it provides a durable and flexible housing for metering equipment, distribution components, CombiLine modules and mounting assemblies.
This enclosure combines durable sheet-steel construction with protection class I earthed construction and an IP55 degree of protection. Its powder-coated RAL 7035 finish and IK08 impact resistance provide dependable mechanical and environmental protection, while the single-leaf door can be hinged on either the right or left and opens through 180° for convenient installation, wiring and maintenance access.
With external dimensions of 1400 mm high × 550 mm wide × 350 mm deep, the TW209G provides 216 space units across a two-field-width arrangement. It is prepared for installation of meter fields, distribution fields, combination sets, CombiLine modules or mounting plates using compatible EDF and WR mounting systems.
Key Advantages
- Robust ABB TwinLine wall-mounting enclosure for sub-distribution applications.
- IP55 protection rating for dependable protection of installed electrical equipment.
- Protection class I earthed construction for professional electrical installations.
- Generous 550 mm × 1400 mm × 350 mm enclosure format.
- 216 space units across a two-field-width configuration.
- Flexible support for meter fields, distribution fields, CombiLine modules and mounting plates.
Key Features
- ABB TwinLine series.
- IP55 wall-mounting enclosure with door.
- 1400 mm height × 550 mm width × 350 mm depth.
- Protection class I, earthed.
- IK08 impact resistance.
- Powder-coated RAL 7035 light-grey finish.
- Sheet-steel enclosure, door and rear wall.

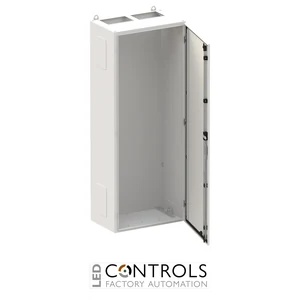

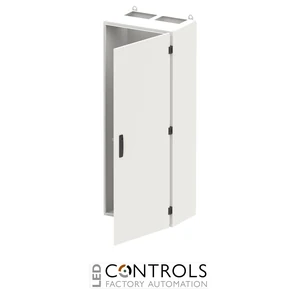

- Single-leaf door with 180° opening angle.
- Door hinge configurable for right- or left-hand opening.
- Standard 3 mm double-bit lock.
- Top, bottom and side flange provisions for cable entry.
Flexible Enclosure for Sub-Distribution Systems
The ABB TwinLine system is designed to support modular low-voltage distribution arrangements in commercial, industrial and infrastructure installations. The TW209G provides a spacious enclosure platform for organising protective devices, metering equipment and distribution components while maintaining reliable mechanical and environmental protection.
The enclosure is prepared for meter fields, distribution fields, combination sets, CombiLine modules or mounting plates on EDF and WR mounting frames. Its two-field-width format and 216 available space units provide substantial installation capacity while retaining a practical wall-mounted configuration.
Typical Applications
- Electrical sub-distribution boards.
- Commercial building distribution systems.
- Industrial low-voltage distribution panels.
- Metering and protective-device assemblies.
- CombiLine modular distribution systems.
- Indoor wall-mounted electrical installations.
