Why Choose the ABB TW409G TwinLine-W Wall-Mounted Cabinet?

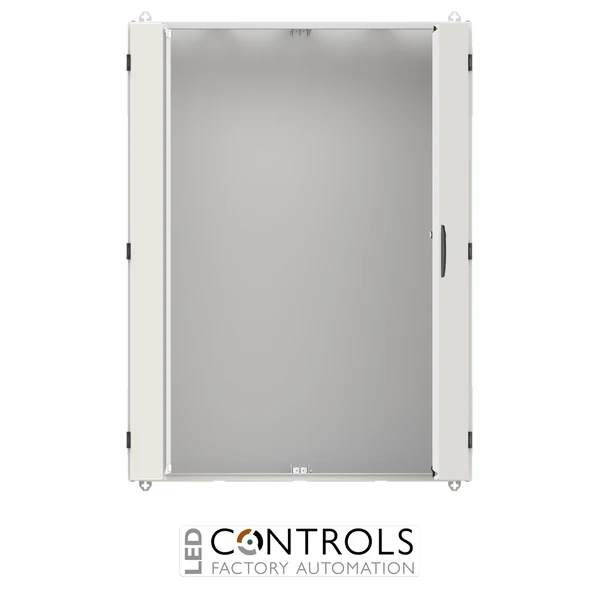

The ABB TW409G, order code 2CPX010163R9999, is a robust TwinLine-W wall-mounted sub-distribution cabinet designed for indoor low-voltage electrical distribution installations. Part of ABB’s TwinLine enclosure range, this empty sheet-steel cabinet provides a flexible platform for configuring distribution, metering and control assemblies in commercial and industrial applications.
The TW409G combines durable sheet-steel construction with IP55 environmental protection and IK08 mechanical impact resistance. Its Class I earthed construction, powder-coated RAL 7035 finish and double-leaf steel door provide dependable protection for installed electrical equipment, while the modular internal arrangement supports flexible configuration using ABB distribution components.
With external dimensions of 1400 mm high × 1050 mm wide × 350 mm deep, the TW409G provides four panel widths, nine grid units and 432 space units. The enclosure is designed for indoor wall-mounted installation and is pre-assembled for ABB metering modules, distribution modules, Combi-Sets, CombiLine modules and mounting plates.
Key Advantages
- Robust TwinLine-W wall-mounted distribution cabinet for commercial and industrial installations.
- IP55 protection for demanding indoor electrical environments.
- IK08 impact resistance for dependable mechanical protection.
- Large 1400 mm × 1050 mm × 350 mm enclosure with four panel widths.
- 432 space units provide substantial capacity for modular electrical distribution equipment.
- Flexible configuration for metering modules, distribution modules, Combi-Sets, CombiLine modules and mounting plates.

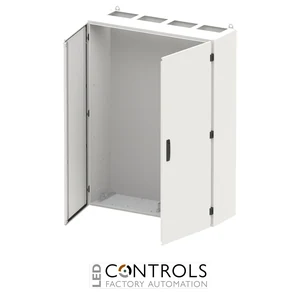

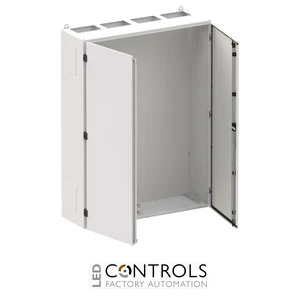

- Double-leaf door arrangement with a wide 180° opening angle for convenient installation and maintenance access.
Key Features
- ABB TwinLine-W series wall-mounted empty cabinet.
- IP55 protection rating for indoor electrical installations.
- IK08 mechanical impact protection.
- Class I earthed construction.
- Sheet-steel enclosure, rear panel and doors.
- RAL 7035 powder-coated finish.
- Double-leaf door with standard double-bit locking mechanism.
- 180° door opening angle with right- and left-hand door hinging.
- Top cable entry via pre-cut flange opening.
- Bottom and side cable entry via pre-punched flange openings.
- Pre-assembled for ABB metering modules, distribution modules, Combi-Sets, CombiLine modules and mounting plates.
Flexible Wall-Mounted Enclosure for Electrical Distribution
ABB TwinLine cabinets provide a modular enclosure platform for professional low-voltage electrical distribution systems. The TW409G offers substantial internal capacity for protective devices, metering equipment, distribution components and associated wiring, while its sheet-steel construction helps protect installed equipment from environmental and mechanical influences.
The enclosure is pre-assembled for installation of ABB metering modules, distribution modules, Combi-Sets, CombiLine modules and mounting plates on compatible EDF or WR mounting frames. Cable entry provisions at the top, bottom and sides support flexible routing, making the TW409G suitable for integration into a wide variety of commercial building and industrial electrical systems.
Typical Applications
- Commercial building electrical distribution systems.
- Industrial low-voltage distribution installations.
- Wall-mounted sub-distribution boards.
- Metering and electrical distribution assemblies.
- Control and automation equipment enclosures.
- ABB CombiLine modular distribution systems.
