Why Choose the ABB TW212G TwinLine IP55 Floor-Standing Enclosure?

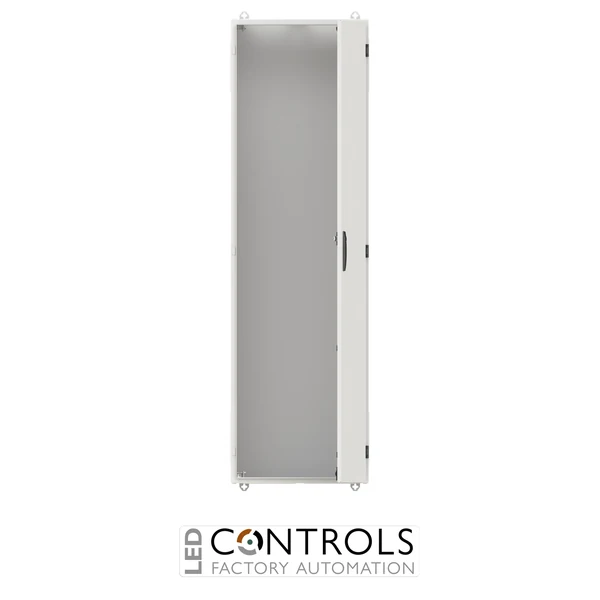

The ABB TW212G is a robust IP55 floor-standing electrical enclosure designed for indoor low-voltage distribution and switchgear applications. Part of the ABB TwinLine-W enclosure range, it combines a narrow 550 mm cabinet width with a substantial 1850 mm height and 350 mm depth, providing a versatile platform for professional sub-distribution assemblies.
Manufactured from sheet steel with a RAL 7035 powder-coated finish, the TW212G provides Class I earthed protection and IK08 impact resistance. Its single-leaf sheet-steel door opens through 180° and can be hinged on either the right or left, while a standard 3 mm double-bit locking system provides controlled access to installed equipment.
With external dimensions of 1850 mm high × 550 mm wide × 350 mm deep, the TW212G provides 12 grid units, two panel widths and 288 space units. It is prepared for compatible metering and distribution fields, Combi-Sets, CombiLine modules and mounting plates using ABB EDF or WR mounting-frame arrangements.
Key Advantages
- Large IP55 floor-standing enclosure for indoor electrical distribution applications.
- Space-efficient 550 mm width with a tall 1850 mm enclosure format.
- Generous 350 mm cabinet depth with 299 mm built-in depth.
- 288 space units provide substantial capacity for compatible distribution equipment.
- Class I earthed construction with IK08 mechanical impact resistance.
- Prepared for compatible ABB metering, distribution and CombiLine configurations.
Key Features
- ABB TwinLine-W floor-standing enclosure.
- IP55 degree of protection.
- 1850 mm height, 550 mm width and 350 mm depth.
- 299 mm built-in depth.
- 12 grid units and two panel widths.
- 288 space units for compatible electrical equipment.

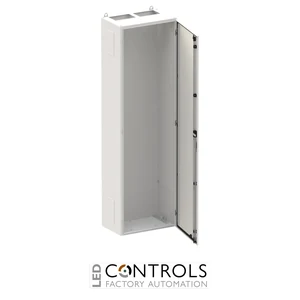

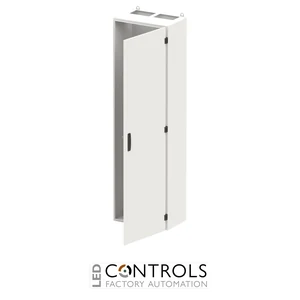

- Single-leaf sheet-steel door with 180° opening angle.
- Door hinging configurable on the right or left.
- Standard 3 mm double-bit lock with rod locking mechanism.
- Cable-entry provisions at the top, bottom and sides.
High-Capacity Floor-Standing Platform for Low-Voltage Distribution
The ABB TW212G provides a tall floor-standing enclosure format for low-voltage distribution systems requiring substantial equipment capacity without excessive cabinet width. Its IP55 environmental protection, IK08 impact resistance and Class I earthed construction provide a durable housing for indoor commercial, industrial and building-services electrical installations.
As part of the TwinLine system, the TW212G is prepared for compatible metering fields, distribution modules, Combi-Sets, CombiLine modules and mounting plates on EDF or WR mounting frames. Top, bottom and side flange provisions support flexible cable routing when integrating the enclosure into complete distribution assemblies.
Typical Applications
- Commercial low-voltage sub-distribution systems.
- Industrial electrical distribution installations.
- Building-services distribution boards.
- Metering and distribution assemblies.
- ABB CombiLine-based switchgear configurations.
- Floor-standing panel and electrical distribution installations.
