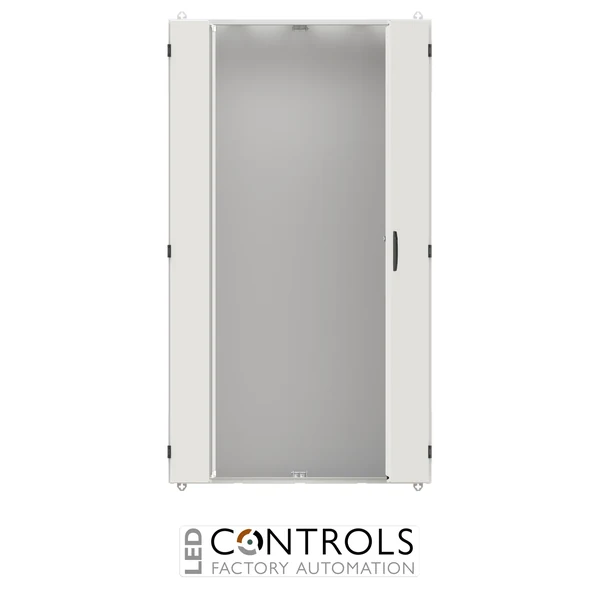

Why Choose the ABB TW412G IP55 Floor-Standing Cabinet?
The ABB TW412G is a robust and spacious IP55 floor-standing electrical enclosure designed for low-voltage sub-distribution and professional electrical installation applications. As part of the ABB TwinLine cabinet range, it provides a configurable enclosure platform for meter fields, distributor fields, combination sets, CombiLine modules and mounting plates.
Manufactured from sheet steel with a powder-coated RAL 7035 grey finish, the TW412G combines durable construction with dependable environmental protection. Its double-door design provides convenient access to the installation area, while the IP55 protection rating and IK08 impact resistance help protect installed electrical equipment in demanding indoor environments.
With external dimensions of 1050 mm wide × 1850 mm high × 350 mm deep, the TW412G provides four field widths, 12 grid units and capacity for up to 576 modular space units. The cabinet is prepared for installation of ABB metering and distributor fields, Combi-Sets, CombiLine modules and mounting plates on EDF/WR mounting frameworks, making it suitable for substantial electrical distribution assemblies.
Key Advantages
- Robust IP55 floor-standing cabinet for electrical sub-distribution.
- Large 1050 mm × 1850 mm × 350 mm enclosure for substantial distribution assemblies.
- Four field widths provide flexible configuration of electrical equipment.
- Capacity for up to 576 modular space units.
- Durable sheet-steel construction with RAL 7035 powder-coated finish.

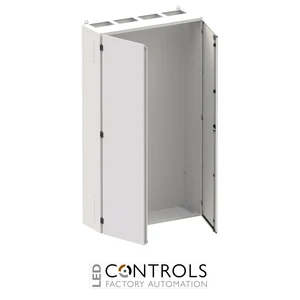

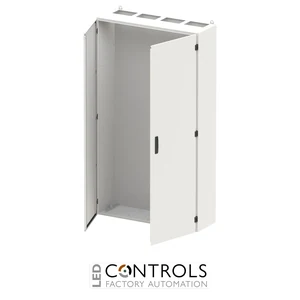

- Double-door design with 180° opening angle provides convenient installation and maintenance access.
- Compatible with ABB CombiLine modules, meter fields, distributor fields and mounting plates.
Key Features
- ABB TwinLine floor-standing cabinet.
- IP55 ingress protection.
- IK08 impact resistance.
- 1050 mm width.
- 1850 mm height.
- 350 mm depth.
- Four field widths for configurable electrical distribution equipment.
- 12 grid units and 576 modular space units.
- Sheet-steel enclosure, doors and rear wall with RAL 7035 powder-coated finish.
- Double doors with 180° opening angle and left/right door hinging.
- Standard 3 mm double-bit locking mechanism.
- Lateral and bottom expansion capability for flexible system configuration.
- Cable-entry provisions at the top, bottom and sides of the enclosure.
Flexible Protection for Electrical Sub-Distribution
Electrical distribution cabinets such as the ABB TW412G provide a protected and organised installation space for low-voltage distribution equipment. Its sheet-steel construction, IP55 ingress protection and IK08 impact resistance help provide dependable mechanical and environmental protection for electrical components installed within commercial and industrial distribution systems.
The TwinLine system is designed for flexible expansion and configuration. The TW412G can accommodate ABB meter and distributor fields, combination sets and CombiLine modules, as well as mounting plates using suitable EDF or WR mounting frameworks. Lateral and bottom expansion options further support the creation of customised distribution systems for larger electrical installations.
Typical Applications
- Commercial and industrial electrical sub-distribution systems.
- Low-voltage distribution assemblies.
- Building electrical installations.
- Meter and distributor field installations.
- ABB CombiLine modular distribution systems.
- Electrical plant rooms and technical service areas.
- Panel building and large electrical distribution installations.
