Why Choose the ABB TW105G TwinLine N 55 Enclosure?
The ABB TW105G is a robust IP55 wall-mounted electrical enclosure designed for low-voltage sub-distribution installations. As part of the ABB TwinLine N 55 range, it provides a durable steel housing for electrical distribution equipment and is suitable for indoor commercial and industrial installations.

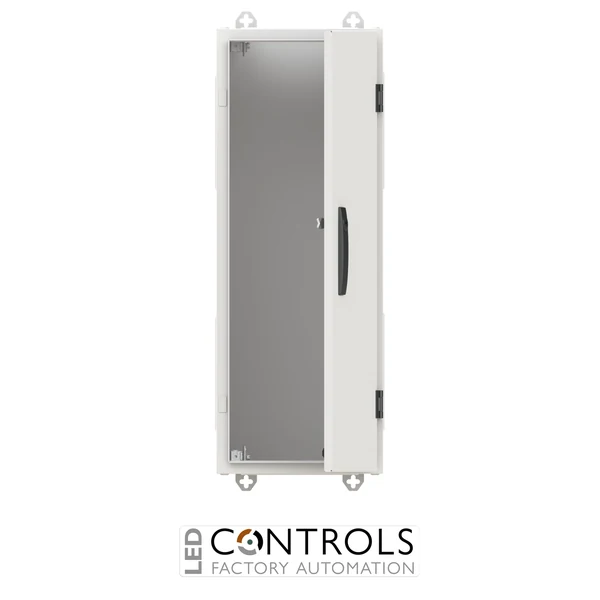

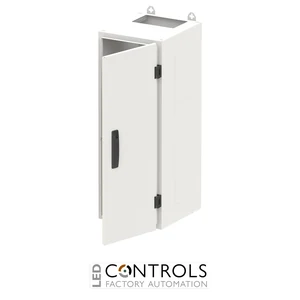

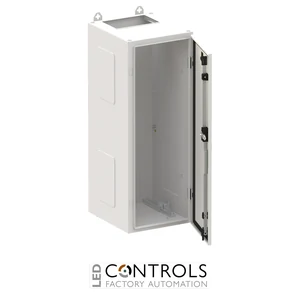

Designed for flexible panel building, the TW105G features a powder-coated RAL 7035 light grey finish, an earthed Class I construction and IK08 impact resistance. Its single steel door can be hinged on either the right or left and provides a 180-degree opening angle, while the standard double-bit 3 mm locking system helps provide secure access to installed equipment.
With external dimensions of 300 mm wide × 800 mm high × 350 mm deep, the TW105G provides capacity for 60 modular units across five rows. The enclosure is prepared for configuration with compatible ABB distribution fields, combination sets, CombiLine modules or mounting plates, making it a versatile solution for professional electrical distribution assemblies.
Key Advantages
- Robust IP55 enclosure designed for electrical sub-distribution.
- Compact 300 × 800 × 350 mm enclosure dimensions.
- Capacity for 60 modular units across five rows.
- IK08 impact resistance for dependable mechanical protection.
- Powder-coated RAL 7035 steel construction.
- Flexible configuration with compatible ABB distribution and CombiLine systems.
Key Features
- ABB TwinLine N 55 series.
- IP55 ingress protection rating.
- IK08 impact resistance.
- 300 mm width.
- 800 mm height.
- 350 mm depth.
- 60 modular units across five rows.
- Single steel door with 180° opening angle.
- Door hinge configurable for right- or left-hand opening.
- RAL 7035 light grey powder-coated finish.
- Class I earthed construction for indoor installations.
Reliable Protection for Electrical Distribution Equipment
Electrical distribution enclosures provide a secure housing for protective, switching and distribution equipment while helping protect installed components against environmental exposure and accidental contact. The ABB TW105G combines IP55 ingress protection with IK08 impact resistance and a robust sheet-steel construction for dependable indoor sub-distribution installations.
The TwinLine N 55 system is designed to support flexible low-voltage distribution configurations. The TW105G can be equipped with compatible ABB meter and distribution fields, combination sets, CombiLine modules or mounting plates on suitable EDF/WR mounting frameworks, enabling panel builders to configure the enclosure around specific installation requirements.
Typical Applications
- Commercial electrical sub-distribution boards.
- Industrial low-voltage distribution systems.
- Building services and infrastructure installations.
- Electrical switchgear and protection assemblies.
- CombiLine-based distribution installations.
- Indoor wall-mounted distribution systems requiring IP55 protection.
