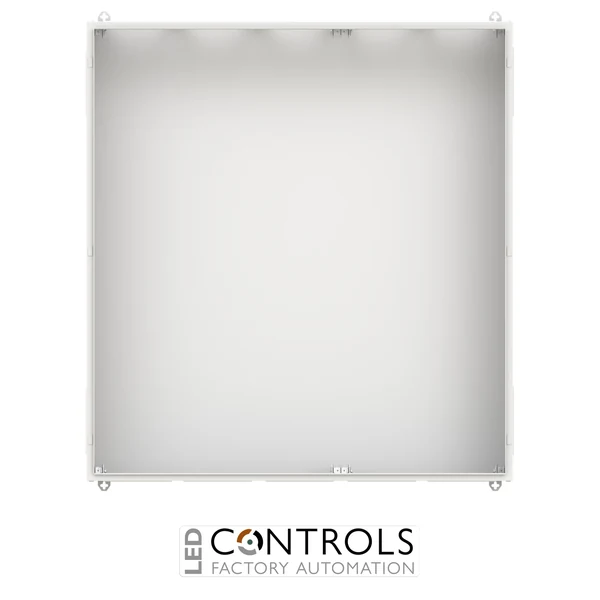

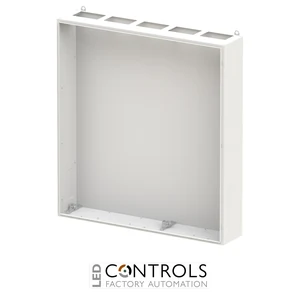

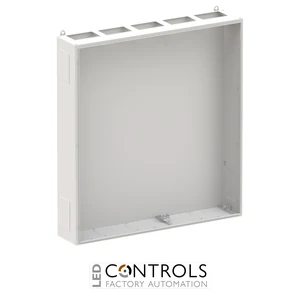

Why Choose the ABB TL509GB TwinLine-L IP30 Wall-Mounted Cabinet?
The ABB TL509GB, order code 2CPX010320R9999, is a spacious TwinLine-L wall-mounted sub-distribution cabinet designed for indoor low-voltage electrical distribution installations. Supplied as an empty basic enclosure without a door, it provides a flexible platform for configuring metering, distribution and control assemblies in commercial and industrial electrical systems.
The TL509GB features a durable sheet-steel enclosure, Class I earthed construction and IP30 protection. Its powder-coated RAL 7035 finish provides a professional, durable surface, while IK08 impact resistance helps protect the enclosure against mechanical impact. The cabinet is prepared for integration with ABB distribution panels, meter panels, combination sets, CombiLine modules and mounting plates.
With external dimensions of 1400 mm high × 1300 mm wide × 275 mm deep, the TL509GB provides five field widths, nine raster units and 540 space units. Its large internal capacity makes it particularly suitable for substantial wall-mounted distribution assemblies requiring extensive modular equipment and wiring space.
Key Advantages
- Large TwinLine-L wall-mounted sub-distribution enclosure for professional indoor installations.
- IP30 protection rating in the basic doorless configuration.
- IK08 impact resistance for dependable mechanical protection.
- Generous 1400 mm × 1300 mm × 275 mm enclosure with five field widths.
- 540 space units provide extensive capacity for modular electrical equipment.
- Flexible configuration with ABB meter panels, distribution panels, combination sets, CombiLine modules and mounting plates.
- Doorless basic configuration provides flexibility when specifying and building a customised distribution assembly.
Key Features
- ABB TwinLine-L series wall-mounted empty cabinet.
- IP30 protection rating without door.
- IK08 mechanical impact resistance.
- Class I earthed construction.
- Durable sheet-steel enclosure and rear panel.
- RAL 7035 powder-coated finish.
- Supplied without a door as a basic enclosure.
- Suitable for surface-mounted and partially recessed indoor installation.
- Prepared cable-entry flange openings for flexible cable routing.
- Prepared for ABB meter panels, distribution panels, combination sets, CombiLine modules and mounting plates.
Flexible High-Capacity Enclosure for Electrical Distribution
The ABB TwinLine system provides a modular enclosure platform for professional low-voltage distribution installations. With five field widths and 540 space units, the TL509GB offers extensive internal capacity for protective devices, metering equipment, distribution components and associated wiring while its sheet-steel construction provides a robust housing for indoor electrical equipment.
The TL509GB is prepared for configuration with ABB meter panels, distribution panels, combination sets, CombiLine modules and mounting plates on compatible EDF or WR mounting structures. Its doorless basic configuration allows the enclosure to be adapted to the requirements of the finished distribution assembly, while prepared cable-entry provisions support efficient cable routing and installation.
Typical Applications
- Commercial building electrical distribution systems.
- Industrial low-voltage distribution installations.
- Large wall-mounted sub-distribution boards.
- Metering and electrical distribution assemblies.
- Control and automation equipment enclosures.
- ABB CombiLine modular distribution systems.
