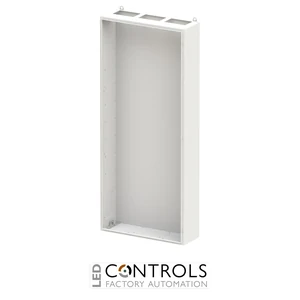

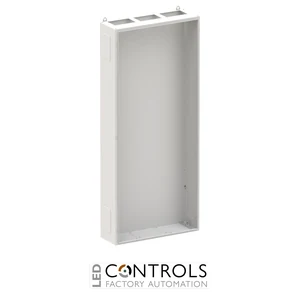

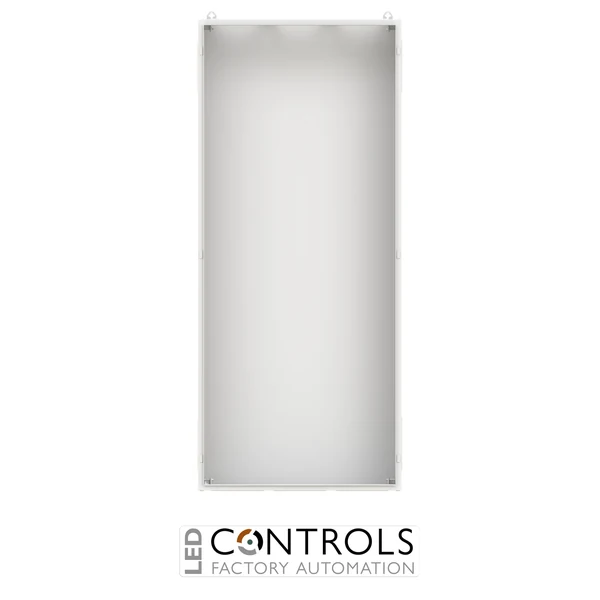

Why Choose the ABB TL312GB TwinLine-L IP30 Floor-Standing Cabinet?
The ABB TL312GB, order code 2CPX010323R9999, is a spacious TwinLine-L floor-standing sub-distribution cabinet designed for indoor low-voltage electrical distribution installations. Supplied as an empty basic enclosure without a door, it provides a flexible platform for configuring metering, distribution and control assemblies in commercial and industrial electrical systems.
The TL312GB features a durable sheet-steel enclosure, Class I earthed construction and IP30 protection. Its powder-coated RAL 7035 finish provides a durable surface, while IK08 impact resistance helps protect the enclosure against mechanical impact. The cabinet is prepared for integration with ABB metering and distribution fields, combination sets, CombiLine modules and mounting plates.
With external dimensions of 1850 mm high × 800 mm wide × 275 mm deep, the TL312GB provides three field widths, 12 grid units and 432 space units. Its tall floor-standing format provides substantial internal capacity for modular electrical equipment and associated wiring while maintaining a relatively compact 800 mm enclosure width.
Key Advantages
- Spacious TwinLine-L floor-standing sub-distribution enclosure for professional indoor installations.
- IP30 protection rating in the basic doorless configuration.
- IK08 impact resistance for dependable mechanical protection.
- Generous 1850 mm × 800 mm × 275 mm enclosure with three field widths.
- 432 space units provide extensive capacity for modular electrical distribution equipment.
- Flexible configuration with ABB metering fields, distribution fields, combination sets, CombiLine modules and mounting plates.
- Lateral and bottom expansion capability supports adaptable distribution system configurations.
Key Features
- ABB TwinLine-L series floor-standing empty cabinet.
- IP30 protection rating without door.
- IK08 mechanical impact resistance.
- Class I earthed construction.
- Durable sheet-steel enclosure and rear panel.
- RAL 7035 powder-coated finish.
- Supplied without a door as a basic enclosure.
- Top cable entry via a pre-cut flange opening.
- Bottom and side cable entry via pre-punched flange openings.
- Prepared for ABB metering fields, distribution fields, combination sets, CombiLine modules and mounting plates.
Flexible High-Capacity Enclosure for Electrical Distribution
The ABB TwinLine system provides a modular enclosure platform for professional low-voltage distribution installations. With three field widths and 432 space units, the TL312GB offers substantial internal capacity for protective devices, metering equipment, distribution components and associated wiring, while its sheet-steel construction provides a robust housing for indoor electrical equipment.
The TL312GB is pre-assembled for configuration with ABB metering and distribution fields, combination sets, CombiLine modules and mounting plates on compatible EDF or WR mounting frames. Its doorless basic configuration provides flexibility when building a customised distribution assembly, while top, bottom and side cable-entry provisions support efficient cable routing.
Typical Applications
- Commercial building electrical distribution systems.
- Industrial low-voltage distribution installations.
- Floor-standing sub-distribution boards.
- Metering and electrical distribution assemblies.
- Control and automation equipment enclosures.
- ABB CombiLine modular distribution systems.
