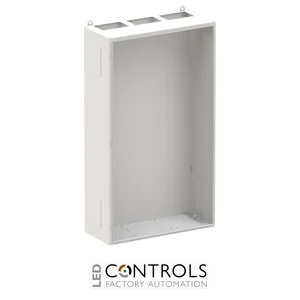

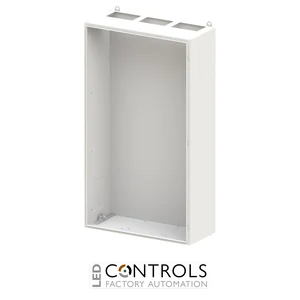

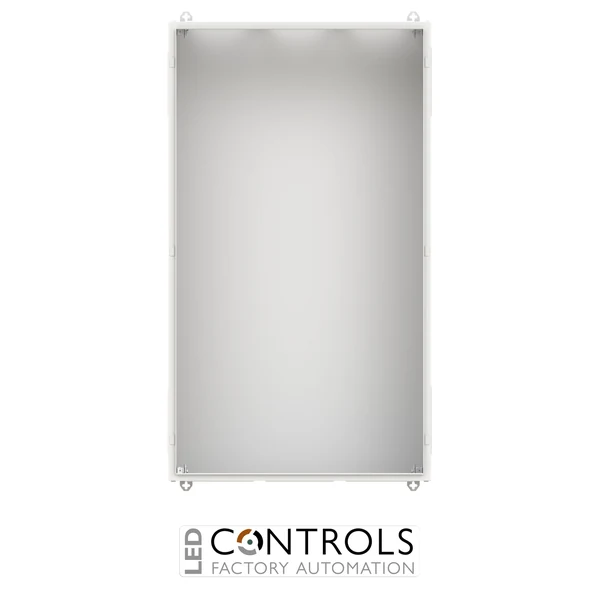

2CPX010388R9999 ABB TW309GB TwinLine IP30 Wall-Mounted Enclosure 1400 x 800 x 350 mm

2CPX010388R9999 ABB TW309GB TwinLine IP30 Wall-Mounted Enclosure 1400 x 800 x 350 mm

ABB TW309GB TwinLine IP30 doorless wall-mounted sub-distribution enclosure with 324 space units, three field widths and dimensions of 1400 x 800 x 350 mm.

SKU: 2CPX010388R9999Alt SKU: TW309GBMPN: 2CPX010388R9999
Price
List Price £779.77 ex VAT
Your Price (ex VAT)
£779.77
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £779.77
Trade pricing is personalised to your account

Manufacturer Lead Time

£779.77

Why Choose the ABB TW309GB IP30 TwinLine Wall-Mounted Enclosure?

The ABB TW309GB is a robust IP30 TwinLine wall-mounted sub-distribution enclosure designed to provide a flexible base cabinet for electrical distribution, metering, protection and control assemblies. The TW309GB is the doorless IP30 version of this TwinLine cabinet format, making it suitable for customised indoor panel configurations where the enclosure is completed with separately selected system components.

Manufactured from sheet steel with a powder-coated RAL 7035 finish, the TW309GB provides Class I earthed protection and IK08 impact resistance. The cabinet is supplied without a door and is prepared for structured installation using metering fields, distribution fields, combination sets, CombiLine modules or mounting plates on compatible EDF/WR mounting frames.

The TW309GB measures 800 mm wide × 1400 mm high × 350 mm deep and provides 324 space units across three field widths and nine grid units. ABB order code 2CPX010388R9999 identifies this specific TwinLine enclosure within the DESUJ Sub Distribution product group.

Key Advantages

  • Flexible IP30 doorless base enclosure for sub-distribution applications.
  • 324 space units provide substantial capacity for modular electrical equipment.
  • 350 mm enclosure depth provides generous internal installation space.
  • IK08 impact resistance and Class I earthed protection support dependable indoor installations.
  • Doorless configuration provides flexibility when building customised TwinLine assemblies.
  • Prepared for metering fields, distribution fields, combination sets, CombiLine modules and mounting plates.

Key Features

  • ABB TwinLine TW309GB wall-mounted enclosure.
  • IP30 protection rating.
  • IK08 impact resistance.
  • Class I earthed protection.
  • 1400 mm enclosure height.
  • 800 mm enclosure width.
  • 350 mm enclosure depth.
  • 324 space units with three field widths and nine grid units.
  • Robust sheet-steel enclosure and rear wall.
  • RAL 7035 powder-coated finish.
  • Supplied without a door for configurable TwinLine installations.
  • Top cable entry via prepared flange opening with additional flange provisions at the bottom and sides.

Reliable Housing for Electrical Distribution Systems

Wall-mounted sub-distribution enclosures such as the ABB TW309GB provide a structured base for assembling low-voltage switching, metering, protection and distribution systems. Its sheet-steel construction, IK08 impact resistance and Class I earthed protection provide a robust foundation for professional indoor electrical installations.

The ABB TwinLine system provides flexibility for customised distribution assemblies. The TW309GB is supplied without a door and is prepared for installation with metering and distribution fields, combination sets, CombiLine modules or mounting plates on EDF/WR mounting frames, allowing panel builders to configure the enclosure around the requirements of the electrical system.

Typical Applications

  • Commercial and industrial sub-distribution boards.
  • Customised low-voltage electrical distribution assemblies.
  • Metering and distribution installations.
  • Building services electrical systems.
  • Industrial control and protection installations.
  • Indoor TwinLine and CombiLine distribution systems.

Technical Specifications

Tick the specs you need, then view products that match.

IP Rating IP30
Device Type Enclosure / Cabinet
Product Series S&J TwinLine
Series TwinLine
ABB order code 2CPX010388R9999
Product group DESUJ Sub Distribution
Product type Wall-mounted sub-distribution base enclosure
Enclosure material Sheet steel
Rear wall material Sheet steel
Finish Powder-coated RAL 7035
Protection rating IP30
Protection class Class I, earthed
Impact resistance IK08
Door configuration Without door
Grid units 9
Field width 3
Space units 324
Dimensions (H × W × D) 1400 × 800 × 350 mm
Maximum installable weight 129 kg
Maximum operating temperature 55 °C
Application Indoor use
Applicable standards DIN EN 61439-1, DIN EN 61439-2, DIN EN 61439-3

Frequently Asked Questions

What is the ABB TW309GB used for?

The ABB TW309GB is a TwinLine wall-mounted base enclosure designed for customised indoor electrical sub-distribution, metering, protection and control assemblies.

What is the protection rating of the TW309GB?

The TW309GB has an IP30 protection rating together with IK08 impact resistance and Class I earthed protection.

What are the dimensions of the ABB TW309GB?

The TW309GB measures 1400 mm high × 800 mm wide × 350 mm deep.

Is the ABB TW309GB supplied with a door?

No. The TW309GB is supplied without a door and is designed as a configurable base enclosure for TwinLine electrical distribution assemblies.

What is the ABB order code for the TW309GB?

The ABB order code for the TW309GB wall-mounted enclosure is 2CPX010388R9999.
