Why Choose the ABB TZ101 52-Entry Gland Plate?

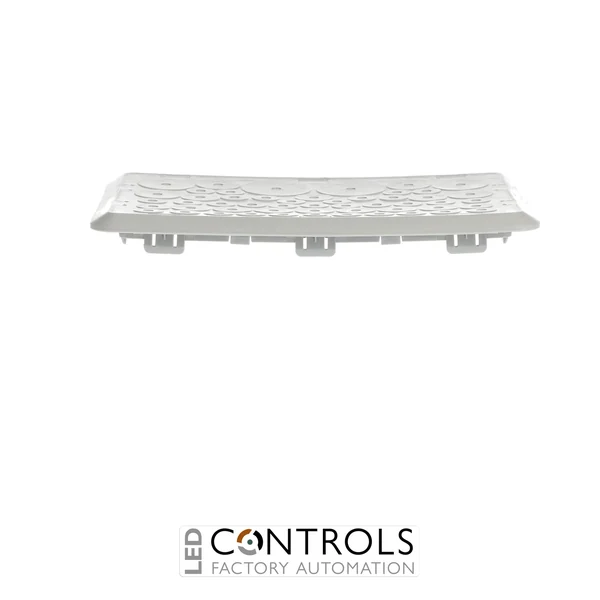

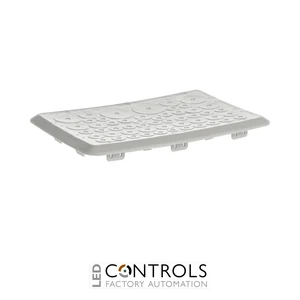

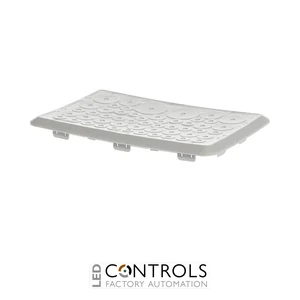

The ABB TZ101 is a plastic gland plate with 52 cable entries designed for cable entry into compatible ABB electrical enclosures and distribution systems. It provides an organised method of routing multiple cables through enclosure openings while supporting the environmental protection of installed electrical components.
The TZ101 is part of ABB’s enclosure accessory range for sub-distribution and CombiLine applications. The plastic flange is designed for installation in an enclosure top or bottom panel with a 197 × 121 mm cut-out, providing a practical interface for multiple incoming or outgoing cables.
With 52 cable entries, the TZ101 is particularly useful for distribution assemblies requiring numerous cable routes through a single flange position. ABB order code 2CPX010450R9999 identifies the single-piece TZ101 configuration within the DESUJ Sub Distribution product group.
Key Advantages
- Provides 52 cable entries for high-density cable routing.
- Designed for compatible ABB electrical enclosure and distribution systems.
- Suitable for installation in top or bottom enclosure panels.
- Plastic construction allows practical preparation of cable-entry points.
- Designed for a standard 197 × 121 mm panel cut-out.
- Supports enclosure cable management while helping maintain IP55 protection when correctly installed.
Key Features
- ABB TZ101 plastic gland plate.
- 52 cable-entry positions.
- Designed as an IP55 flange for open enclosure top or bottom sections.
- Compatible with a 197 × 121 mm cut-out.
- Plastic flange construction.
- Designed for routing multiple cables into electrical enclosures.
- Supplied as a single flange.
- ABB order code 2CPX010450R9999.
Organised Cable Entry for Electrical Enclosures
Gland plates such as the ABB TZ101 provide a structured interface between external cabling and equipment installed inside electrical enclosures. By grouping cable-entry positions within a dedicated flange, the accessory helps panel builders create organised cable routes while protecting the enclosure interior.
The TZ101 is designed for ABB enclosure systems with compatible top or bottom flange openings. Its 52-entry configuration is particularly useful where a large number of control, distribution or auxiliary cables must enter an enclosure through a compact and organised cable-management point.
Typical Applications
- Electrical sub-distribution enclosures.
- ABB CombiLine distribution assemblies.
- Control and automation panels.
- Low-voltage distribution systems.
- Multi-cable enclosure entry points.
- Panel building and electrical installation projects.
