Why Choose the ABB TZ102 TwinLine Gland Plate?

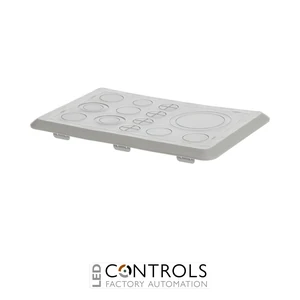

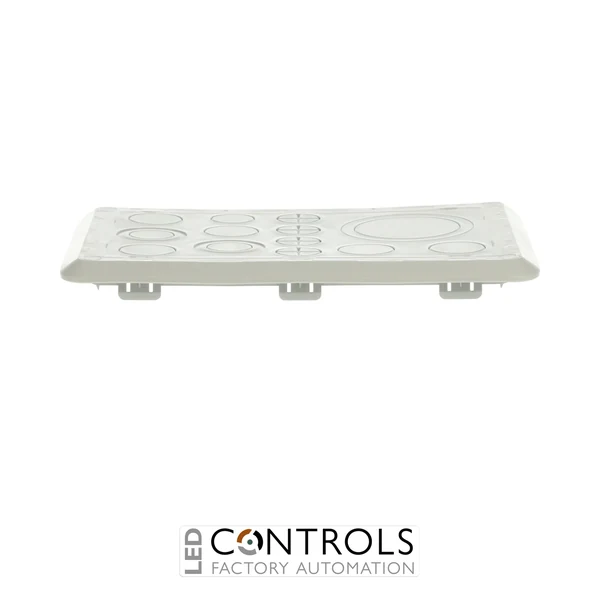

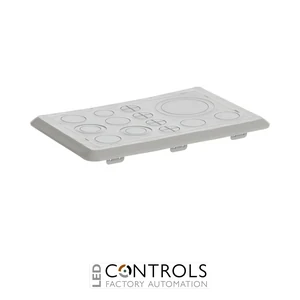

The ABB TZ102 is a dedicated TwinLine gland plate with 13 cable entries, designed to provide organised cable entry into compatible ABB electrical enclosures and distribution cabinets. It is manufactured from plastic and provides predefined metric gland positions for a practical, repeatable enclosure installation.
The TZ102 provides 13 gland entries in total: 1 × M63/M50, 2 × M32/M20, 5 × M25 and 5 × M20. This combination accommodates several common metric cable-gland sizes on one plate, helping installers route multiple power, control and auxiliary cables into a compatible enclosure.
Designed for the ABB TwinLine system, the TZ102 uses tool-free snap-in mounting and is suitable for compatible TwinLine-G metering cabinets as well as TwinLine wall-mounted and floor-standing cabinets. Its nominal dimensions are 223 mm wide × 147 mm high, providing a standardised cable-entry accessory for ABB distribution installations.
Key Advantages
- 13 predefined gland entries for organised multi-cable installation.
- Supports several common metric cable-gland sizes from M20 up to M63/M50.
- Durable plastic construction for electrical enclosure applications.
- Tool-free snap-in mounting simplifies installation.
- Designed specifically for compatible ABB TwinLine enclosures.
- Provides a neat and repeatable cable-entry solution for distribution assemblies.
Key Features
- ABB TwinLine gland plate.
- 13 gland entries in total.
- 1 × M63/M50 gland position.
- 2 × M32/M20 gland positions.
- 5 × M25 gland positions.
- 5 × M20 gland positions.
- Metric thread configuration.
- Plastic construction.
- Tool-free installation using snap-in technology.
- Suitable for compatible TwinLine wall-mounted and floor-standing enclosures.
Organised Cable Entry for ABB TwinLine Enclosures
A correctly selected gland plate provides a structured interface between incoming cables and the electrical equipment installed inside an enclosure. The ABB TZ102 combines multiple metric gland sizes on a single plate, allowing installers to accommodate different cable requirements while maintaining an orderly enclosure entry arrangement.
Its predefined gland configuration and snap-in installation make the TZ102 particularly useful for panel builders and electrical contractors working with compatible ABB TwinLine cabinets. The plate can be incorporated into wall-mounted or floor-standing enclosure configurations where multiple metric cable glands are required.
Typical Applications
- ABB TwinLine electrical enclosures.
- TwinLine-G metering cabinets.
- Wall-mounted distribution cabinets.
- Floor-standing distribution cabinets.
- Low-voltage switchgear and sub-distribution assemblies.
- Organised power, control and auxiliary cable entry.
