Why Choose the ABB TZ206 Espagnolette Rod Lock?

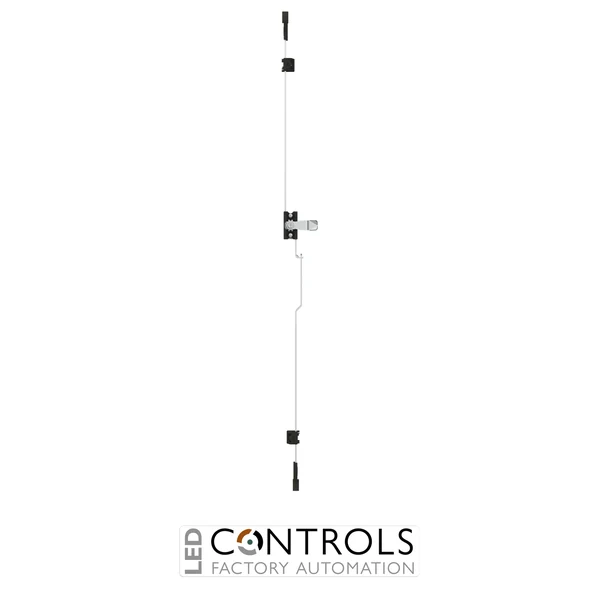

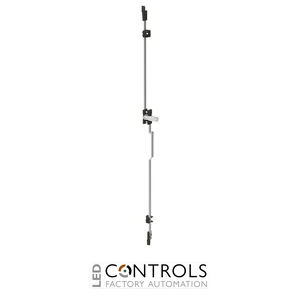

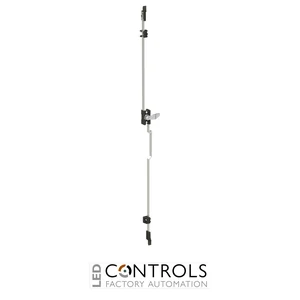

The ABB TZ206 is a purpose-designed espagnolette rod lock for TwinLine electrical cabinets, providing a secure mechanical closure system for compatible wall-mounted and floor-standing enclosures. Designed as part of ABB’s sub-distribution cabinet accessory range, the TZ206 is suitable for maintaining or replacing the rod-locking mechanism used within TwinLine cabinet systems.
The TZ206 is configured for 6 GU cabinet arrangements and has a nominal height of 900 mm. The assembly includes the lock body, providing the principal components required for the corresponding TwinLine rod-lock installation and helping restore dependable door closure when replacing an existing mechanism.
With nominal dimensions of 40 mm wide × 900 mm high × 20 mm deep, the TZ206 is specifically designed for compatibility with ABB TwinLine wall and floor-standing cabinets. Its dedicated cabinet-system design makes it a reliable choice for panel builders, electrical installers and maintenance engineers requiring an original ABB replacement locking component.
Key Advantages
- Purpose-designed espagnolette rod lock for ABB TwinLine cabinets.
- Suitable for 6 GU / 900 mm configurations.
- Supplied with lock body for the corresponding locking assembly.
- Compatible with TwinLine wall-mounted and floor-standing cabinets.
- Original ABB cabinet accessory for dependable system compatibility.
- Suitable for replacement and maintenance of existing TwinLine cabinet locking systems.
Key Features
- ABB TZ206 espagnolette closure / rod lock.
- 6 GU nominal configuration.
- 900 mm nominal height.
- 40 mm nominal width.
- 20 mm nominal depth.
- Rod-lock assembly supplied with lock body.
- Designed for ABB TwinLine wall and floor-standing cabinets.
- Suitable as a replacement component within compatible TwinLine cabinet systems.
- Supplied as one piece.
Reliable Cabinet Closure for ABB TwinLine Systems
Espagnolette rod-lock mechanisms provide secure multi-point-style mechanical closure for electrical cabinet doors by transferring the locking action through a rod assembly. In compatible electrical enclosures, this helps keep the cabinet door correctly secured while providing practical access for installation, inspection and maintenance.
The ABB TZ206 is specifically matched to compatible TwinLine wall-mounted and floor-standing cabinets. Its 6 GU / 900 mm format and included lock body make it suitable for replacing the corresponding original rod-lock assembly while retaining compatibility with the ABB enclosure system.
Typical Applications
- ABB TwinLine wall-mounted electrical cabinets.
- ABB TwinLine floor-standing electrical cabinets.
- Low-voltage sub-distribution enclosures.
- Replacement of existing cabinet rod-lock mechanisms.
- Electrical panel maintenance and refurbishment.
- Commercial and industrial distribution installations.
