Why Choose the ABB TZ501 Rod Lock Bumper Shoe?

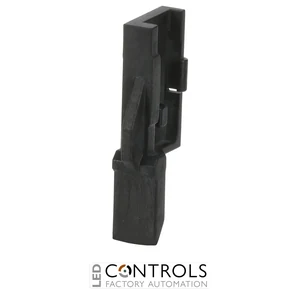

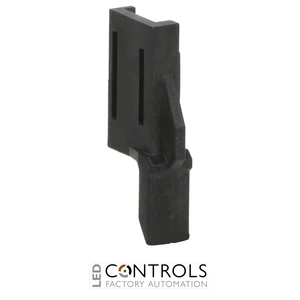

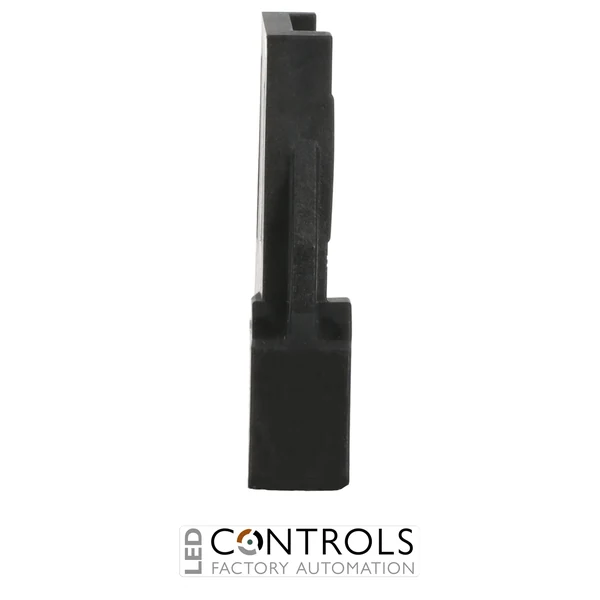

The ABB TZ501 is a genuine bumper shoe for rod locking mechanisms used with compatible ABB TwinLine wall-mounted and floor-standing cabinets. Designed as a replacement door-locking component, it provides the correct interface for the cabinet rod lock and helps maintain reliable operation of the enclosure closing mechanism.
As part of ABB’s TwinLine enclosure accessory and replacement-parts range, the TZ501 is specifically intended for TwinLine wall and floor-standing cabinets. Its compact plastic construction makes it a straightforward replacement when servicing or restoring an existing cabinet rod-lock assembly.
The TZ501 measures 50 mm high × 10 mm wide × 25 mm deep and is supplied as one piece. ABB identifies the component as a replacement part included in the original scope of delivery of applicable TwinLine cabinets, making it suitable for maintenance and replacement rather than enclosure expansion.
Key Advantages
- Genuine ABB replacement bumper shoe for rod locking mechanisms.
- Designed specifically for compatible TwinLine wall and floor-standing cabinets.
- Supports reliable operation of the enclosure door rod-lock system.
- Compact 50 × 10 × 25 mm dimensions.
- Durable plastic construction suitable for its mechanical guiding function.
- Direct replacement component for servicing existing ABB TwinLine enclosures.
Key Features
- ABB TZ501 enclosure replacement part.
- Designed as a bumper shoe for rod locks.
- Compatible with applicable ABB TwinLine wall and floor-standing cabinets.
- Replacement part included in the original scope of delivery of compatible cabinets.
- Plastic construction.
- 50 mm height.
- 10 mm width.
- 25 mm depth.
- Supplied as one piece.
Reliable Replacement for TwinLine Rod Lock Systems
Rod locking systems secure enclosure doors at multiple points and depend on correctly fitted mechanical components for smooth and dependable operation. The ABB TZ501 bumper shoe forms part of this mechanism, providing the appropriate interface for the rod lock in compatible TwinLine cabinets.
Using the correct ABB replacement component helps preserve the intended fit and operation of the enclosure locking system. The TZ501 is therefore particularly useful during cabinet servicing, refurbishment and maintenance where the original bumper shoe has become worn, damaged or lost.
Typical Applications
- ABB TwinLine wall-mounted cabinet maintenance.
- ABB TwinLine floor-standing cabinet maintenance.
- Rod-lock mechanism repair and servicing.
- Replacement of damaged or missing bumper shoes.
- Electrical distribution enclosure refurbishment.
- Preventive maintenance of cabinet door-locking systems.
