Why Choose the ABB TZ504 Latch Handle & Plate Without Lock?

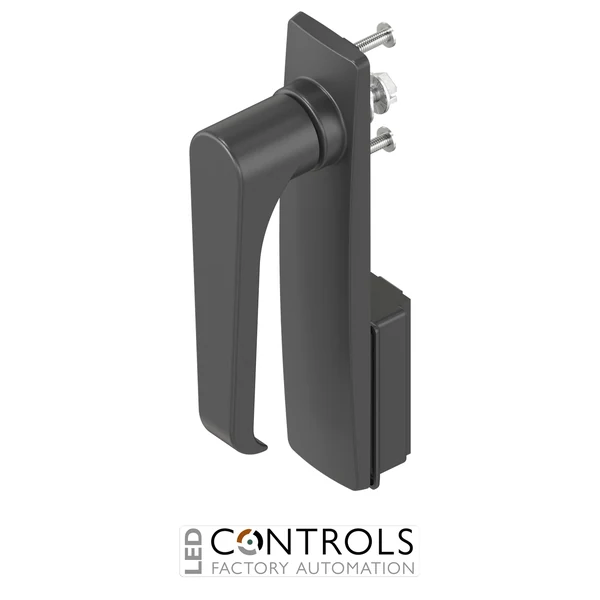

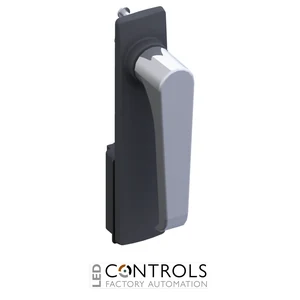

The ABB TZ504 is a latch handle with latch plate, supplied without a lock, designed as a door-closing accessory for compatible ABB electrical enclosure systems. It provides a practical operating handle for enclosure doors where a locking cylinder or integrated lock is not required.
Part of ABB’s TwinLine enclosure accessory range, the TZ504 provides a purpose-designed solution for operating compatible cabinet doors and can be used in conjunction with the appropriate ABB espagnolette closure. Its non-locking configuration makes it suitable for installations where straightforward enclosure access is preferred.
The TZ504 is supplied as one latch-handle assembly and has a net weight of approximately 0.278 kg. ABB order code 2CPX010488R9999 identifies this specific accessory within the DESUJ Sub Distribution product group.
Key Advantages
- Purpose-designed latch handle and plate for ABB enclosure doors.
- Supplied without a lock for applications where unrestricted handle operation is required.
- Compatible with ABB TwinLine enclosure systems.
- Can be combined with the appropriate ABB espagnolette closure for enclosure-door operation.
- Compact replacement or configuration accessory for professional panel-building applications.
- Genuine ABB accessory identified by order code 2CPX010488R9999.
Key Features
- ABB TZ504 latch handle.
- Supplied with latch plate.
- Without lock.
- Designed for compatible ABB enclosure doors.
- Suitable for TwinLine cabinet systems.
- Latch-style handle configuration.
- Suitable for use with compatible ABB espagnolette closures.
- Supplied as 1 piece.
Practical Door Operation for Electrical Enclosures
Door-operating accessories are an important part of professional electrical enclosure systems, providing convenient access to distribution, protection and control equipment during installation and maintenance. The ABB TZ504 provides a dedicated non-locking latch-handle arrangement for compatible ABB enclosure doors.
The TZ504 can be integrated with a compatible ABB espagnolette closure to form part of the cabinet door-closing mechanism. Its lock-free design is particularly suitable for installations where enclosure access does not require an integrated keyed locking function.
Typical Applications
- ABB TwinLine electrical enclosures.
- Sub-distribution cabinets and boards.
- Low-voltage electrical panel assemblies.
- Building-services distribution systems.
- Industrial control and distribution enclosures.
- Replacement or completion of compatible enclosure door-closing systems.
