Why Choose the ABB TZ505 T-Handle with Plate and Lock?

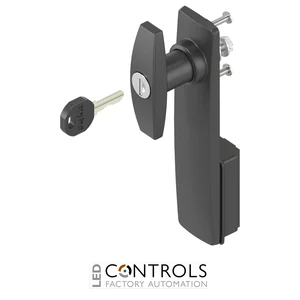

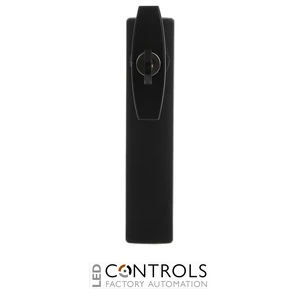

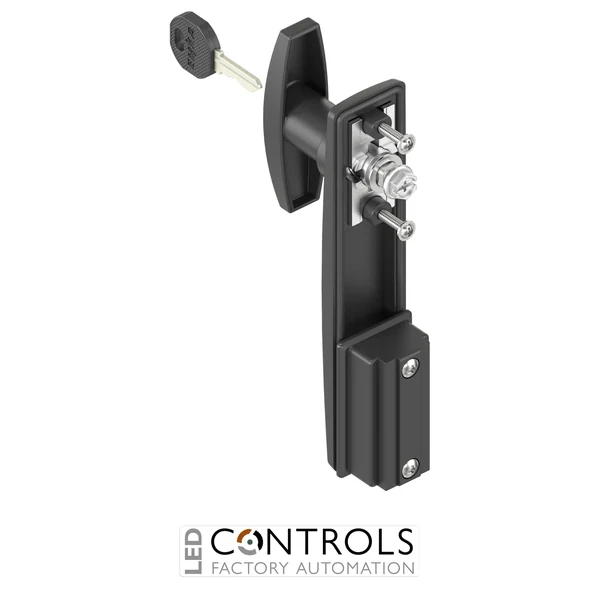

The ABB TZ505, order code 2CPX010489R9999, is a T-handle with latch plate and lock designed for secure operation of compatible ABB electrical distribution enclosures. It forms part of ABB’s enclosure accessory range for sub-distribution systems and provides a practical locking handle solution for professional electrical cabinet installations.
Designed for compatibility with ABB TwinLine wall-mounted and floor-standing cabinets as well as compatible ComfortLine distribution enclosures, the TZ505 combines the operating handle, plate and lock in one accessory. The integrated locking function helps restrict unauthorised access to electrical distribution equipment while providing convenient access for authorised personnel.
The TZ505 is supplied as one T-handle assembly with plate and lock. ABB also offers the closely related TZ506 version without a lock, making the TZ505 the appropriate choice where a lockable enclosure handle is required.
Key Advantages
- Purpose-designed T-handle with plate and lock for ABB distribution enclosures.
- Integrated locking function helps control access to electrical cabinet interiors.
- Compatible with ABB TwinLine wall-mounted and floor-standing cabinets.
- Suitable for compatible ABB ComfortLine wall cabinets and compact distribution boards.
- Provides convenient T-handle operation for enclosure doors.
- Genuine ABB enclosure accessory for professional electrical distribution installations.
Key Features
- ABB TZ505 enclosure accessory.
- T-handle operating design.
- Supplied with latch plate and lock.
- Lockable configuration for controlled cabinet access.
- Designed for compatible ABB electrical distribution enclosures.
- Suitable for TwinLine wall-mounted and floor-standing cabinet systems.
- Compatible with selected ComfortLine distribution enclosures.
- Supplied as one complete handle accessory.
Secure Access for Electrical Distribution Enclosures
Lockable enclosure handles provide a convenient means of controlling access to electrical distribution equipment. The ABB TZ505 combines a T-shaped operating handle with a plate and lock, allowing compatible cabinet doors to be opened conveniently by authorised personnel while helping prevent unintended or unauthorised access.
The TZ505 is designed as part of ABB’s coordinated enclosure accessory system and can be used with compatible TwinLine and ComfortLine cabinet configurations. Depending on the enclosure and installation arrangement, additional compatible locking components such as an espagnolette closure or installation set may be required.
Typical Applications
- ABB TwinLine wall-mounted distribution cabinets.
- ABB TwinLine floor-standing distribution cabinets.
- Compatible ABB ComfortLine wall-mounted cabinets.
- Compatible compact distribution boards.
- Low-voltage electrical distribution enclosures.
- Replacement or configuration of cabinet door locking systems.
