Why Choose the ABB TZ506 T-Handle with Latch Plate?

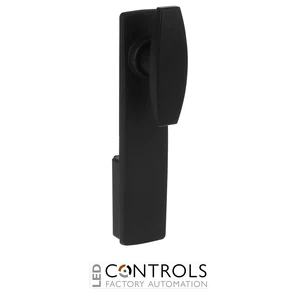

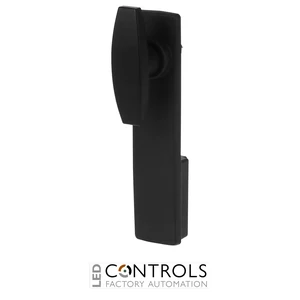

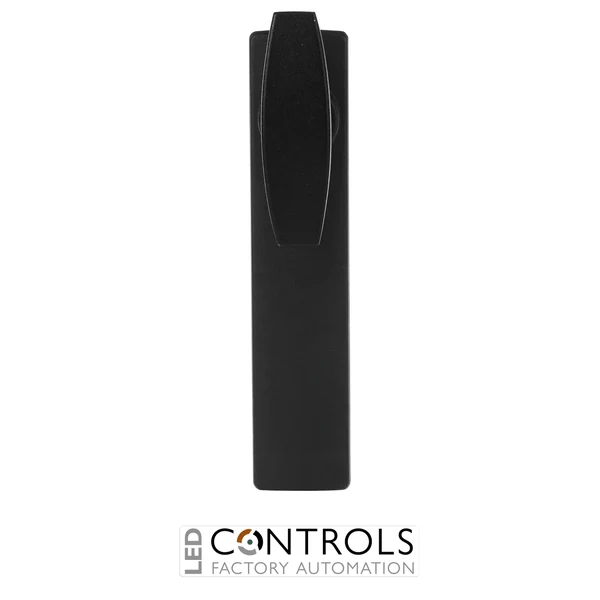

The ABB TZ506, order code 2CPX010490R9999, is a T-handle with latch plate and without lock designed for compatible ABB electrical distribution enclosures. Part of ABB’s sub-distribution enclosure accessory range, it provides a practical operating handle solution for professional electrical cabinet installations where an integrated lock is not required.
The TZ506 is designed for use with compatible ABB TwinLine and ComfortLine distribution enclosures. Its T-handle format provides convenient manual operation of the enclosure door, while the supplied latch plate forms part of the cabinet closing arrangement. The lock-free configuration is particularly useful where unrestricted handle operation is required or where access control is provided by another part of the installation.
Supplied as one T-handle with latch plate, the TZ506 can be combined with a compatible ABB espagnolette closure according to the cabinet height and configuration. An appropriate installation set and espagnolette closure are ordered separately where required for the enclosure assembly.
Key Advantages
- Purpose-designed T-handle with latch plate for compatible ABB distribution enclosures.
- Lock-free configuration for applications where an integrated handle lock is not required.
- Suitable for compatible ABB TwinLine and ComfortLine enclosure systems.
- Provides straightforward manual operation of electrical cabinet doors.
- Compatible with ABB height-specific espagnolette closure systems.
- Genuine ABB enclosure accessory for professional low-voltage distribution installations.
Key Features
- ABB TZ506 enclosure accessory.
- T-handle operating design.
- Supplied with latch plate.
- Without lock.
- Designed for compatible ABB electrical distribution enclosures.
- Suitable for compatible TwinLine wall-mounted and floor-standing cabinet systems.
- Suitable for compatible ComfortLine distribution enclosures.
- Compatible with ABB CZT-series espagnolette closures.
- Supplied as one handle accessory.
Practical Door Operation for Electrical Distribution Enclosures
Enclosure handles provide the operating interface between authorised personnel and electrical distribution cabinets. The ABB TZ506 combines a T-shaped handle with a latch plate, providing convenient door operation without incorporating an integrated lock into the handle assembly.
The TZ506 forms part of ABB’s coordinated enclosure accessory system and can be used with compatible espagnolette closures selected according to the enclosure height. This modular approach allows installers and panel builders to configure the cabinet closing system to suit the particular TwinLine or ComfortLine distribution enclosure being assembled.
Typical Applications
- Compatible ABB TwinLine wall-mounted distribution cabinets.
- Compatible ABB TwinLine floor-standing distribution cabinets.
- ABB ComfortLine distribution enclosures.
- Low-voltage electrical distribution cabinets.
- Metering and sub-distribution enclosures.
- Replacement or configuration of electrical cabinet door operating systems.
