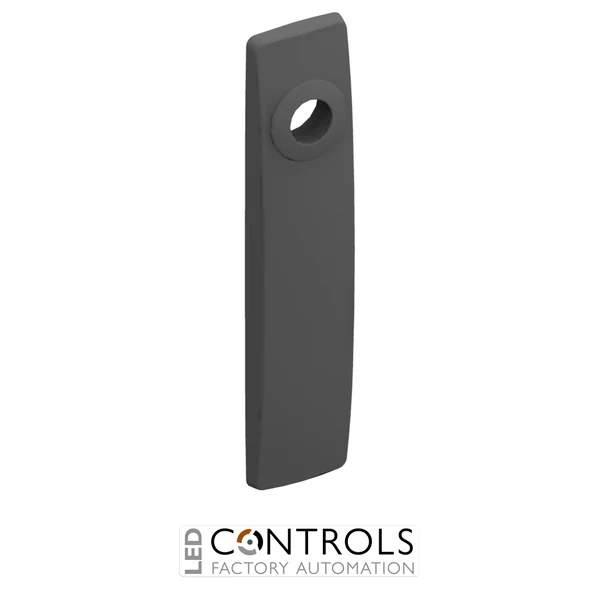

2CPX010492R9999 ABB TZ508 TwinLine Latch Plate for Triangular and Square Operating Pins

2CPX010492R9999 ABB TZ508 TwinLine Latch Plate for Triangular and Square Operating Pins

ABB TZ508 is a latch plate for triangular and square operating pins and the corresponding Daimler-Benz insert, designed for compatible ABB TwinLine and ComfortLine electrical distribution enclosures.

SKU: 2CPX010492R9999Alt SKU: TZ508MPN: 2CPX010492R9999
Price
List Price £10.90 ex VAT
Your Price (ex VAT)
£10.90
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £10.90
Trade pricing is personalised to your account

Manufacturer Lead Time

£10.90

Why Choose the ABB TZ508 TwinLine Latch Plate?

The ABB TZ508 is a dedicated latch plate for triangular and square operating pins, designed for compatible ABB electrical distribution enclosures. It also supports the appropriate Daimler-Benz insert, providing a flexible alternative locking arrangement for professional enclosure and cabinet installations.

Designed as part of the ABB enclosure accessory system, the TZ508 is suitable for TwinLine wall-mounted and floor-standing cabinets as well as compatible ComfortLine wall cabinets and compact distribution boards. Its purpose-designed construction allows installers to configure cabinet access using the required triangular, square or Daimler-Benz operating insert.

The TZ508 measures 100 mm wide × 25 mm high × 170 mm deep, has a net weight of approximately 0.076 kg and is finished in a colour similar to RAL 9005. For applicable locking configurations, the compatible ABB CZT60 installation set is ordered separately.

Key Advantages

  • Purpose-designed ABB enclosure locking accessory.
  • Supports triangular and square operating pins.
  • Also suitable for the corresponding Daimler-Benz insert.
  • Compatible with selected ABB TwinLine and ComfortLine enclosure systems.
  • Suitable for new cabinet configurations, maintenance and replacement applications.
  • Provides a coordinated alternative to generic enclosure locking components.

Key Features

  • ABB TZ508 latch plate.
  • Designed for triangular operating pins.
  • Designed for square operating pins.
  • Suitable for a Daimler-Benz insert.
  • Colour similar to RAL 9005.
  • Compatible with TwinLine wall-mounted cabinets.
  • Compatible with TwinLine floor-standing cabinets.
  • Suitable for compatible ComfortLine wall cabinets and compact distribution boards.
  • Compatible CZT60 installation set available separately for applicable configurations.

Flexible Locking Configuration for ABB Distribution Enclosures

Electrical distribution enclosures may require different operating-pin profiles depending on installation requirements and access-control practices. The ABB TZ508 provides the dedicated latch plate for triangular and square operating pins and can also be used with the appropriate Daimler-Benz insert, enabling the locking arrangement to be configured around the required operating method.

Its compatibility with selected TwinLine and ComfortLine cabinets makes the TZ508 useful for panel builders, electrical contractors and maintenance teams working across ABB distribution enclosure systems. Where the installation requires it, the ABB CZT60 installation set is specified separately to complete the applicable locking arrangement.

Typical Applications

  • ABB TwinLine wall-mounted electrical cabinets.
  • ABB TwinLine floor-standing electrical cabinets.
  • Compatible ABB ComfortLine wall cabinets.
  • Compatible compact distribution boards.
  • Low-voltage sub-distribution enclosure locking systems.
  • Replacement and conversion of compatible cabinet locking arrangements.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Enclosure / Cabinet
Product Series S&J TwinLine
Product type Latch plate / key plate for enclosure locking system
Operating pin compatibility Triangular and square
Additional insert compatibility Daimler-Benz insert
Dimensions (W × H × D) 100 × 25 × 170 mm
Net weight 0.076 kg
Colour Similar to RAL 9005
Handle type Other
Compatibility ABB TwinLine wall-mounted and floor-standing cabinets; compatible ComfortLine wall cabinets and compact distribution boards
Related installation set CZT60, ordered separately where required
Packaging quantity 1 piece
EAN 4011617104926
ETIM classification EC000327 – Lock system for enclosure/cabinet
Country of origin Germany
ABB order code 2CPX010492R9999
Product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB TZ508?

The ABB TZ508 is a latch plate / key plate for compatible ABB enclosure locking systems, designed for triangular and square operating pins as well as the appropriate Daimler-Benz insert.

Which operating pins are compatible with the TZ508?

The TZ508 is designed for triangular and square operating pins and also supports the corresponding Daimler-Benz insert.

Which ABB enclosure systems can use the TZ508?

The TZ508 is suitable for compatible ABB TwinLine wall-mounted and floor-standing cabinets as well as compatible ComfortLine wall cabinets and compact distribution boards.

What are the dimensions of the ABB TZ508?

The TZ508 measures 100 mm wide × 25 mm high × 170 mm deep.

What colour is the ABB TZ508?

The TZ508 is supplied in a colour similar to RAL 9005.

Does the TZ508 require any additional installation components?

For applicable locking configurations, the ABB CZT60 installation set is ordered separately.

What is the ABB order code for the TZ508?

The ABB order code for the TZ508 latch plate is 2CPX010492R9999.
