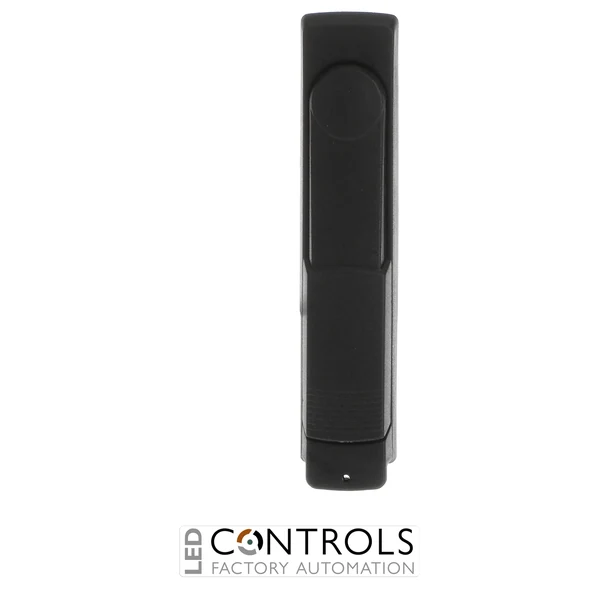

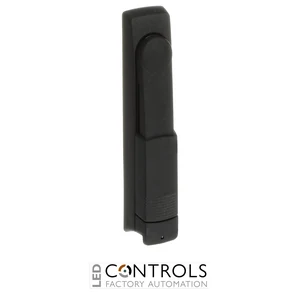

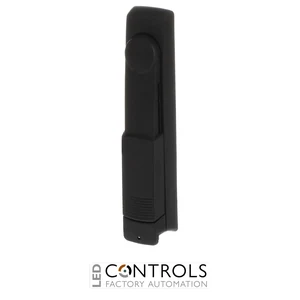

Why Choose the ABB TZ510 Swivel Handle?
The ABB TZ510 is a purpose-designed swivel handle for ABB TwinLine electrical enclosures, providing a convenient cylinder-operated locking interface for compatible wall-mounted and floor-standing cabinets. As part of the ABB TwinLine enclosure accessory range, it offers a practical replacement or configuration option for professional low-voltage distribution installations.
The TZ510 is designed to accept a 40 mm profile half-cylinder with a 30/10 configuration, allowing the enclosure locking system to be matched to site-specific access and security requirements. A sealable protective cap is incorporated into the handle arrangement for additional control over enclosure access.
Suitable for TwinLine wall-mounted and floor-standing cabinets, the TZ510 uses a rotary swivel-handle design for straightforward operation. The handle is supplied as one unit and can also be used with the compatible ABB ZH142 dummy insert when a profile half-cylinder is not required.
Key Advantages
- Purpose-designed swivel handle for ABB TwinLine enclosures.
- Suitable for 40 mm profile half-cylinders in 30/10 configuration.
- Compatible with TwinLine wall-mounted and floor-standing cabinets.
- Integrated sealable cap supports controlled enclosure access.
- Cylinder-operated closure provides flexibility for site-specific locking systems.
- Compatible with the ABB ZH142 dummy insert when a cylinder is not required.
Key Features
- ABB TZ510 TwinLine accessory.
- Rotary swivel-handle design.
- Designed for a 40 mm (30/10) profile half-cylinder.
- Cylinder-type locking arrangement.
- Includes a sealable protective cap.
- Suitable for ABB TwinLine wall-mounted cabinets.
- Suitable for ABB TwinLine floor-standing cabinets.
- Can accept the optional ZH142 dummy insert instead of a profile half-cylinder.
- Supplied as one swivel handle.
Practical Access Control for Electrical Enclosures
A suitable enclosure handle provides convenient access to electrical distribution equipment while supporting controlled cabinet closure. The ABB TZ510 allows a compatible profile half-cylinder to be incorporated into the TwinLine cabinet locking system, enabling installers and facility operators to select a cylinder appropriate to their access-control requirements.
The swivel-handle format provides straightforward operation and integrates with compatible ABB TwinLine wall-mounted and floor-standing enclosures. Where a locking cylinder is unnecessary, the associated ZH142 dummy insert can be fitted in place of the profile half-cylinder.
Typical Applications
- ABB TwinLine wall-mounted electrical enclosures.
- ABB TwinLine floor-standing cabinets.
- Low-voltage sub-distribution boards.
- Electrical cabinet locking systems.
- Commercial building distribution installations.
- Industrial electrical distribution enclosures.
