Why Choose the ABB TZ511 Rod Guide?

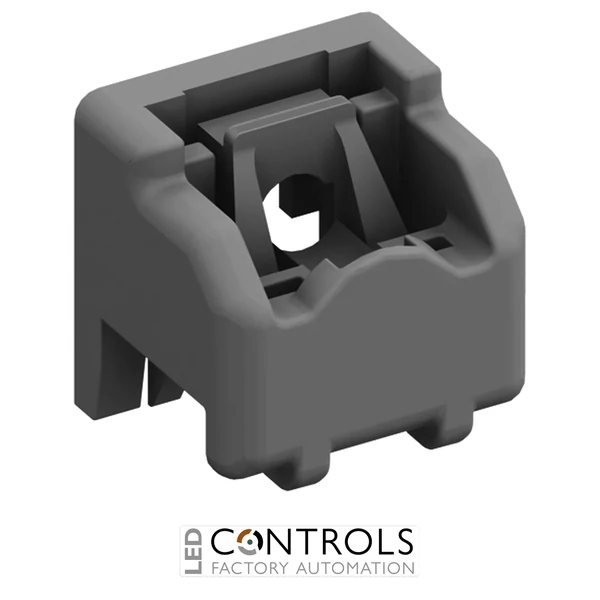

The ABB TZ511 is a compact rod guide for the locking mechanism of ABB TwinLine electrical enclosures. Designed as a replacement component within the TwinLine cabinet system, it guides and supports the locking rod to help maintain reliable operation of the enclosure door locking assembly.
The TZ511 is suitable for ABB TwinLine wall-mounted and floor-standing cabinets and is specifically intended for use with the enclosure rod-lock system. Its purpose-designed construction allows the locking rod to remain correctly guided during operation, supporting smooth and dependable cabinet closure.
Manufactured from plastic, the TZ511 has compact nominal dimensions of 20 mm × 20 mm × 20 mm. It is supplied as one replacement rod guide and is part of ABB's coordinated range of TwinLine locking-system components.
Key Advantages
- Purpose-designed rod guide for ABB TwinLine locking systems.
- Suitable for TwinLine wall-mounted and floor-standing cabinets.
- Supports correct guidance and alignment of the enclosure locking rod.
- Compact 20 mm × 20 mm × 20 mm component.
- Durable plastic construction.
- Available as a dedicated replacement component for TwinLine cabinet locking assemblies.
Key Features
- ABB TZ511 TwinLine accessory.
- Rod guide for rod-lock mechanisms.
- Designed for ABB TwinLine wall-mounted cabinets.
- Designed for ABB TwinLine floor-standing cabinets.
- 20 mm nominal width.
- 20 mm nominal height.
- 20 mm nominal depth.
- Plastic construction.
- Replacement part for compatible enclosure locking systems.
- Supplied as one rod guide.
Reliable Guidance for Enclosure Rod Locks
Rod-lock mechanisms use vertically moving rods to secure electrical enclosure doors at multiple points. A correctly positioned guide supports the locking rod during movement and helps maintain alignment throughout repeated opening and closing of the cabinet.
The ABB TZ511 is specifically designed for this function within compatible TwinLine wall-mounted and floor-standing cabinets. As a dedicated replacement component, it allows the rod guide to be renewed without replacing the complete enclosure locking arrangement.
Typical Applications
- ABB TwinLine wall-mounted electrical enclosures.
- ABB TwinLine floor-standing cabinets.
- Electrical enclosure rod-lock mechanisms.
- Replacement and maintenance of cabinet locking systems.
- Low-voltage sub-distribution boards.
- Commercial and industrial electrical distribution enclosures.
