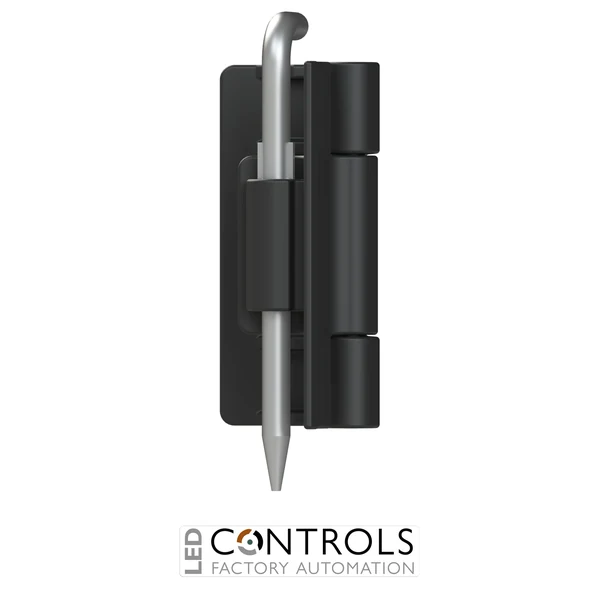

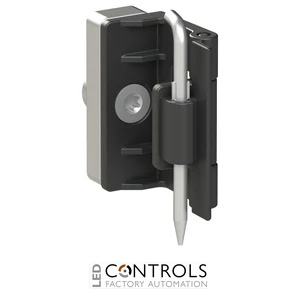

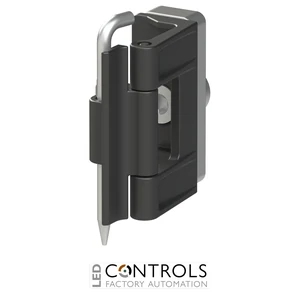

Why Choose the ABB TZ607 180° Door Hinge?
The ABB TZ607 is a purpose-designed 180° door hinge for ABB TwinLine electrical cabinets, providing a durable and practical hinge solution for compatible wall-mounted and floor-standing enclosures. Part of ABB’s sub-distribution cabinet accessory range, the TZ607 uses an external pivot arrangement to provide wide door opening and improved access to equipment installed inside the cabinet.
With a maximum 180° opening angle, the TZ607 allows the cabinet door to swing well clear of the working area. This helps provide convenient access during cabinet assembly, equipment installation, commissioning, inspection and maintenance. Its replaceable design also supports straightforward servicing and alteration of compatible TwinLine cabinet door arrangements.
The TZ607 is an externally mounted aluminium hinge with a painted finish and RAL 9005 black colour. Designed specifically for compatible ABB TwinLine cabinets, it provides an original ABB solution for replacing or configuring the corresponding 180° door-hinge assembly.
Key Advantages
- Purpose-designed 180° door hinge for ABB TwinLine cabinets.
- 180° maximum opening angle provides excellent access to installed equipment.
- External pivot arrangement allows the cabinet door to open clear of the working area.
- Suitable for compatible TwinLine wall-mounted and floor-standing cabinets.
- Durable aluminium construction with painted finish.
- Original ABB cabinet component for dependable system compatibility.
Key Features
- ABB TZ607 180° door hinge.
- 180° maximum door-opening angle.
- External hinge design.
- Designed for ABB TwinLine wall-mounted and floor-standing cabinets.
- Aluminium construction.
- Painted surface finish.
- RAL 9005 black colour.
- Simple installation and replacement for compatible cabinet systems.
- Supplied as one hinge.
Improved Access for ABB TwinLine Cabinets
Wide-opening cabinet hinges help improve accessibility during electrical installation and maintenance by allowing the enclosure door to move away from the working area. The TZ607’s external pivot and 180° opening capability provide convenient access to distribution equipment, wiring and other components installed within compatible ABB TwinLine cabinets.
The ABB TZ607 is designed for straightforward integration and replacement within the TwinLine cabinet system. Its wide opening angle is particularly useful during cabinet expansion, commissioning, operation and maintenance, while the original ABB design helps ensure compatibility with the intended enclosure platform.
Typical Applications
- ABB TwinLine wall-mounted electrical cabinets.
- ABB TwinLine floor-standing electrical cabinets.
- Low-voltage sub-distribution enclosures.
- Replacement of existing TwinLine cabinet door hinges.
- Electrical panel maintenance and refurbishment.
- Commercial and industrial electrical distribution installations.
