Why Choose the ABB TZB209 TwinLine Steel-Sheet Door?

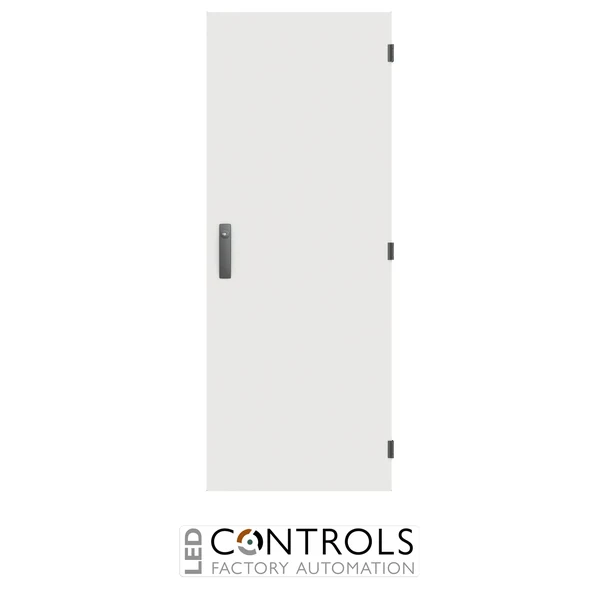

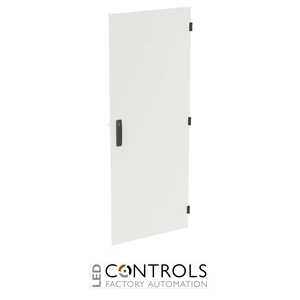

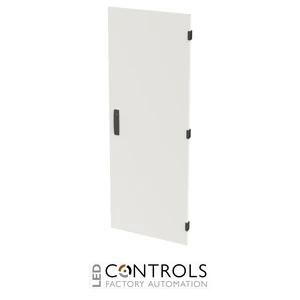

The ABB TZB209, order code 2CPX010540R9999, is a blind steel-sheet enclosure door designed for compatible ABB TwinLine electrical distribution cabinets. With a configuration of 2 panel widths (2PW) and 9 grid units (9GU), it provides a robust closure solution for professional low-voltage sub-distribution installations.
Manufactured from powder-coated sheet steel, the TZB209 features a light-grey RAL 7035 finish and is designed to provide IP55 protection when correctly fitted to the appropriate compatible enclosure. The solid blind-door construction conceals and protects installed electrical equipment while maintaining the clean appearance of the TwinLine cabinet system.
The TZB209 measures approximately 1393 mm high × 539 mm wide × 27 mm deep and incorporates 180° door hinges for convenient access during installation and maintenance. It is equipped with a rod closure and standard 3 mm double-bit closure, making it a practical replacement or configuration component for compatible ABB TwinLine cabinets.
Key Advantages
- Genuine ABB TwinLine blind steel-sheet door for electrical distribution cabinets.
- 2PW × 9GU configuration for compatible TwinLine enclosures.
- Helps provide IP55 enclosure protection when correctly installed with the appropriate cabinet.
- Durable powder-coated sheet-steel construction.
- RAL 7035 light-grey finish matches compatible ABB enclosure systems.
- 180° hinge opening provides convenient access to installed electrical equipment.
- Rod closure with standard 3 mm double-bit closure for practical cabinet access.
Key Features
- ABB TZB209 blind enclosure door.
- 2 panel widths (2PW).
- 9 grid units (9GU).
- Solid sheet-steel construction.
- Powder-coated surface finish.
- RAL 7035 grey colour.
- IP55 protection capability with the appropriate compatible enclosure.
- 180° door hinges.
- Rod closure mechanism.
- Standard 3 mm double-bit closure.
- Blind door without viewing window.
Robust Door for ABB TwinLine Distribution Cabinets
ABB TwinLine enclosure components provide a coordinated platform for professional low-voltage distribution installations. The TZB209 forms the protective front closure of compatible two-panel-width cabinets, helping shield installed switchgear, protective devices, metering equipment and wiring while providing straightforward access when servicing is required.
The solid steel-sheet construction is particularly suitable where visibility of internal components is unnecessary. Its wide-opening hinges simplify installation and maintenance, while the rod and double-bit closure arrangement provides a secure and practical means of keeping the cabinet closed during normal operation.
Typical Applications
- Compatible ABB TwinLine wall-mounted cabinets.
- Compatible ABB TwinLine floor-standing cabinets.
- Low-voltage sub-distribution boards.
- Commercial building electrical distribution systems.
- Industrial electrical distribution installations.
- Replacement or configuration of compatible TwinLine cabinet doors.
