Why Choose the ABB TZB206R Right Door?

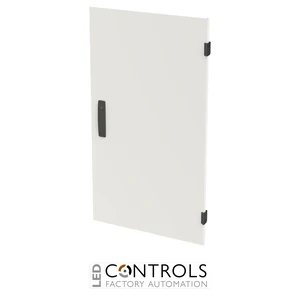

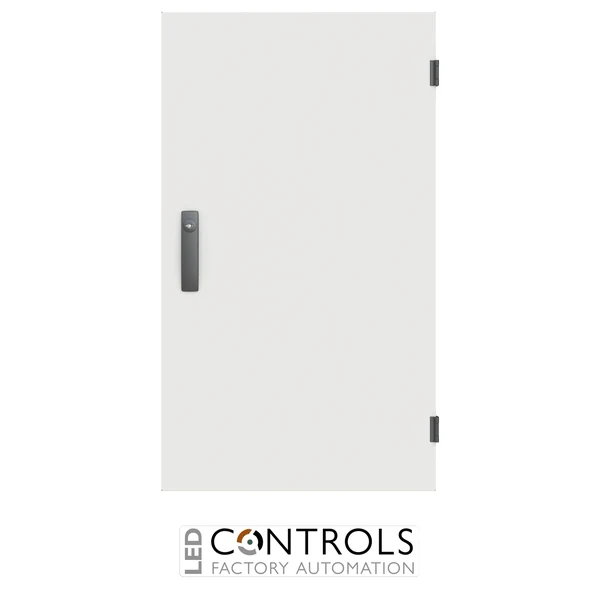

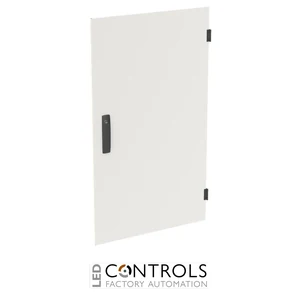

The ABB TZB206R is a purpose-designed right-hand steel door for ABB TwinLine electrical enclosures. It is configured for 2-panel-width (2PW), 6-grid-unit (6GU) applications and provides the right-hand leaf for compatible TwinLine double-door wall-mounted cabinets.
Manufactured from sheet steel, the TZB206R has a durable powder-coated RAL 7035 light-grey finish and forms part of an enclosure arrangement rated to IP55. The door incorporates a rod-locking mechanism with ABB's standard 3 mm double-bit lock, providing practical and secure access to installed distribution equipment.
The TZB206R measures approximately 539 mm wide × 943 mm high × 27 mm deep and provides a 180° opening angle. It is suitable for compatible ABB TwinLine TW/L/G406 and TW/L/G506 wall-mounted cabinets, making it suitable for original enclosure configuration or replacement of the corresponding right-hand door.
Key Advantages
- Purpose-designed right-hand door for ABB TwinLine enclosures.
- Configured for 2-panel-width (2PW), 6-grid-unit (6GU) applications.
- Robust sheet-steel construction with powder-coated finish.
- IP55 enclosure protection when correctly installed in its compatible TwinLine configuration.
- 180° door opening provides convenient access to installed equipment.
- Rod-locking mechanism with standard 3 mm double-bit lock.
Key Features
- ABB TZB206R TwinLine accessory.
- Right-hand blind steel door.
- 2PW configuration.
- 6GU configuration.
- Powder-coated RAL 7035 light-grey finish.
- 539 mm width × 943 mm height × 27 mm depth.
- Double-door enclosure configuration.
- 180° opening angle.
- Rod-locking mechanism.
- Standard 3 mm double-bit lock.
- Suitable for compatible TwinLine TW/L/G406 and TW/L/G506 wall cabinets.
Coordinated Door Solution for TwinLine Enclosures
ABB TwinLine cabinets use coordinated enclosure components to provide secure access to low-voltage distribution equipment while maintaining the mechanical protection of the complete assembly. Wider TwinLine cabinet configurations use separate left- and right-hand door leaves to provide convenient access across the enclosure opening.
The TZB206R provides the right-hand component of the specified 2PW 6GU double-door arrangement. Its steel construction, rod locking, standard double-bit closure and 180° opening angle make it suitable for both original cabinet configuration and replacement applications.
Typical Applications
- ABB TwinLine TW/L/G406 wall-mounted cabinets.
- ABB TwinLine TW/L/G506 wall-mounted cabinets.
- Low-voltage sub-distribution enclosures.
- Double-door TwinLine cabinet configurations.
- Replacement of damaged right-hand enclosure doors.
- Commercial and industrial electrical distribution installations.
