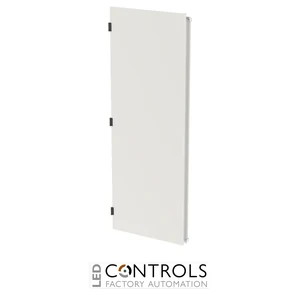

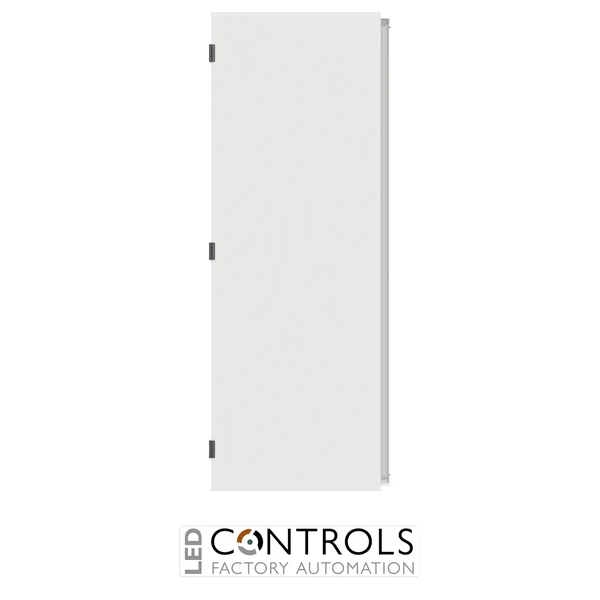

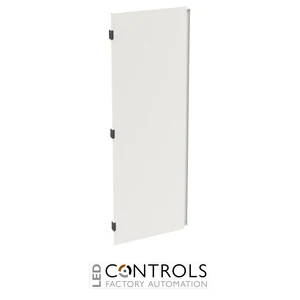

2CPX010559R9999 ABB TZB209L TwinLine Left-Hand Blind Door 2PW 9GU

2CPX010559R9999 ABB TZB209L TwinLine Left-Hand Blind Door 2PW 9GU

ABB TZB209L is a RAL 7035 powder-coated sheet-steel left-hand blind door for compatible TwinLine 2PW 9GU double-door enclosure configurations with IP55 protection and a standard 3 mm double-bit rod-locking system.

SKU: 2CPX010559R9999Alt SKU: TZB209LMPN: 2CPX010559R9999
Price
List Price £134.65 ex VAT
Your Price (ex VAT)
£134.65
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £134.65
Trade pricing is personalised to your account

Manufacturer Lead Time

£134.65

Why Choose the ABB TZB209L TwinLine Left-Hand Blind Door?

The ABB TZB209L is a purpose-designed left-hand sheet-steel blind door for compatible ABB TwinLine electrical enclosures. Configured for 2 panel widths (2 PW) and 9 grid units (9 GU), it provides the left-hand door section required for compatible double-door TwinLine cabinet arrangements.

Manufactured from sheet steel with a durable RAL 7035 powder-coated finish, the TZB209L is designed for an IP55 enclosure configuration when correctly fitted to its compatible cabinet. A rod-locking mechanism with ABB's standard 3 mm double-bit lock provides controlled access, while the 180° opening angle supports convenient installation and maintenance.

The TZB209L measures 1393 mm high × 525.5 mm wide × 27 mm deep and is specifically designed for compatible ABB TwinLine TW/L/G409 wall-mounted cabinets. It is supplied as a dedicated left-hand door component for double-door enclosure configurations.

Key Advantages

  • Purpose-designed left-hand blind door for compatible ABB TwinLine cabinets.
  • Configured for 2 PW and 9 GU enclosure arrangements.
  • Durable sheet-steel construction for professional distribution installations.
  • RAL 7035 powder-coated finish coordinates with compatible TwinLine enclosures.
  • Supports an IP55 enclosure configuration when correctly installed.
  • Rod locking with a standard 3 mm double-bit lock.
  • 180° opening angle provides clear access to installed equipment.

Key Features

  • ABB TwinLine left-hand blind door.
  • 2 panel widths (2 PW).
  • 9 grid units (9 GU).
  • Sheet-steel construction.
  • Powder-coated surface finish.
  • RAL 7035 colour.
  • IP55 protection rating in the compatible enclosure arrangement.
  • Designed as a double-door system component.
  • Rod-locking mechanism.
  • Standard 3 mm double-bit lock.
  • 180° door opening angle.

Purpose-Designed Left Door for ABB TwinLine Cabinets

The ABB TZB209L provides the left-hand door section required for compatible TwinLine double-door cabinets. Its sheet-steel construction, powder-coated finish and IP55 enclosure compatibility help maintain the mechanical protection and coordinated appearance expected from an ABB low-voltage distribution enclosure.

The 180° opening angle provides clear access during installation, inspection and maintenance, while the rod-locking mechanism and standard 3 mm double-bit lock provide a practical cabinet closure system. Its dedicated 2 PW by 9 GU format ensures correct selection for compatible TwinLine TW/L/G409 cabinet configurations.

Typical Applications

  • ABB TwinLine electrical distribution enclosures.
  • Compatible TwinLine TW/L/G409 wall-mounted cabinets.
  • Low-voltage sub-distribution assemblies.
  • Double-door electrical cabinet configurations.
  • Replacement of compatible left-hand enclosure doors.
  • Commercial and industrial panel-building installations.

Technical Specifications

Tick the specs you need, then view products that match.

IP Rating IP55
Device Type Door / Cover / Partition
Product Series S&J TwinLine
Series TwinLine
Product type Left-hand blind enclosure door
Door position Left
Panel width 2 PW
Grid units 9 GU
Dimensions (H × W × D) 1393 × 525.5 × 27 mm
Material Sheet steel
Surface finish Powder-coated
Colour RAL 7035
Protection rating IP55
Door arrangement Double-door system component
Door opening angle 180°
Locking mechanism Rod locking
Lock type Standard 3 mm double-bit lock
Maximum door load 5 kg
Product weight 14.49 kg
Compatibility ABB TwinLine TW/L/G409 wall-mounted cabinets
Packaging quantity 1 piece
EAN 4011617105596
Customs tariff number 85389099
Country of origin Germany
ABB order code 2CPX010559R9999
Product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB TZB209L?

The ABB TZB209L is a left-hand sheet-steel blind door designed for compatible ABB TwinLine double-door electrical enclosures and configured for 2 PW and 9 GU.

What are the dimensions of the ABB TZB209L?

The TZB209L measures 1393 mm high × 525.5 mm wide × 27 mm deep.

What material and finish does the TZB209L use?

The door is manufactured from sheet steel and has a powder-coated RAL 7035 finish.

What locking system does the ABB TZB209L use?

The TZB209L uses a rod-locking mechanism with ABB's standard 3 mm double-bit lock.

What is the opening angle of the TZB209L?

The ABB TZB209L provides a 180° door opening angle, allowing convenient access to equipment inside the compatible enclosure.

Which ABB cabinets are compatible with the TZB209L?

The TZB209L is designed for compatible ABB TwinLine TW/L/G409 wall-mounted cabinets requiring the specified 2 PW, 9 GU left-hand door.

What is the ABB order code for the TZB209L?

The ABB order code for the TZB209L left-hand blind door is 2CPX010559R9999.
