Why Choose the ABB TZB209R TwinLine Right-Hand Steel Door?

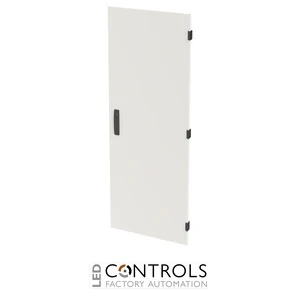

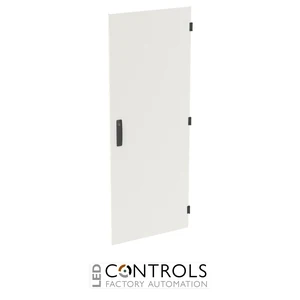

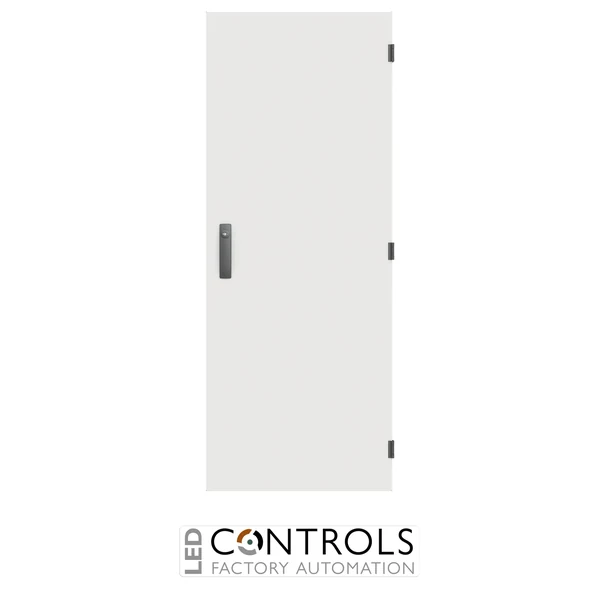

The ABB TZB209R is a genuine TwinLine right-hand solid sheet-steel door designed for compatible ABB TwinLine wall-mounted cabinets. Configured for the right-hand side of double-door enclosures with a 2 PW door width and 9 GU height, it provides a purpose-designed replacement or configuration component for suitable TwinLine assemblies.
Manufactured from robust sheet steel, the TZB209R features a powder-coated RAL 7035 grey finish that complements compatible TwinLine cabinets. The door incorporates a rod-locking mechanism with ABB's standard 3 mm double-bit closure, providing secure and convenient cabinet access.
The TZB209R measures 1393 mm high × 539 mm wide × 27 mm deep and is designed for compatible TwinLine TW/L/G409 and TW/L/G509 wall-mounted cabinets. It supports IP55 enclosure protection when correctly installed as part of the specified cabinet assembly.
Key Advantages
- Genuine ABB TwinLine right-hand steel door for compatible double-door cabinets.
- Designed for 2 PW width and 9 GU height.
- Robust sheet-steel construction for professional electrical enclosure applications.
- Powder-coated RAL 7035 finish matches compatible TwinLine cabinets.
- Integrated rod-locking mechanism with standard 3 mm double-bit closure.
- Supports IP55 enclosure protection when correctly fitted to the appropriate cabinet.
Key Features
- ABB TZB209R solid / blind enclosure door.
- Part of the ABB TwinLine enclosure system.
- Right-hand door for compatible double-door cabinet configurations.
- 2 PW door width.
- 9 GU cabinet height configuration.
- Manufactured from sheet steel.
- Powder-coated surface treatment.
- RAL 7035 grey finish.
- Rod-locking mechanism.
- Standard 3 mm double-bit closure.
- Compatible with applicable TW/L/G409 and TW/L/G509 TwinLine cabinets.
- Supplied as one right-hand door.
Reliable Access and Closure for TwinLine Double-Door Cabinets
Double-door electrical cabinets require correctly matched left- and right-hand doors to maintain their intended closure, accessibility and enclosure protection. The ABB TZB209R provides the dedicated right-hand steel door for compatible 9 GU TwinLine cabinet configurations, making it suitable for both new enclosure assemblies and replacement requirements.
Its rigid steel construction, powder-coated finish and integrated rod-locking arrangement provide a durable solution for regular cabinet access. When installed with the appropriate TwinLine enclosure and corresponding left-hand door, the TZB209R forms part of a professional double-door distribution cabinet assembly.
Typical Applications
- ABB TwinLine double-door wall-mounted cabinets.
- Compatible TW409 and TW509 enclosure configurations.
- Compatible TL409, TL509, TG409 and TG509 cabinets.
- Low-voltage electrical distribution assemblies.
- Replacement of damaged right-hand enclosure doors.
- Distribution cabinet refurbishment and maintenance.
