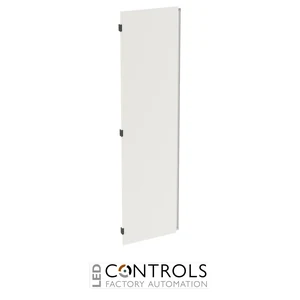

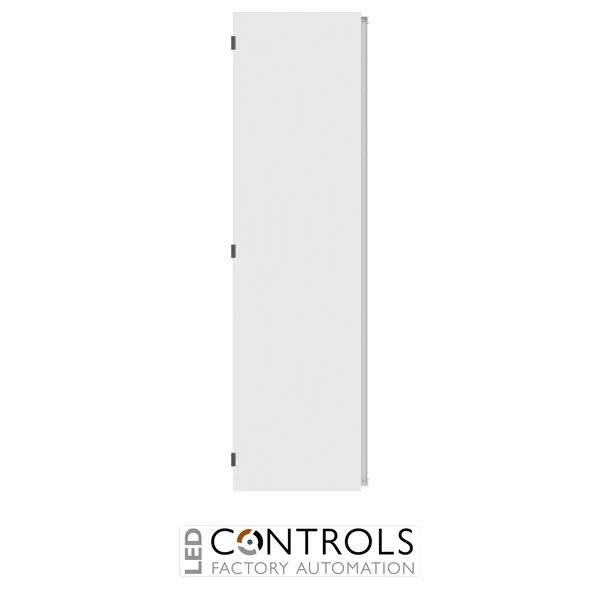

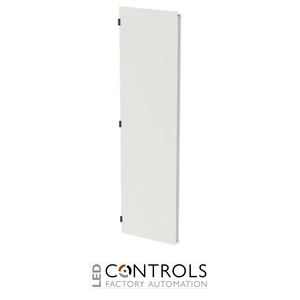

Why Choose the ABB TZB212L TwinLine Left-Hand Steel Door?
The ABB TZB212L is a genuine TwinLine left-hand sheet-steel door designed for compatible ABB TwinLine floor-standing cabinets. Configured as the left-hand leaf for double-door cabinets with a 2 PW door width and 12 GU height, it provides a purpose-designed component for suitable TwinLine enclosure assemblies.
Manufactured from robust sheet steel, the TZB212L features a durable powder-coated RAL 7035 grey finish. The door incorporates a rod-locking mechanism with ABB's standard 3 mm double-bit lock, providing secure closure while maintaining convenient access to equipment installed within the cabinet.
The TZB212L measures 1843 mm high × 525.5 mm wide × 27 mm deep and opens through 180°. It is designed for compatible TwinLine-X/W/L/G412 floor-standing cabinets and supports an IP55 enclosure protection level when correctly installed as part of the appropriate cabinet assembly.
Key Advantages
- Genuine ABB TwinLine left-hand steel door for compatible double-door cabinets.
- Designed for 2 PW width and 12 GU height.
- Robust sheet-steel construction for professional electrical distribution enclosures.
- Durable RAL 7035 powder-coated finish.
- 180° opening angle provides convenient access for installation and maintenance.
- Integrated rod locking with standard 3 mm double-bit closure.
- Supports IP55 enclosure protection when correctly fitted to the appropriate TwinLine cabinet.
Key Features
- ABB TZB212L solid / blind enclosure door.
- Part of the ABB TwinLine enclosure system.
- Left-hand door for compatible double-door configurations.
- 2 PW door width.
- 12 GU enclosure height configuration.
- Manufactured from sheet steel.
- Powder-coated surface finish.
- RAL 7035 grey colour.
- 180° door opening angle.
- Rod-locking mechanism.
- Standard 3 mm double-bit lock.
- Maximum permitted door-mounted equipment weight of 5 kg.
- Suitable for compatible TwinLine-X/W/L/G412 floor-standing cabinets.
Reliable Access and Closure for TwinLine Floor-Standing Cabinets
Large floor-standing electrical cabinets use correctly matched door components to provide secure closure while maintaining convenient access to installed distribution and control equipment. The ABB TZB212L is the dedicated left-hand steel door for compatible 12 GU TwinLine double-door cabinet configurations.
Its robust steel construction, 180° hinge opening and integrated rod-locking system make the TZB212L suitable for professional cabinet assembly, maintenance and refurbishment. When correctly installed with the corresponding enclosure and right-hand door, it forms part of the cabinet's intended IP55 protective structure.
Typical Applications
- ABB TwinLine floor-standing distribution cabinets.
- Compatible TwinLine-X/W/L/G412 cabinet configurations.
- Low-voltage electrical distribution assemblies.
- Double-door electrical enclosure construction.
- Replacement of damaged left-hand cabinet doors.
- Electrical cabinet maintenance and refurbishment.
