Why Choose the ABB TZB306L TwinLine Left-Hand Steel Door?

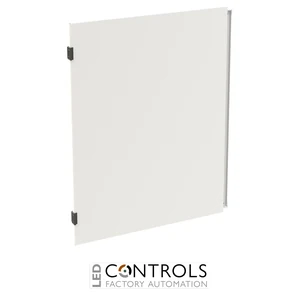

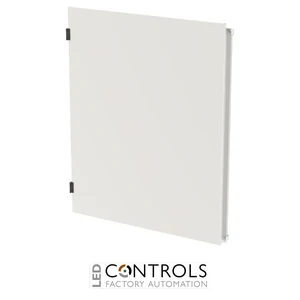

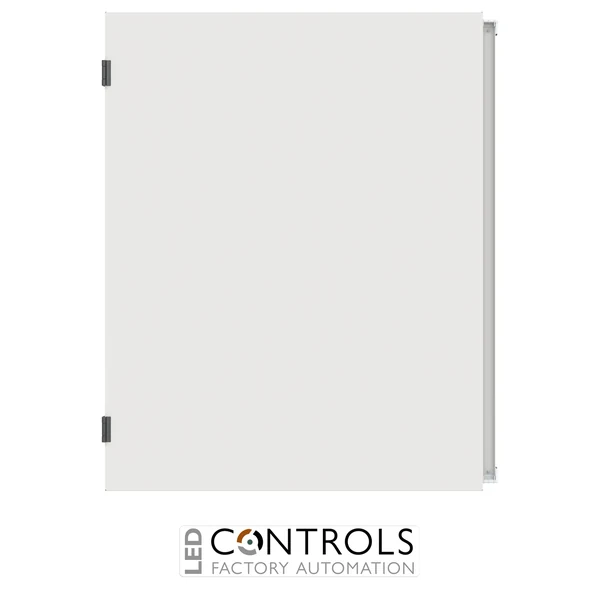

The ABB TZB306L, order code 2CPX010565R9999, is a left-hand blind steel-sheet enclosure door designed for compatible ABB TwinLine electrical distribution cabinets. With a configuration of 3 panel widths (3PW) and 6 grid units (6GU), it forms the left-hand section of the double-door arrangement used on compatible five-panel-width TwinLine enclosures.
Manufactured from powder-coated sheet steel, the TZB306L features a light-grey RAL 7035 finish and is designed to provide IP55 protection when correctly fitted to the appropriate enclosure. Its solid blind-door construction conceals and protects installed electrical equipment while maintaining the coordinated appearance of ABB TwinLine distribution systems.
The TZB306L measures 943 mm high × 775.5 mm wide × 27 mm deep and is equipped with a rod closure and standard 3 mm double-bit closure. It is specifically designed as the left-hand door for compatible TwinLine TW/L/G506 cabinet configurations, providing a genuine ABB component for completing or replacing the enclosure door assembly.
Key Advantages
- Genuine ABB TwinLine left-hand blind steel-sheet door.
- 3PW × 6GU configuration for compatible TwinLine cabinets.
- Designed as the left-hand section of a double-door arrangement.
- Supports IP55 enclosure protection when correctly installed with the appropriate cabinet.
- Durable powder-coated sheet-steel construction.
- RAL 7035 light-grey finish coordinates with compatible ABB TwinLine enclosures.
- Rod closure with standard 3 mm double-bit closure for practical cabinet access.
Key Features
- ABB TZB306L left-hand enclosure door.
- 3 panel widths (3PW).
- 6 grid units (6GU).
- Solid blind-door design.
- Robust sheet-steel construction.
- RAL 7035 powder-coated finish.
- IP55 protection capability with the appropriate compatible enclosure.
- Integrated rod closure.
- Standard 3 mm double-bit closure.
- Designed for compatible TwinLine TW/L/G506 wall-mounted cabinet configurations.
Left-Hand Door for ABB TwinLine Distribution Cabinets
ABB TwinLine enclosure components provide a coordinated platform for professional low-voltage distribution systems. The TZB306L is specifically designed as the left-hand section of the double-door arrangement used on compatible five-panel-width TwinLine cabinets, providing a robust front closure for installed switchgear, protective devices, metering equipment and associated wiring.
Its solid sheet-steel construction is well suited to applications where visibility of internal components is unnecessary. The powder-coated surface provides a durable finish, while the rod closure and standard double-bit mechanism provide a practical means of securing the cabinet during normal operation and allowing access when installation or maintenance work is required.
Typical Applications
- Compatible ABB TwinLine TW506 wall-mounted distribution cabinets.
- Compatible ABB TwinLine L506 distribution cabinets.
- Compatible ABB TwinLine G506 distribution cabinets.
- Five-panel-width low-voltage sub-distribution boards with double doors.
- Commercial and industrial electrical distribution installations.
- Replacement or configuration of left-hand TwinLine cabinet doors.
