Why Choose the ABB TZL110 TwinLine Plinth?

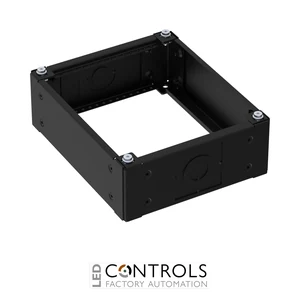

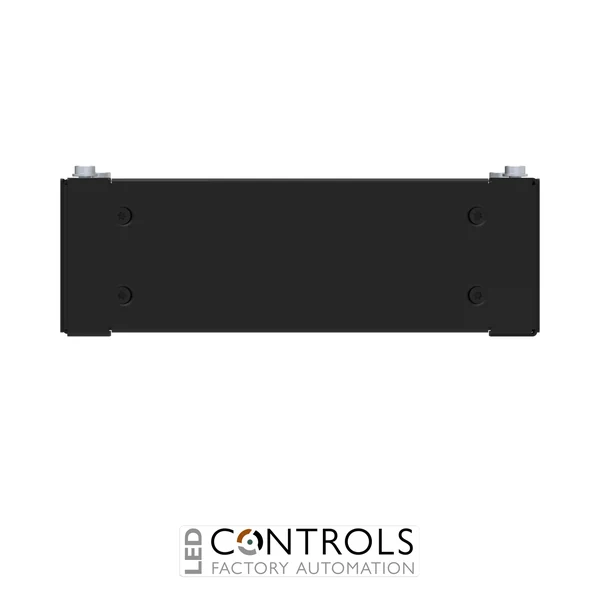

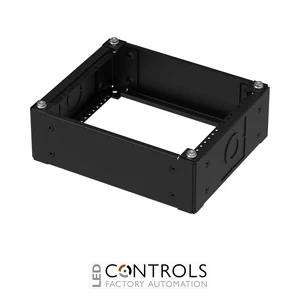

The ABB TZL110 is a purpose-designed 100 mm high plinth for ABB TwinLine-L electrical enclosures. It provides a stable raised base for compatible wall-mounted and floor-standing cabinets, supporting professional low-voltage sub-distribution installations where additional clearance beneath the enclosure is required.
Designed specifically for the TwinLine-L range, the TZL110 is sized for a 300 mm wide, 275 mm deep, one-panel-width enclosure. Its robust construction is powder coated in RAL 9005 black, providing a durable finish that integrates neatly with compatible ABB cabinet systems.
The 100 mm plinth height creates useful clearance beneath the cabinet and incorporates lateral knock-outs for cable routing. The side entry provisions accommodate 1 × M32/M50 or an 80 mm × 80 mm opening, helping installers organise incoming and outgoing cabling while maintaining a coordinated enclosure installation.
Key Advantages
- Purpose-designed plinth for ABB TwinLine-L enclosures.
- 300 mm wide × 100 mm high × 275 mm deep configuration.
- Provides additional clearance beneath compatible electrical cabinets.
- Integrated lateral knock-outs support convenient cable entry.
- Durable powder-coated RAL 9005 black finish.
- One-panel-width design for compatible TwinLine-L cabinet configurations.
Key Features
- ABB TZL110 TwinLine accessory.
- 100 mm high enclosure plinth.
- 300 mm nominal width.
- 275 mm nominal depth.
- 1PW (one panel width) configuration.
- Designed for ABB TwinLine-L enclosures.
- Powder-coated surface.
- RAL 9005 black finish.
- Lateral pre-punched cable-entry provisions.
- Side knock-out for 1 × M32/M50 or 80 mm × 80 mm cable entry.
- Suitable for indoor electrical installations.
Practical Base Solution for TwinLine-L Enclosures
A cabinet plinth raises an electrical enclosure above the installation surface, providing additional clearance for cable routing and helping create a practical interface between the enclosure and the surrounding installation. The ABB TZL110 is dimensioned specifically for compatible TwinLine-L cabinets with a single panel-width configuration.
Its 100 mm height and lateral cable-entry knock-outs make the TZL110 particularly useful where cables need to enter the cabinet from below or through the plinth area. The coordinated TwinLine design ensures a professional fit with the corresponding ABB enclosure system.
Typical Applications
- ABB TwinLine-L electrical enclosures.
- Low-voltage sub-distribution cabinets.
- Floor-standing electrical cabinet installations.
- Raised enclosure mounting arrangements.
- Bottom and lateral cable-routing applications.
- Commercial and industrial electrical distribution systems.
