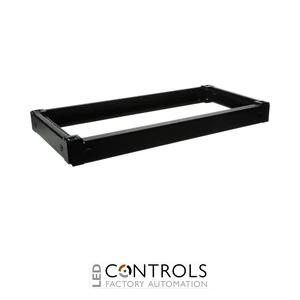

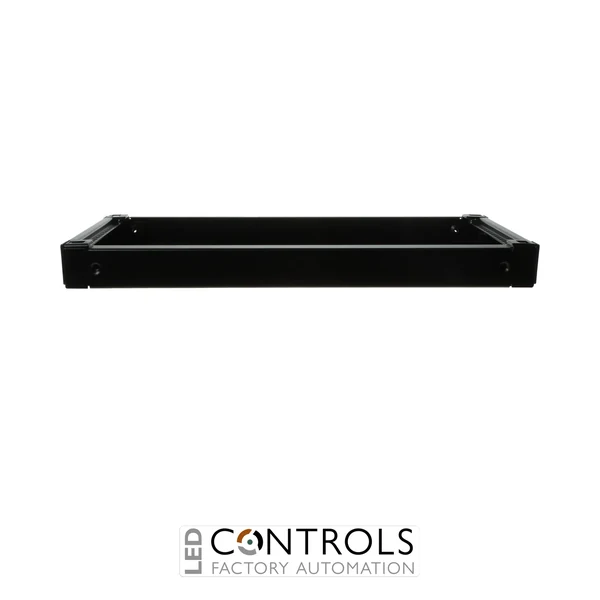

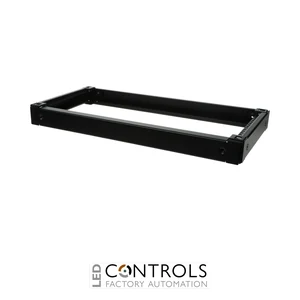

Why Choose the ABB TZL205 TwinLine Plinth?
The ABB TZL205 is a purpose-designed plinth for ABB TwinLine-L electrical enclosures. It provides a stable raised base for compatible wall-mounted and floor-standing cabinets, supporting professional low-voltage sub-distribution installations where additional clearance beneath the enclosure is required.
Designed specifically for the TwinLine-L range, the TZL205 is specified for a 550 mm wide × 50 mm high × 275 mm deep enclosure footprint. Its two-panel-width configuration makes it suitable for corresponding TwinLine-L cabinets, while the durable steel construction provides a robust supporting base.
The TZL205 features a powder-coated RAL 9005 black finish and is intended for indoor installations. Supplied partially assembled, it provides a coordinated ABB solution for raising compatible TwinLine cabinets while maintaining a clean and professional enclosure installation.
Key Advantages
- Purpose-designed plinth for ABB TwinLine-L enclosures.
- 550 mm wide × 50 mm high × 275 mm deep configuration.
- Two-panel-width (2PW) format for compatible cabinets.
- Robust steel construction for dependable enclosure support.
- Durable powder-coated RAL 9005 black finish.
- Provides useful clearance beneath compatible electrical enclosures.
Key Features
- ABB TZL205 TwinLine accessory.
- 50 mm high enclosure plinth.
- 550 mm nominal enclosure width.
- 275 mm nominal enclosure depth.
- 2PW (two panel widths) configuration.
- Designed for ABB TwinLine-L enclosures.
- Steel construction.
- Powder-coated surface.
- RAL 9005 black finish.
- Suitable for indoor electrical installations.
- Supplied partially assembled.
Practical Base Solution for TwinLine-L Enclosures
A cabinet plinth raises an electrical enclosure above the installation surface, creating additional clearance beneath the cabinet and providing a coordinated foundation for the enclosure. The ABB TZL205 is dimensioned specifically for compatible TwinLine-L cabinets with a two-panel-width configuration.
With its 50 mm height, robust steel construction and RAL 9005 powder-coated finish, the TZL205 provides a compact and durable base solution. Its coordinated TwinLine design makes it suitable for both new enclosure assemblies and compatible cabinet installation projects.
Typical Applications
- ABB TwinLine-L electrical enclosures.
- Low-voltage sub-distribution cabinets.
- Floor-standing electrical cabinet installations.
- Raised enclosure mounting arrangements.
- Commercial building electrical distribution systems.
- Industrial low-voltage distribution installations.
