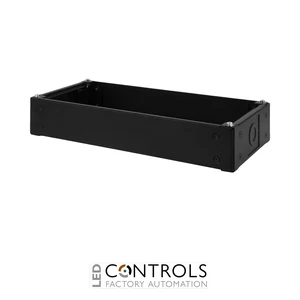

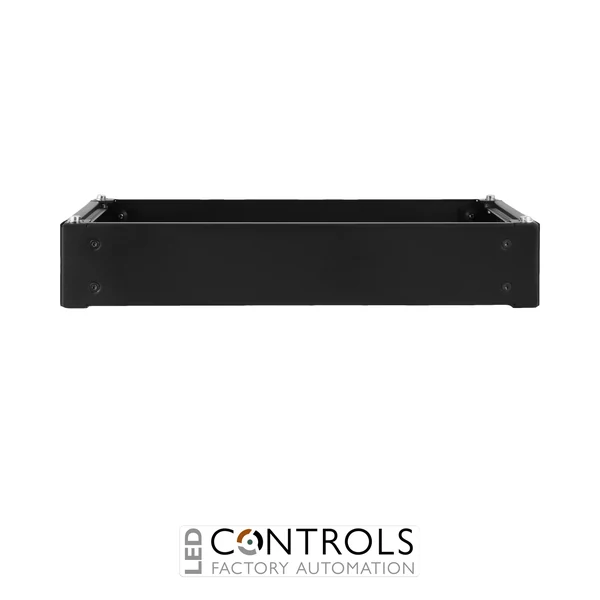

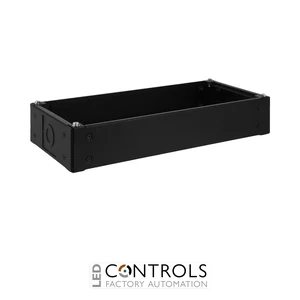

Why Choose the ABB TZL210 TwinLine Plinth?
The ABB TZL210 is a robust steel plinth for ABB TwinLine electrical cabinets, designed to provide a stable raised base for compatible low-voltage sub-distribution enclosures. As part of ABB’s TwinLine cabinet accessory range, it is specifically designed for indoor electrical installations where secure cabinet support and practical cable routing are required.
Manufactured from steel with a durable RAL 9005 black powder-coated finish, the TZL210 provides a strong foundation for compatible TwinLine cabinets. Its partially assembled construction simplifies installation, while pre-punched side cable-entry provisions support organised routing of cables into the enclosure.
The TZL210 is designed for cabinets with a nominal footprint of 550 mm wide × 275 mm deep and provides a 100 mm plinth height. With a two-field-width configuration, it is particularly suited to compatible TwinLine-L cabinets used in professional commercial and industrial electrical distribution systems.
Key Advantages
- Purpose-designed plinth for ABB TwinLine electrical cabinets.
- 550 mm width × 100 mm height × 275 mm nominal cabinet depth.
- Strong steel construction provides dependable cabinet support.
- Durable RAL 9005 black powder-coated finish.
- Pre-punched side provisions simplify cable entry and routing.
- Partially assembled design supports straightforward installation.
Key Features
- ABB TZL210 TwinLine plinth.
- Designed for compatible ABB TwinLine-L cabinets.
- 100 mm nominal plinth height.
- 550 mm nominal cabinet width.
- 275 mm nominal cabinet depth.
- Two field widths.
- Manufactured from steel.
- RAL 9005 black powder-coated finish.
- Side cable entry through pre-punched openings.
- Designed for indoor electrical installations.
Stable Support and Cable Access for TwinLine Cabinets
Electrical cabinet plinths provide a raised and stable foundation for floor-mounted distribution enclosures while creating useful space beneath the cabinet for cable entry and routing. The ABB TZL210 supports compatible TwinLine cabinets while its side cable-entry provisions help installers route incoming and outgoing cabling in an organised manner.
Designed specifically for the ABB TwinLine system, the TZL210 combines steel construction with a durable powder-coated finish for professional indoor electrical installations. Its 100 mm height raises the associated cabinet from the floor, helping improve installation access and providing additional space for cable-management requirements.
Typical Applications
- ABB TwinLine-L electrical distribution cabinets.
- Low-voltage sub-distribution systems.
- Floor-standing electrical enclosure installations.
- Commercial building electrical distribution.
- Industrial electrical distribution installations.
- Panel building and electrical cabinet assemblies.
