Why Choose the ABB TZL305 TwinLine Plinth?

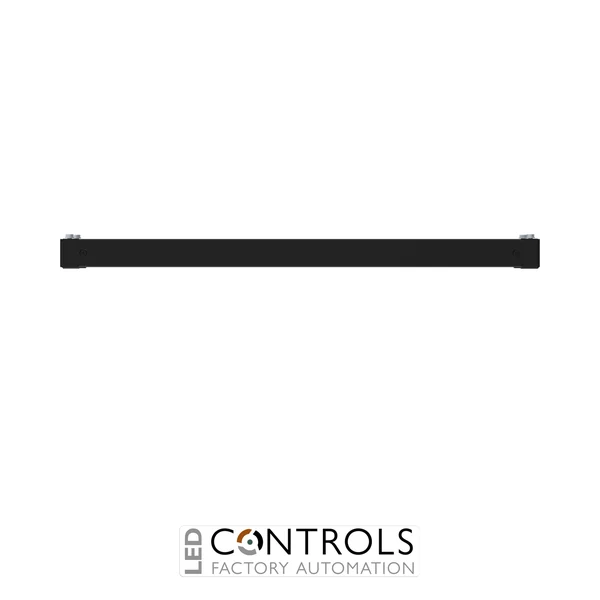

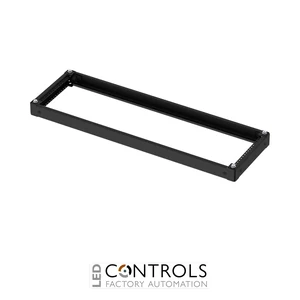

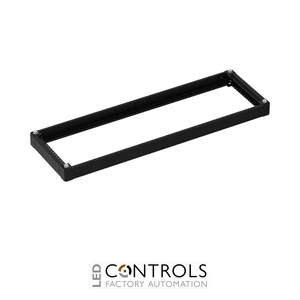

The ABB TZL305 is a robust steel plinth for ABB TwinLine-L electrical cabinets, designed to provide a stable raised base for compatible low-voltage sub-distribution enclosures. As part of ABB’s TwinLine cabinet accessory range, it is specifically sized for three-field-width cabinets requiring a 50 mm high base.
Manufactured from steel with a RAL 9005 black finish, the TZL305 provides a durable foundation for compatible TwinLine-L cabinets. The complete plinth supports professional floor-standing cabinet installations while maintaining the dimensional compatibility required by the ABB enclosure system.
The TZL305 is designed for cabinets with a nominal footprint of 800 mm wide × 275 mm deep and provides a 50 mm plinth height. Its three-field-width format makes it suitable for compatible ABB TwinLine-L sub-distribution cabinets used in commercial and industrial electrical installations.
Key Advantages
- Purpose-designed plinth for ABB TwinLine-L electrical cabinets.
- 800 mm width × 50 mm height × 275 mm nominal cabinet depth.
- Three-field-width configuration for compatible TwinLine-L enclosures.
- Strong steel construction provides dependable cabinet support.
- Durable RAL 9005 black finish.
- Original ABB enclosure accessory for reliable dimensional and system compatibility.
Key Features
- ABB TZL305 TwinLine plinth.
- Designed for compatible ABB TwinLine-L cabinets.
- 50 mm plinth height.
- 800 mm cabinet width.
- 275 mm nominal cabinet depth.
- Three field widths.
- Manufactured from steel.
- RAL 9005 black finish.
- Complete plinth configuration for compatible floor-standing cabinet installations.
- Designed for indoor electrical installations.
Stable Support for ABB TwinLine Cabinets
Electrical cabinet plinths provide a stable raised foundation for floor-standing distribution enclosures, supporting secure installation while creating separation between the cabinet body and the floor. The ABB TZL305 is dimensioned specifically for compatible three-field-width TwinLine-L cabinets, helping maintain a correctly matched enclosure assembly.
With its 800 mm width, 50 mm height and compatibility with cabinets having a nominal 275 mm depth, the TZL305 provides an original ABB base solution for professional sub-distribution installations. Its steel construction and RAL 9005 finish make it suitable for demanding indoor electrical environments.
Typical Applications
- ABB TwinLine-L electrical distribution cabinets.
- Low-voltage sub-distribution systems.
- Floor-standing electrical enclosure installations.
- Commercial building electrical distribution.
- Industrial electrical distribution installations.
- Panel building and electrical cabinet assemblies.
