Why Choose the ABB TZL310 TwinLine Plinth?

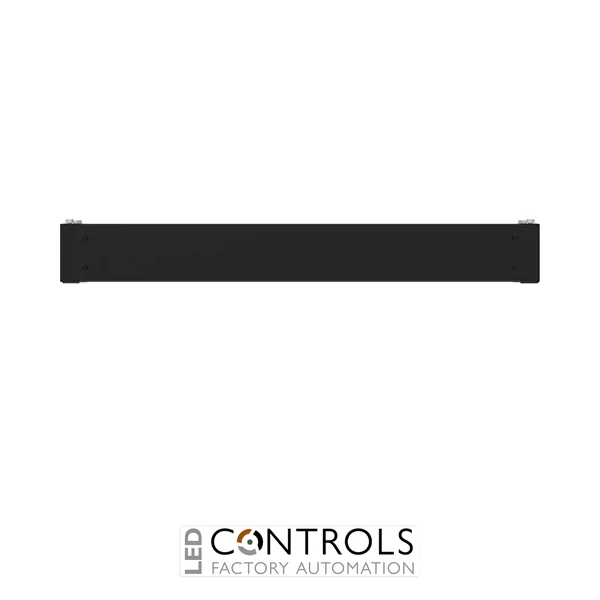

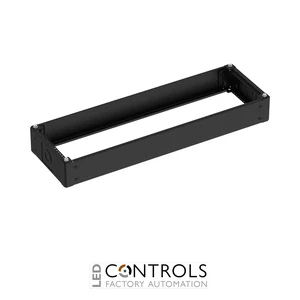

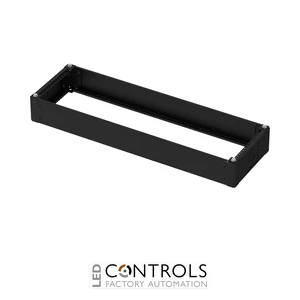

The ABB TZL310 is a 100 mm high plinth designed for compatible ABB TwinLine electrical distribution enclosures. With a cabinet width of 800 mm, a nominal depth of 275 mm and a 3 panel-width (3 PW) format, it provides a purpose-designed base for compatible TwinLine-L cabinet installations.
Manufactured from sheet steel, the TZL310 is supplied partially assembled and finished with a durable RAL 9005 deep-black powder coating. It is intended for indoor use and provides a maximum load capacity of 238.5 kg, supporting substantial electrical distribution cabinet assemblies.
The 100 mm plinth height creates additional space beneath the enclosure for cable routing and installation requirements. Pre-stamped lateral cable-entry provisions accommodate M32/M50 or 80 × 80 mm entry arrangements, helping panel builders organise incoming and outgoing cabling beneath compatible TwinLine cabinets.
Key Advantages
- Purpose-designed 100 mm plinth for compatible ABB TwinLine enclosures.
- Suitable for cabinets measuring 800 mm wide × 275 mm deep.
- 3 PW format matches compatible TwinLine-L cabinet widths.
- Strong sheet-steel construction with a maximum load capacity of 238.5 kg.
- Durable RAL 9005 powder-coated finish.
- Pre-stamped lateral cable-entry provisions simplify cable routing.
Key Features
- ABB TwinLine plinth.
- 100 mm plinth height.
- 800 mm cabinet width.
- 275 mm nominal cabinet depth.
- 3 panel widths (3 PW).
- Sheet-steel construction.
- RAL 9005 deep-black powder-coated finish.
- Supplied partially assembled.
- Designed for indoor installation.
- Pre-stamped lateral cable-entry provision.
- Suitable for cable routing beneath compatible enclosures.
Stable Cabinet Support with Integrated Cable-Routing Space
A cabinet plinth provides a stable interface between a floor-standing electrical enclosure and the installation surface while creating useful additional space beneath the cabinet. The ABB TZL310 raises a compatible 800 mm wide TwinLine enclosure by 100 mm and provides a robust sheet-steel base capable of supporting loads up to 238.5 kg.
Pre-stamped lateral entry points allow cables to be routed through the plinth before entering the electrical enclosure. This makes the TZL310 particularly useful in low-voltage distribution installations where cable management, cabinet support and a coordinated enclosure appearance are important.
Typical Applications
- Compatible ABB TwinLine-L electrical enclosures.
- Floor-standing low-voltage distribution cabinets.
- Commercial electrical distribution installations.
- Industrial switchgear and control cabinets.
- Panel-building applications requiring under-cabinet cable routing.
- Indoor sub-distribution assemblies using 800 mm wide, 275 mm deep cabinets.
