Why Choose the ABB TZL405 TwinLine-L Plinth?

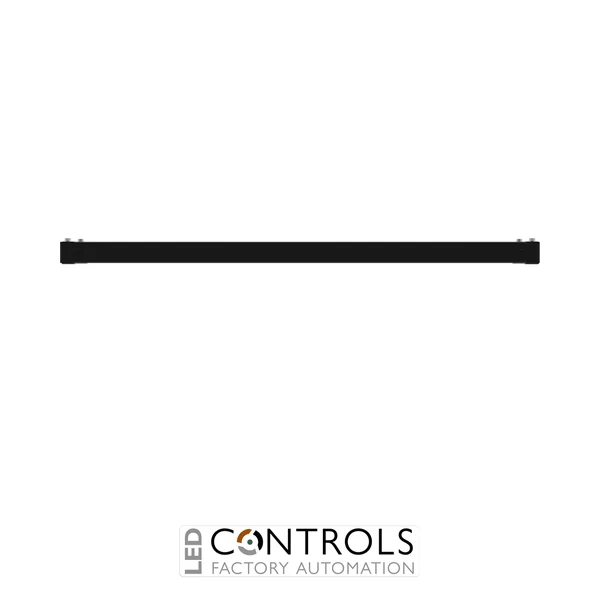

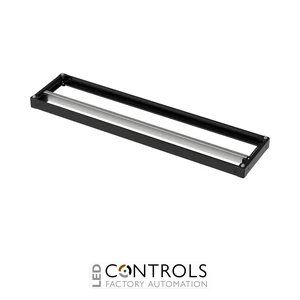

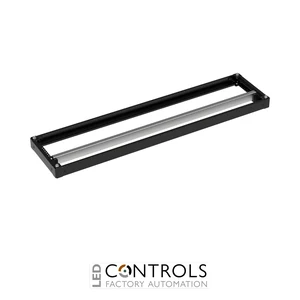

The ABB TZL405 is a purpose-designed 50 mm high plinth for compatible ABB TwinLine-L electrical distribution enclosures. Designed for cabinets with a nominal width of 1050 mm and depth of 275 mm, it provides a coordinated base solution for professional indoor low-voltage distribution installations.
Manufactured from sheet steel, the TZL405 features a durable RAL 9005 deep-black powder-coated finish. The plinth is supplied partially assembled and is designed specifically for indoor installations, providing a strong and visually coordinated foundation beneath compatible TwinLine cabinets.
The TZL405 is configured for 4 panel widths (4 PW) and has a specified maximum load capacity of 317.2 kg. Its low-profile 50 mm height makes it particularly suitable where a cabinet base is required without the additional height of a 100 mm plinth.
Key Advantages
- Purpose-designed 50 mm plinth for compatible ABB TwinLine-L enclosures.
- Suitable for cabinets with a nominal 1050 mm width and 275 mm depth.
- 4 PW configuration for matching TwinLine cabinet formats.
- Strong sheet-steel construction with a maximum load capacity of 317.2 kg.
- Durable RAL 9005 deep-black powder-coated finish.
- Supplied partially assembled for efficient cabinet installation.
Key Features
- ABB TwinLine-L enclosure plinth.
- 50 mm plinth height.
- 1050 mm compatible cabinet width.
- 275 mm nominal cabinet depth.
- 4 panel widths (4 PW).
- Sheet-steel construction.
- Powder-coated surface finish.
- RAL 9005 deep black.
- Complete plinth design.
- Supplied partially assembled.
- Designed for indoor installation.
Stable Low-Profile Support for TwinLine-L Enclosures
An enclosure plinth provides a stable interface between an electrical distribution cabinet and its installation surface. The ABB TZL405 raises a compatible TwinLine-L enclosure by 50 mm, providing a robust sheet-steel base while maintaining a relatively low overall installation height.
Its 4 PW format is matched to compatible 1050 mm wide TwinLine-L cabinets, while the RAL 9005 powder-coated finish provides a coordinated appearance beneath the enclosure. With a maximum load capacity of 317.2 kg, the TZL405 is suitable for substantial indoor low-voltage distribution assemblies.
Typical Applications
- Compatible ABB TwinLine-L electrical enclosures.
- Indoor floor-standing low-voltage distribution cabinets.
- Commercial electrical distribution installations.
- Industrial switchgear and control cabinets.
- Panel-building applications.
- 1050 mm wide, 275 mm deep TwinLine cabinet assemblies requiring a 50 mm plinth.
