Why Choose the ABB TZL505 TwinLine Plinth?
The ABB TZL505 is a genuine TwinLine-L enclosure plinth designed for compatible ABB TwinLine wall-mounted and floor-standing distribution cabinets. With a nominal cabinet footprint of 1300 mm wide × 275 mm deep and a height of 50 mm, it provides a purpose-designed base for five-field-wide TwinLine-L enclosure configurations.
Manufactured from steel, the TZL505 features a durable RAL 9005 black powder-coated finish that provides a coordinated base beneath the electrical cabinet. Its partially assembled construction is intended for indoor installations and supports professional low-voltage distribution and sub-distribution enclosure projects.

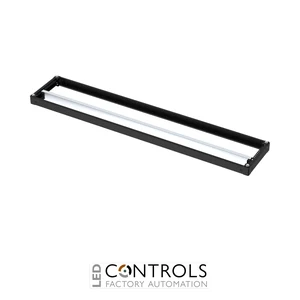

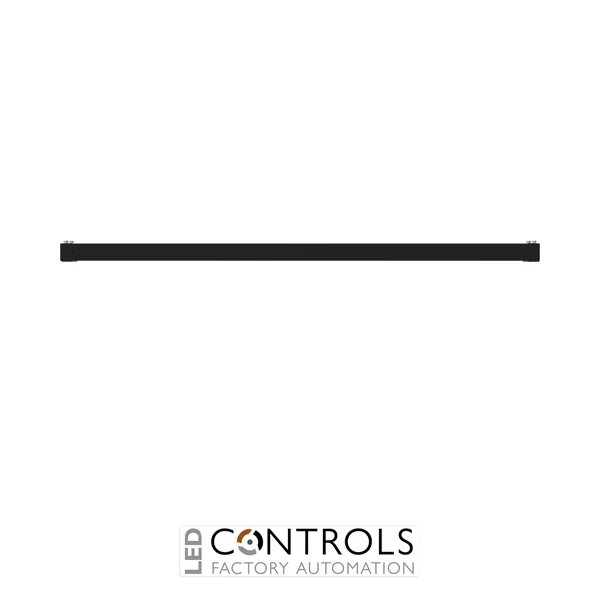

The TZL505 is designed for a 5 PW / five-field-width TwinLine-L cabinet configuration. Its actual external dimensions are approximately 50 mm high × 1300 mm wide × 253.5 mm deep, while it is specified for cabinets with a nominal 275 mm enclosure depth.
Key Advantages
- Genuine ABB TwinLine-L plinth for compatible distribution cabinets.
- Designed for five-field-wide / 5 PW enclosure configurations.
- Provides a 50 mm raised base beneath the cabinet.
- Designed for cabinets with a nominal 1300 mm width and 275 mm depth.
- Robust steel construction for professional electrical installations.
- Durable RAL 9005 black powder-coated finish.
Key Features
- ABB TZL505 complete enclosure plinth.
- Part of the ABB TwinLine enclosure system.
- Designed for TwinLine-L cabinets.
- 5 PW / five-field-width configuration.
- 50 mm nominal height.
- 1300 mm width.
- Designed for a nominal enclosure depth of 275 mm.
- Actual plinth depth of approximately 253.5 mm.
- Manufactured from steel.
- Powder-coated RAL 9005 black finish.
- Designed for indoor installation.
- Supplied partially assembled.
Reliable Base Support for TwinLine-L Enclosures
A correctly matched enclosure plinth raises an electrical cabinet above the installation surface and provides a defined structural base for the assembly. The ABB TZL505 adds 50 mm of base height to compatible five-field-wide TwinLine-L cabinets while maintaining the dimensions and appearance intended for the enclosure system.
The steel construction and RAL 9005 powder-coated finish make the TZL505 suitable for professional indoor electrical installations. Using the dedicated ABB plinth also ensures compatibility with the intended 1300 mm-wide, 275 mm-deep TwinLine-L cabinet format rather than relying on a generic enclosure base.
Typical Applications
- ABB TwinLine-L electrical distribution cabinets.
- Five-field-wide TwinLine enclosure installations.
- Low-voltage distribution and sub-distribution assemblies.
- Commercial building electrical distribution systems.
- Industrial electrical cabinet installations.
- Enclosure installation, replacement and refurbishment projects.
