Why Choose the ABB TZL510 TwinLine-L Plinth?

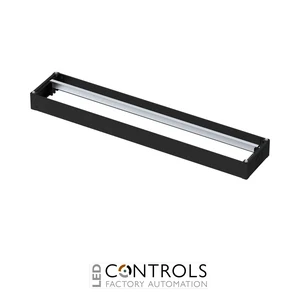

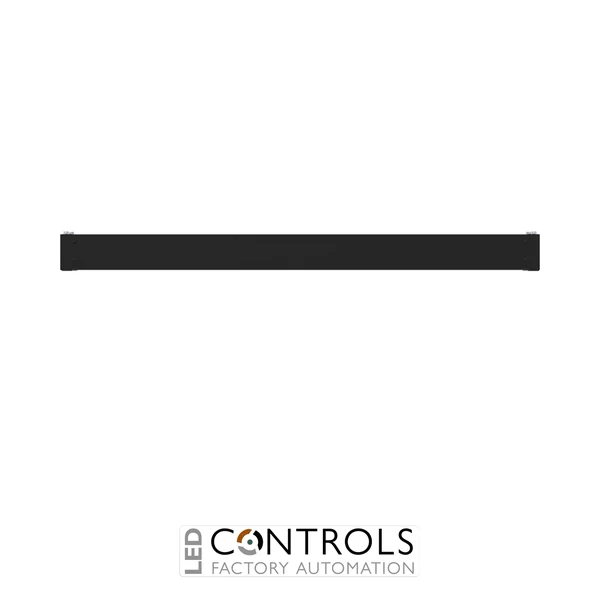

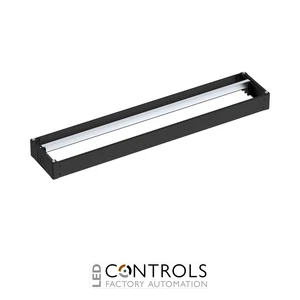

The ABB TZL510, order code 2CPX010590R9999, is a 100 mm high plinth designed for compatible ABB TwinLine-L electrical distribution cabinets. Measuring 1300 mm wide × 100 mm high × 275 mm deep, it provides a robust base for five-panel-width TwinLine-L floor-standing enclosure installations.
Manufactured from sheet steel with a durable powder-coated RAL 9005 deep-black finish, the TZL510 is intended for indoor use and is supplied partially assembled. Its coordinated dimensions allow it to integrate neatly beneath compatible 1300 mm wide TwinLine-L cabinets while providing additional space beneath the enclosure for cable routing and installation requirements.
The TZL510 features pre-punched lateral cable-entry provisions, supporting cable routing through the sides of the plinth. With a 5 panel width (5PW) configuration and a maximum load capacity of 389.6 kg, it provides a purpose-designed foundation for larger ABB TwinLine-L distribution assemblies.
Key Advantages
- Genuine ABB TwinLine-L plinth for compatible floor-standing distribution cabinets.
- 1300 mm width matches compatible five-panel-width TwinLine-L enclosures.
- 100 mm plinth height provides useful additional clearance beneath the cabinet.
- Robust sheet-steel construction with a maximum load capacity of 389.6 kg.
- Durable RAL 9005 deep-black powder-coated finish.
- Pre-punched lateral cable-entry provisions assist with cable routing.
- Partially assembled design simplifies integration with compatible ABB TwinLine installations.
Key Features
- ABB TZL510 enclosure plinth.
- Designed for the ABB TwinLine-L enclosure system.
- 5 panel widths (5PW).
- 100 mm plinth height.
- 275 mm nominal depth.
- 1300 mm overall width.
- Robust sheet-steel construction.
- RAL 9005 deep-black powder-coated finish.
- Designed for indoor installations.
- Pre-punched side cable-entry provisions.
- Supplied partially assembled.
Robust Base for ABB TwinLine-L Distribution Cabinets
A purpose-designed enclosure plinth raises a floor-standing electrical cabinet above the installation surface and provides additional space for cable management beneath the enclosure. The ABB TZL510 is dimensioned specifically for compatible five-panel-width TwinLine-L cabinets, creating a coordinated base for larger low-voltage distribution assemblies.
The 100 mm high design can assist with bottom cable routing and installation access, while pre-punched side provisions allow lateral cable entry where required. Its sheet-steel construction and substantial load capacity make the TZL510 suitable for supporting fully configured TwinLine-L distribution cabinets in demanding commercial and industrial installations.
Typical Applications
- Compatible ABB TwinLine-L floor-standing distribution cabinets.
- Five-panel-width low-voltage sub-distribution enclosures.
- Commercial building electrical distribution systems.
- Industrial electrical distribution installations.
- Floor-standing switchgear and control assemblies.
- Installations requiring additional cable-routing space beneath the enclosure.
