Why Choose the ABB TZM307 Steel Mounting Plate?

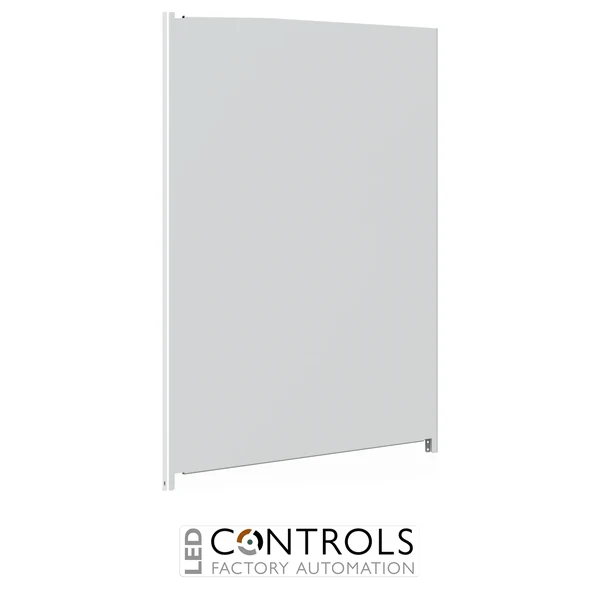

The ABB TZM307 is a robust galvanised sheet-steel mounting plate for ABB TwinLine electrical enclosures. Designed for a 3-panel-width (3PW), 7-grid-unit (7GU) configuration, it provides a secure internal mounting surface for electrical equipment in professional low-voltage sub-distribution installations.
Manufactured from 2 mm sheet steel, the TZM307 features a galvanised surface for durable protection and measures 1050 mm high × 746 mm wide. It is supplied unmounted, allowing the plate to be installed and equipped according to the requirements of the individual distribution assembly.
The TZM307 is designed for compatible ABB TwinLine TW/L/G307 wall-mounted cabinets. Its substantial mounting area supports flexible positioning of electrical components, controls and associated equipment while maintaining a coordinated TwinLine enclosure installation.
Key Advantages
- Purpose-designed mounting plate for ABB TwinLine enclosures.
- Configured specifically for 3PW and 7GU cabinet arrangements.
- Robust 2 mm galvanised sheet-steel construction.
- Large 1050 mm × 746 mm mounting surface.
- Provides a flexible platform for mounting electrical equipment and components.
- Suitable for compatible ABB TwinLine TW/L/G307 wall cabinets.
Key Features
- ABB TZM307 TwinLine accessory.
- Steel mounting plate.
- 3PW (three panel widths).
- 7GU (seven grid units).
- 1050 mm nominal height.
- 746 mm nominal width.
- 2 mm material thickness.
- Galvanised surface protection.
- Supplied unmounted.
- Designed for ABB TwinLine TW/L/G307 wall-mounted cabinets.
Flexible Equipment Mounting for TwinLine Enclosures
A full-size mounting plate provides a versatile internal surface for installing electrical equipment within an enclosure. Components can be positioned to suit the particular distribution or control arrangement, giving panel builders flexibility when configuring customised low-voltage assemblies.
The ABB TZM307 combines a substantial mounting area with 2 mm galvanised steel construction and dimensions coordinated with compatible 3PW 7GU TwinLine cabinets. Supplied unmounted, it provides a practical solution for both new enclosure builds and compatible cabinet modifications.
Typical Applications
- ABB TwinLine TW/L/G307 electrical enclosures.
- Low-voltage sub-distribution cabinets.
- Electrical component mounting assemblies.
- Control and automation equipment installations.
- Commercial building distribution systems.
- Industrial electrical distribution panels.
