Why Choose the ABB TZP105 TwinLine Touch Guard?

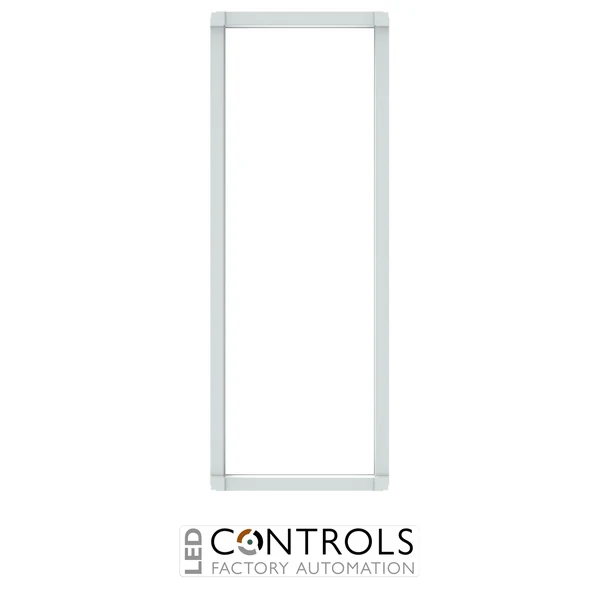

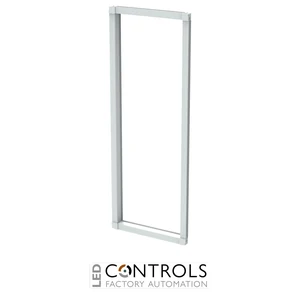

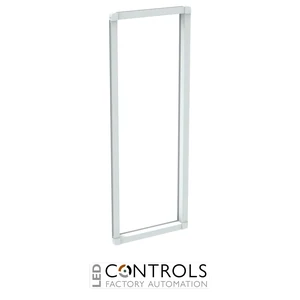

The ABB TZP105 is a TwinLine touch-protection guard designed for compatible ABB electrical distribution enclosures. Configured for 1 panel width (1PW) and 5 grid units (5GU), it provides an internal protective barrier that helps prevent unintended contact with equipment and live parts within a correctly assembled distribution system.
The TZP105 is supplied as an unmounted touch guard for enclosure configurations using metering and distribution fields, combination sets or CombiLine-M modules. It is intended for compatible ABB TwinLine wall cabinets, including the TwinLine TW/L/G105 cabinet format.
With a 5GU configuration corresponding to an 800 mm cabinet height and a single panel width, the TZP105 provides purpose-designed touch protection for compact TwinLine assemblies. ABB order code 2CPX010626R9999 identifies this specific accessory within the DESUJ Sub Distribution product group.
Key Advantages
- Provides dedicated touch protection inside compatible ABB TwinLine enclosures.
- Configured for 1 panel width and 5 grid units.
- Suitable for compatible 800 mm-high TwinLine cabinet configurations.
- Designed for assemblies using metering fields, distribution fields, combination sets or CombiLine-M modules.
- Supplied unmounted for installation during enclosure assembly.
- Purpose-designed ABB accessory for professional low-voltage distribution systems.
Key Features
- ABB TZP105 TwinLine touch guard.
- 1 panel width (1PW).
- 5 grid units (5GU).
- Suitable for an 800 mm cabinet-height configuration.
- Supplied as an unmounted touch-protection component.
- Designed for compatible TwinLine wall-mounted cabinets.
- Suitable for metering and distribution fields.
- Suitable for combination sets and CombiLine-M module configurations.
- Compatible with the TwinLine TW/L/G105 cabinet format.
Touch Protection for Electrical Distribution Systems
Internal touch guards are used within electrical distribution assemblies to provide a protective barrier between accessible areas and installed electrical equipment. The ABB TZP105 is specifically dimensioned for a one-panel-width, five-grid-unit TwinLine configuration and supports safe, structured construction of compatible distribution assemblies.
The TZP105 is supplied separately in its unmounted form for installation with compatible metering fields, distribution fields, combination sets or CombiLine-M modules. In ABB protection-insulated cabinets the appropriate touch protection is included with the cabinet, while earthed cabinet configurations require the relevant touch-protection accessory to be selected separately.
Typical Applications
- ABB TwinLine wall-mounted enclosures.
- Electrical sub-distribution boards.
- Metering and distribution fields.
- CombiLine-M modular assemblies.
- Combination-set enclosure configurations.
- Professional low-voltage panel-building installations.
