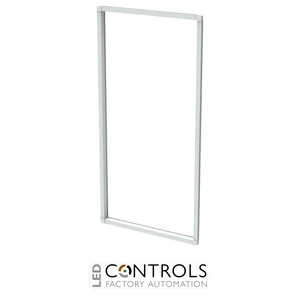

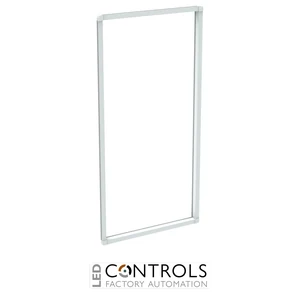

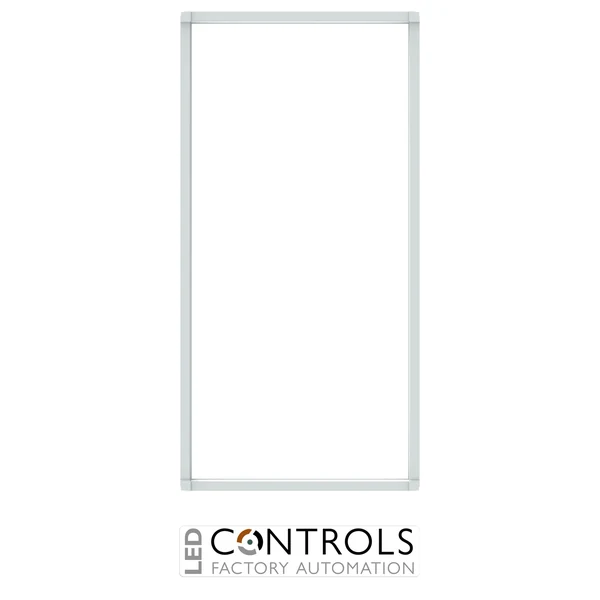

ABB TZP207 TwinLine plastic touch guard for compatible 2PW 7GU electrical distribution cabinets, with RAL 7035 finish and 1050 × 500 × 30 mm dimensions.
The ABB TZP207 is a genuine TwinLine touch guard designed to provide internal touch protection within compatible ABB electrical distribution cabinets. Configured for 2 field widths (2 PW) and 7 grid units (7 GU), it provides a purpose-designed protective barrier for the corresponding TwinLine enclosure format.
Manufactured from plastic and finished in RAL 7035 grey, the TZP207 measures 1050 mm high × 500 mm wide × 30 mm deep. It is intended for installation with compatible meter and distribution fields, combination sets or CombiLine modules, providing a coordinated internal protection solution within the ABB TwinLine system.
The TZP207 is supplied unmounted and is intended for compatible TwinLine TW/L/G207 cabinets. For earthed cabinet configurations, the appropriate touch protection is ordered separately, while ABB specifies that touch protection is included within the scope of delivery of corresponding double-insulated cabinets.
Key Advantages
Genuine ABB TwinLine touch guard for compatible distribution cabinets.
Provides an internal barrier to help prevent accidental contact with installed electrical equipment.
Designed specifically for 2 PW width and 7 GU height configurations.
Suitable for compatible meter fields, distribution fields, combination sets and CombiLine modules.
Durable and lightweight plastic construction.
Purpose-designed for compatible TwinLine TW/L/G207 cabinets.
Key Features
ABB TZP207 internal touch-protection guard.
Part of the ABB TwinLine enclosure accessory system.
2 field widths (2 PW).
7 grid units (7 GU).
3 OH construction height.
Designed for the corresponding nominal 1100 mm cabinet-height configuration.
Manufactured from plastic.
RAL 7035 grey finish.
Product dimensions of 1050 × 500 × 30 mm.
Designed for compatible meter and distribution fields, combination sets and CombiLine modules.
Supplied unmounted for installation during cabinet assembly.
Compatible with applicable TwinLine TW207, TL207 and TG207 cabinets.
Reliable Internal Touch Protection for TwinLine Cabinets
Touch protection creates an additional internal barrier between users and electrical equipment installed within a distribution cabinet. The ABB TZP207 is dimensioned around the modular layout of compatible TwinLine cabinets, helping panel builders create an organised installation while reducing the possibility of accidental contact with internal equipment.
For earthed TwinLine cabinet configurations, the appropriate touch guard is selected according to cabinet field width and grid height. The TZP207 covers a 2 PW, 7 GU configuration and can be incorporated with compatible ABB meter and distribution fields, combination sets or CombiLine modules.
Typical Applications
ABB TwinLine electrical distribution cabinets.
Compatible TW207, TL207 and TG207 enclosure configurations.
Low-voltage electrical distribution boards.
Meter and distribution field installations.
ABB CombiLine modular assemblies.
Electrical cabinet assembly, upgrading and refurbishment.
Technical Specifications
Tick the specs you need, then view products that match.
Device Type
Door / Cover / Partition
Product Series
S&J TwinLine
Series
TwinLine
ABB order code
2CPX010635R9999
Product type
Touch guard / touch protection
Product group
DESUJ Sub Distribution
Accessory type
Internal enclosure touch protection
Field width
2 PW
Grid height
7 GU
Construction height
3 OH
Nominal cabinet height
1100 mm
Material
Plastic
Colour
Grey
RAL colour
RAL 7035
Dimensions (H × W × D)
1050 × 500 × 30 mm
Installation condition
Unmounted
Compatibility
TwinLine TW/L/G207 cabinets
Suitable equipment systems
Meter fields, distribution fields, combination sets and CombiLine modules
Packaging quantity
1 piece
EAN / GTIN
4011617106357
Country of origin
Germany
Customs tariff number
85472000
Frequently Asked Questions
What is the ABB TZP207 used for?
The ABB TZP207 is an internal touch guard designed to provide a protective barrier within compatible TwinLine electrical distribution cabinets.
What size configuration is the TZP207 designed for?
The TZP207 is designed for a 2 PW field width and 7 GU grid height, corresponding to the applicable nominal 1100 mm-high TwinLine cabinet configuration.
Which ABB cabinets are compatible with the TZP207?
The TZP207 is designed for compatible ABB TwinLine TW/L/G207 cabinets.
What are the dimensions of the ABB TZP207?
The TZP207 measures 1050 mm high × 500 mm wide × 30 mm deep.
Can the TZP207 be used with ABB CombiLine modules?
Yes. The TZP207 is intended for compatible installations using meter fields, distribution fields, combination sets or CombiLine modules.
Genuine ABB TwinLine Touch Protection
The ABB TZP207 provides purpose-designed internal touch protection for compatible 2 PW, 7 GU TwinLine cabinets, supporting organised and professional low-voltage distribution assemblies.
Device Type
Door / Cover / Partition
Product Series
S&J TwinLine
Series
TwinLine
ABB order code
2CPX010635R9999
Product type
Touch guard / touch protection
Product group
DESUJ Sub Distribution
Accessory type
Internal enclosure touch protection
Field width
2 PW
Grid height
7 GU
Construction height
3 OH
Nominal cabinet height
1100 mm
Material
Plastic
Colour
Grey
RAL colour
RAL 7035
Dimensions (H × W × D)
1050 × 500 × 30 mm
Installation condition
Unmounted
Compatibility
TwinLine TW/L/G207 cabinets
Suitable equipment systems
Meter fields, distribution fields, combination sets and CombiLine modules
Packaging quantity
1 piece
EAN / GTIN
4011617106357
Country of origin
Germany
Customs tariff number
85472000
