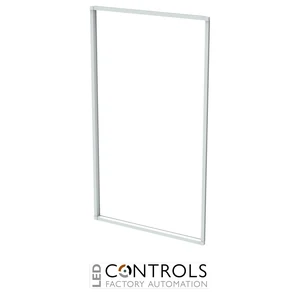

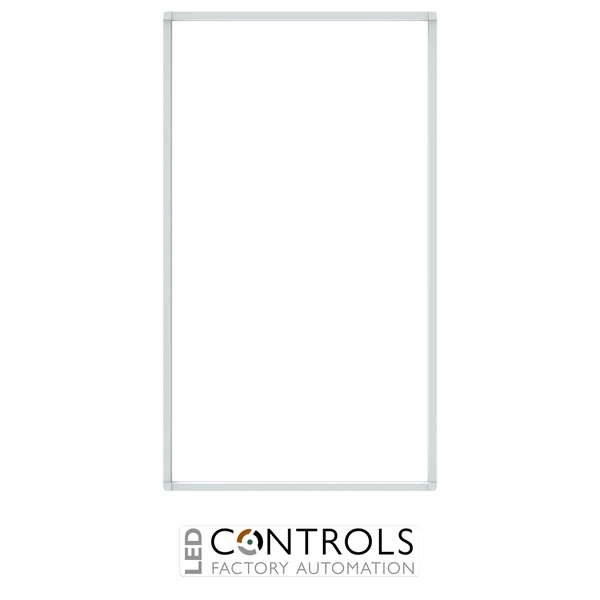

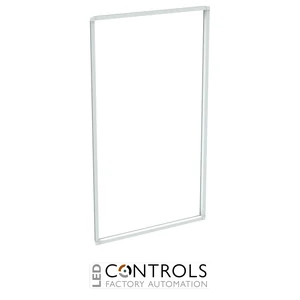

2CPX010644R9999 ABB TZP309 TwinLine Touch Guard 3PW 9GU

2CPX010644R9999 ABB TZP309 TwinLine Touch Guard 3PW 9GU

ABB TZP309 TwinLine plastic touch guard for compatible 3PW 9GU distribution cabinets, supplied unmounted for installations with meter and distribution fields, combination sets or CombiLine-M modules.

SKU: 2CPX010644R9999Alt SKU: TZP309MPN: 2CPX010644R9999
Price
List Price £77.95 ex VAT
Your Price (ex VAT)
£77.95
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £77.95
Trade pricing is personalised to your account

Manufacturer Lead Time

£77.95

Why Choose the ABB TZP309 TwinLine Touch Guard?

The ABB TZP309 is a genuine TwinLine touch guard designed to provide internal protection against accidental contact with electrical equipment inside compatible ABB distribution cabinets. Configured for 3 field widths (3 PW) and 9 grid units (9 GU), it provides purpose-designed touch protection for the corresponding TwinLine enclosure format.

Manufactured from durable plastic, the TZP309 measures 1350 mm high × 750 mm wide × 30 mm deep. It is intended for installations incorporating compatible meter fields, distribution fields, combination sets or CombiLine-M modules, providing a coordinated protective barrier within the cabinet.

The TZP309 is supplied unmounted and is designed for compatible TwinLine TW/L/G309 cabinets. For earthed cabinets the appropriate touch guard is ordered separately as an accessory, while touch protection is included within the scope of delivery of applicable double-insulated cabinet configurations.

Key Advantages

  • Genuine ABB TwinLine touch guard for compatible electrical distribution cabinets.
  • Provides an internal barrier to help prevent accidental contact with installed electrical equipment.
  • Designed specifically for 3 PW width and 9 GU height configurations.
  • Suitable for compatible meter fields, distribution fields, combination sets and CombiLine-M modules.
  • Durable and lightweight plastic construction.
  • Purpose-designed for compatible TwinLine TW/L/G309 cabinets.

Key Features

  • ABB TZP309 internal touch-protection guard.
  • Part of the ABB TwinLine enclosure accessory system.
  • 3 field widths (3 PW).
  • 9 grid units (9 GU).
  • 5 OH construction height.
  • Designed for the corresponding nominal 1400 mm cabinet-height configuration.
  • Manufactured from plastic.
  • Product dimensions of 1350 × 750 × 30 mm.
  • Designed for compatible meter and distribution fields.
  • Suitable for combination sets and CombiLine-M modules.
  • Supplied unmounted for installation during cabinet assembly.
  • Compatible with applicable TwinLine TW309, TL309 and TG309 cabinets.

Reliable Internal Touch Protection for TwinLine Cabinets

Touch protection provides an additional internal barrier between users and electrical equipment installed within a distribution cabinet. The ABB TZP309 is dimensioned specifically around the modular layout of compatible TwinLine cabinets, helping panel builders create an organised installation while reducing the risk of accidental contact with internal electrical components.

For earthed TwinLine cabinet configurations, the appropriate touch guard is selected according to field width and grid height. The TZP309 covers a 3 PW, 9 GU configuration and is suitable for installations incorporating compatible ABB meter and distribution fields, combination sets or CombiLine-M modules.

Typical Applications

  • ABB TwinLine electrical distribution cabinets.
  • Compatible TW309, TL309 and TG309 enclosure configurations.
  • Low-voltage electrical distribution boards.
  • Meter and distribution field installations.
  • ABB CombiLine-M modular assemblies.
  • Electrical cabinet assembly, upgrading and refurbishment.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Door / Cover / Partition
Product Series S&J TwinLine
Series TwinLine
ABB order code 2CPX010644R9999
Product type Touch guard / touch protection
Product group DESUJ Sub Distribution
Accessory type Internal enclosure touch protection
Field width 3 PW
Grid height 9 GU
Construction height 5 OH
Nominal cabinet height 1400 mm
Material Plastic
Dimensions (H × W × D) 1350 × 750 × 30 mm
Installation condition Unmounted
Compatibility TwinLine TW/L/G309 cabinets
Suitable equipment systems Meter fields, distribution fields, combination sets and CombiLine-M modules
Packaging quantity 1 piece
EAN / GTIN 4011617106449
Country of origin Germany
Customs tariff number 85472000

Frequently Asked Questions

What is the ABB TZP309 used for?

The ABB TZP309 is an internal touch guard designed to provide a protective barrier against accidental contact with electrical equipment inside compatible TwinLine distribution cabinets.

What size configuration is the TZP309 designed for?

The TZP309 is designed for a 3 PW field width and 9 GU grid height, corresponding to the applicable nominal 1400 mm-high TwinLine cabinet configuration.

Which ABB cabinets are compatible with the TZP309?

The TZP309 is designed for compatible ABB TwinLine TW/L/G309 cabinets.

What are the dimensions of the ABB TZP309?

The TZP309 measures 1350 mm high × 750 mm wide × 30 mm deep.

Can the TZP309 be used with ABB CombiLine-M modules?

Yes. The TZP309 is intended for compatible installations incorporating meter fields, distribution fields, combination sets or CombiLine-M modules.

Genuine ABB TwinLine Touch Protection

The ABB TZP309 provides purpose-designed internal touch protection for compatible 3 PW, 9 GU TwinLine cabinets, supporting safe, organised and professional low-voltage distribution assemblies.
