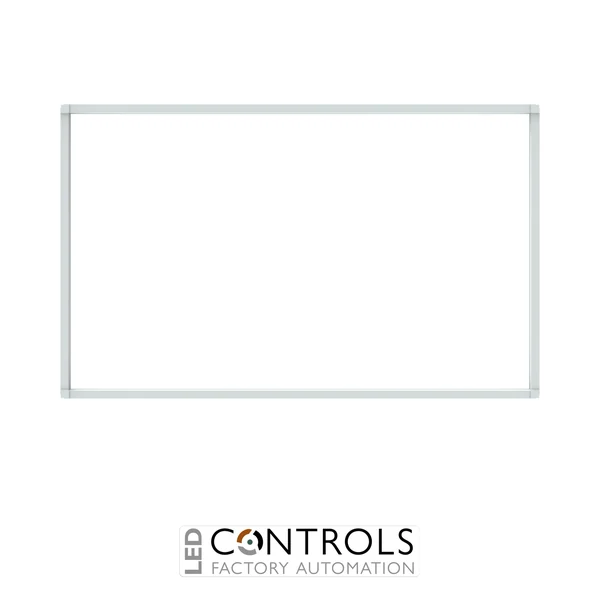

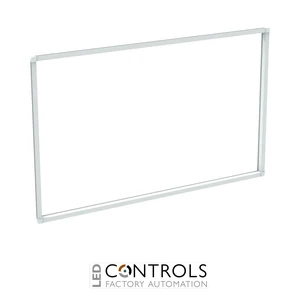

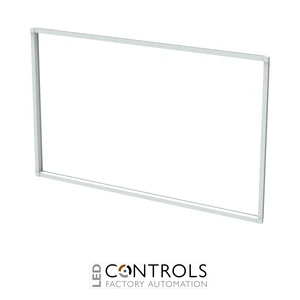

2CPX010654R9999 ABB TZP505 Touch Guard 5PW 5GU

2CPX010654R9999 ABB TZP505 Touch Guard 5PW 5GU

ABB TZP505 is an unmounted 5 PW by 5 GU touch guard designed for compatible ABB TwinLine distribution cabinets and modular sub-distribution assemblies.

SKU: 2CPX010654R9999Alt SKU: TZP505MPN: 2CPX010654R9999
Price
List Price £73.27 ex VAT
Your Price (ex VAT)
£73.27
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £73.27
Trade pricing is personalised to your account

Manufacturer Lead Time

£73.27

Why Choose the ABB TZP505 Touch Guard?

The ABB TZP505 is a dedicated touch guard for ABB TwinLine distribution cabinets, designed to provide additional protection against accidental contact with internal electrical components. As part of ABB’s sub-distribution accessory range, it is intended for use with compatible TwinLine cabinet configurations and modular distribution assemblies.

The TZP505 is supplied as an unmounted touch protection accessory and is suitable for cabinet assemblies using meter and distribution fields, combination sets or CombiLine-M modules. Its purpose is to support safe, orderly cabinet construction while maintaining compatibility with ABB’s established TwinLine enclosure system.

With a configuration of 5 PW field width and 5 GU height, the TZP505 is matched to corresponding ABB TwinLine cabinet formats and carries ABB order code 2CPX010654R9999.

Key Advantages

  • Designed specifically for ABB TwinLine distribution cabinets.
  • Provides touch protection for internal electrical assemblies.
  • 5 PW field width for compatible wide cabinet layouts.
  • 5 GU height suited to corresponding TwinLine cabinet configurations.
  • Suitable for cabinet builds using meter fields, distribution fields and CombiLine-M modules.
  • ABB-manufactured accessory for consistent fit within supported enclosure systems.

Key Features

  • ABB TZP touch guard range.
  • Model TZP505.
  • 5 PW width.
  • 5 GU height.
  • Supplied as an unmounted touch guard.
  • Compatible with the ABB TwinLine cabinet series.
  • Suitable for configurations using meter and distribution fields, combination sets and CombiLine-M modules.
  • ABB order code 2CPX010654R9999.

Reliable Touch Protection for Distribution Cabinets

Touch guards are used within electrical distribution enclosures to help reduce the risk of accidental contact with live or potentially hazardous internal components. Correctly matched touch protection also supports a structured cabinet layout and complements the enclosure’s overall protective design.

The ABB TZP505 is developed for the TwinLine system and is dimensioned for a 5 PW by 5 GU cabinet configuration. Its compatibility with ABB distribution field systems makes it suitable for both new cabinet construction and accessory replacement within supported TwinLine assemblies.

Typical Applications

  • ABB TwinLine wall-mounted distribution cabinets.
  • ABB TwinLine floor-standing distribution cabinets.
  • Meter and distribution field installations.
  • CombiLine-M modular distribution assemblies.
  • Combination-set cabinet configurations.
  • Low-voltage sub-distribution panel construction.

Technical Specifications

Tick the specs you need, then view products that match.

Product Series S&J TwinLine
Device Type Door / Cover / Partition
Series TwinLine
Product type Touch guard / touch protection accessory
ABB order code 2CPX010654R9999
Field width 5 PW
Height 5 GU
Mounting state Unmounted
Compatibility ABB TwinLine cabinets
Application Meter and distribution field assemblies, combination sets and CombiLine-M modules
Product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB TZP505 used for?

The ABB TZP505 is a touch protection accessory used inside compatible TwinLine distribution cabinets to help protect against accidental contact with internal electrical components.

What size is the TZP505?

The TZP505 is designed for a cabinet configuration of 5 PW field width and 5 GU height.

Is the ABB TZP505 supplied mounted?

No. The TZP505 is supplied as an unmounted touch guard for installation in a compatible ABB TwinLine cabinet.

Which ABB cabinet range is the TZP505 designed for?

The TZP505 is designed for the ABB TwinLine cabinet series.

What is the ABB order code for the TZP505?

The ABB order code for the TZP505 is 2CPX010654R9999.

Trusted by Electrical Panel Builders

ABB TwinLine accessories are widely used by panel builders, electrical contractors and distribution-system integrators to create structured, compatible and professionally protected low-voltage cabinet assemblies.
