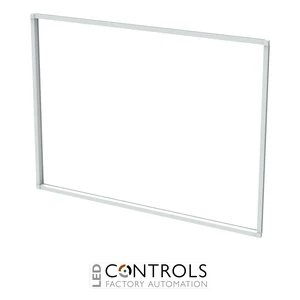

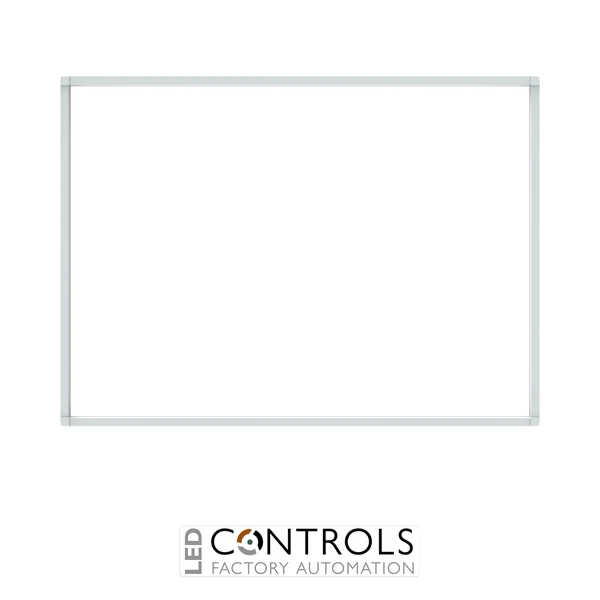

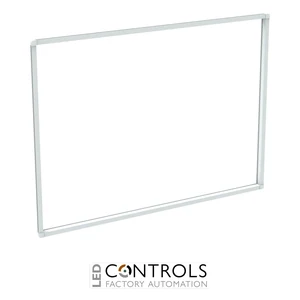

Why Choose the ABB TZP506 Touch Guard?
The ABB TZP506 is a dedicated touch guard for ABB TwinLine distribution cabinets, designed to provide additional protection against accidental contact with internal electrical components. As part of ABB’s sub-distribution accessory range, it is intended for compatible TwinLine cabinet configurations used in professional low-voltage distribution installations.
The TZP506 is supplied as an unmounted touch protection accessory and is designed for installations incorporating meter and distribution fields, combination sets or CombiLine-M modules. It provides a manufacturer-matched solution for completing the internal touch protection of suitable ABB distribution cabinet assemblies.
With a configuration of 5 PW field width and 6 GU height, the TZP506 is suitable for corresponding ABB TwinLine cabinet formats, including compatible TwinLine TW/L/G506 wall cabinets. The product carries ABB order code 2CPX010655R9999.
Key Advantages
- Designed specifically for ABB TwinLine distribution cabinets.
- Provides touch protection for internal electrical assemblies.
- 5 PW field width for compatible wide cabinet configurations.
- 6 GU height matched to corresponding TwinLine enclosures.
- Suitable for installations with meter and distribution fields, combination sets or CombiLine-M modules.
- ABB-manufactured accessory for consistent integration with supported cabinet systems.
Key Features
- ABB TZP touch guard range.
- Model TZP506.
- 5 PW width.
- 6 GU height.
- Supplied as an unmounted touch guard.
- Designed for the ABB TwinLine series.
- Suitable for compatible TwinLine TW/L/G506 wall cabinets.
- Suitable for meter fields, distribution fields, combination sets and CombiLine-M modules.
- ABB order code 2CPX010655R9999.
Reliable Touch Protection for Distribution Cabinets
Touch guards form part of the protective arrangement within electrical distribution cabinets, helping reduce the possibility of accidental contact with internal electrical components. Using correctly matched protection components also supports an orderly cabinet layout and maintains compatibility between the enclosure and its internal distribution equipment.
The ABB TZP506 is dimensioned for a 5 PW by 6 GU TwinLine configuration and is supplied unmounted for installation during cabinet assembly. It is particularly suited to professional sub-distribution systems incorporating ABB meter and distribution fields or CombiLine-M modular equipment.
Typical Applications
- ABB TwinLine distribution cabinets.
- Compatible TwinLine TW/L/G506 wall cabinets.
- Meter and distribution field installations.
- CombiLine-M modular distribution assemblies.
- Combination-set cabinet configurations.
- Low-voltage sub-distribution panel construction.
