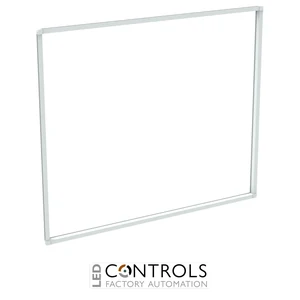

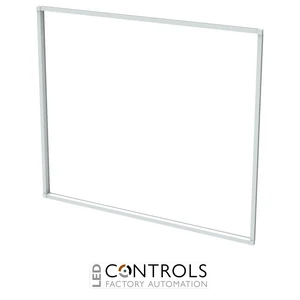

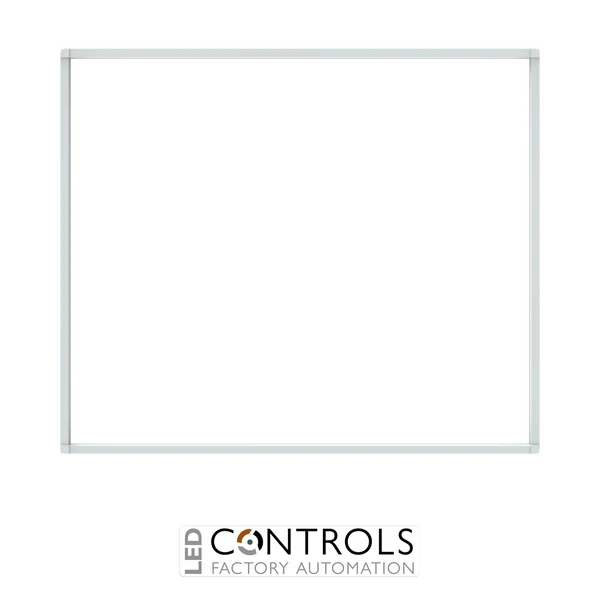

Why Choose the ABB TZP507 TwinLine Touch Guard?
The ABB TZP507 is a genuine TwinLine touch guard designed to provide internal protection against accidental contact with electrical equipment inside compatible ABB distribution cabinets. Configured for 5 field widths (5 PW) and 7 grid units (7 GU), it provides purpose-designed touch protection for wide TwinLine cabinet assemblies.
Manufactured from plastic, the TZP507 is intended for installations incorporating compatible meter fields, distribution fields, combination sets or CombiLine-M modules. Its five-field-wide format provides coordinated coverage across larger distribution assemblies while maintaining the modular construction principles of the ABB TwinLine system.
The TZP507 is supplied unmounted and is designed for compatible TwinLine TW/L/G507 wall-mounted cabinets. For earthed cabinet configurations the appropriate touch guard is ordered separately, while touch protection is included within the scope of delivery of applicable double-insulated cabinets.
Key Advantages
- Genuine ABB TwinLine touch guard for compatible electrical distribution cabinets.
- Provides an internal barrier to help protect against accidental contact with electrical equipment.
- Designed specifically for 5 PW width and 7 GU height configurations.
- Suitable for compatible meter fields, distribution fields, combination sets and CombiLine-M modules.
- Durable and lightweight plastic construction.
- Purpose-designed for compatible TwinLine TW/L/G507 wall-mounted cabinets.
Key Features
- ABB TZP507 internal touch-protection guard.
- Part of the ABB TwinLine enclosure accessory system.
- 5 field widths (5 PW).
- 7 grid units (7 GU).
- Designed for the corresponding 1100 mm cabinet-height configuration.
- Manufactured from plastic.
- Product net width of 1250 mm.
- Product net height of 1050 mm.
- Designed for compatible meter and distribution fields.
- Suitable for combination sets and CombiLine-M modules.
- Supplied unmounted for installation during cabinet assembly.
- Compatible with applicable TwinLine TW507, TL507 and TG507 cabinets.
Reliable Internal Touch Protection for TwinLine Cabinets
Touch protection creates an additional internal barrier between users and electrical equipment installed within a distribution cabinet. The ABB TZP507 is dimensioned specifically for the modular layout of compatible five-field-wide TwinLine cabinets, helping panel builders create an organised and professionally protected internal assembly.
For earthed TwinLine cabinet configurations, the appropriate touch guard is selected according to field width and grid height. The TZP507 covers the 5 PW, 7 GU format and can be used with compatible ABB meter and distribution fields, combination sets or CombiLine-M modules, while applicable double-insulated cabinets include their touch protection within the cabinet's scope of delivery.
Typical Applications
- ABB TwinLine wall-mounted electrical distribution cabinets.
- Compatible TW507, TL507 and TG507 enclosure configurations.
- Low-voltage electrical distribution boards.
- Wide five-field meter and distribution assemblies.
- ABB CombiLine-M modular installations.
- Commercial and industrial electrical distribution systems.
- Electrical cabinet assembly, upgrading and refurbishment.
