Why Choose the ABB TZP509 Touch Guard?
The ABB TZP509 is a purpose-designed touch guard for ABB TwinLine electrical enclosures. It provides an internal protective barrier for compatible low-voltage distribution assemblies, helping prevent unintended contact with installed electrical equipment while maintaining an organised and professional cabinet configuration.
Designed specifically for a 5-panel-width (5PW), 9-grid-unit (9GU) TwinLine arrangement, the TZP509 is supplied unmounted for use with compatible meter and distribution fields, combination sets or CombiLine-M modules. In fully insulated cabinets, touch protection is included in the cabinet scope of supply, while compatible earthed cabinets require the touch guard to be ordered separately.

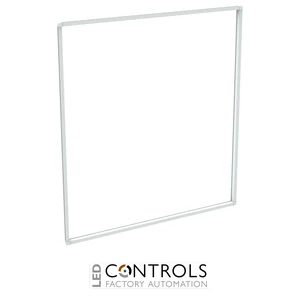

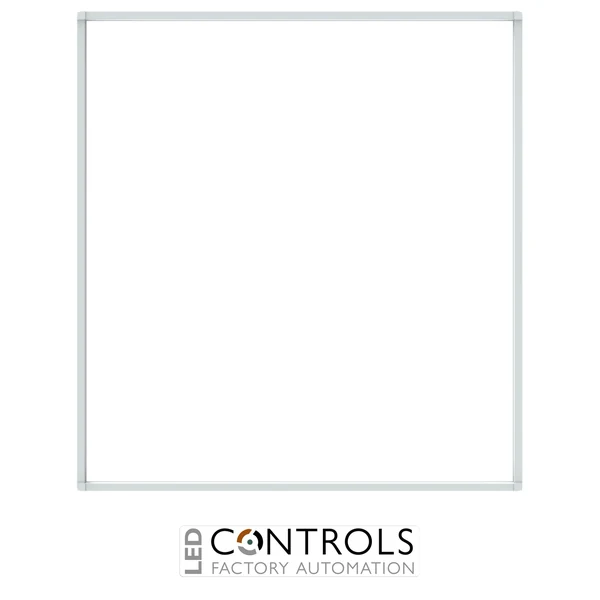

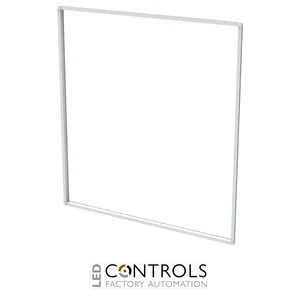

The TZP509 is manufactured from plastic and measures approximately 1397.5 mm high × 1297.5 mm wide × 30 mm deep. It is designed for compatible ABB TwinLine TW/L/G509 wall-mounted cabinets, providing a coordinated touch-protection solution for large professional sub-distribution assemblies.
Key Advantages
- Purpose-designed touch guard for ABB TwinLine enclosures.
- Configured specifically for 5PW and 9GU TwinLine arrangements.
- Provides an additional internal barrier against unintended contact with electrical equipment.
- Suitable for meter and distribution fields, combination sets and CombiLine-M modules.
- Designed for compatible TwinLine TW/L/G509 wall-mounted cabinets.
- Supplied unmounted for flexible enclosure assembly.
Key Features
- ABB TZP509 TwinLine accessory.
- Touch guard / internal protective barrier.
- 5PW (five panel widths) configuration.
- 9GU (nine grid units) configuration.
- Plastic construction.
- 1397.5 mm high × 1297.5 mm wide × 30 mm deep.
- Designed for compatible ABB TwinLine electrical enclosures.
- Suitable for meter and distribution fields.
- Suitable for combination sets and CombiLine-M modules.
- Supplied unmounted.
- Separately ordered touch-protection accessory for compatible earthed cabinets.
Additional Internal Protection for TwinLine Assemblies
Touch guards provide a physical barrier within electrical distribution enclosures, helping separate accessible areas from installed electrical equipment. This supports structured internal panel construction and provides additional touch protection for appropriately configured low-voltage distribution assemblies.
The ABB TZP509 is specifically configured for a 5PW 9GU TwinLine arrangement and is suitable for expansion with meter and distribution fields, combination sets or CombiLine-M modules. Its large-format design is coordinated with compatible TW/L/G509 cabinets for professional TwinLine installations.
Typical Applications
- ABB TwinLine TW/L/G509 electrical enclosures.
- Low-voltage sub-distribution boards.
- Meter and distribution field assemblies.
- CombiLine-M modular installations.
- Combination-set enclosure configurations.
- Commercial and industrial electrical distribution systems.
